BAXTRAN BR15 WEIGHT INDICATOR WITH BATTERY

Description

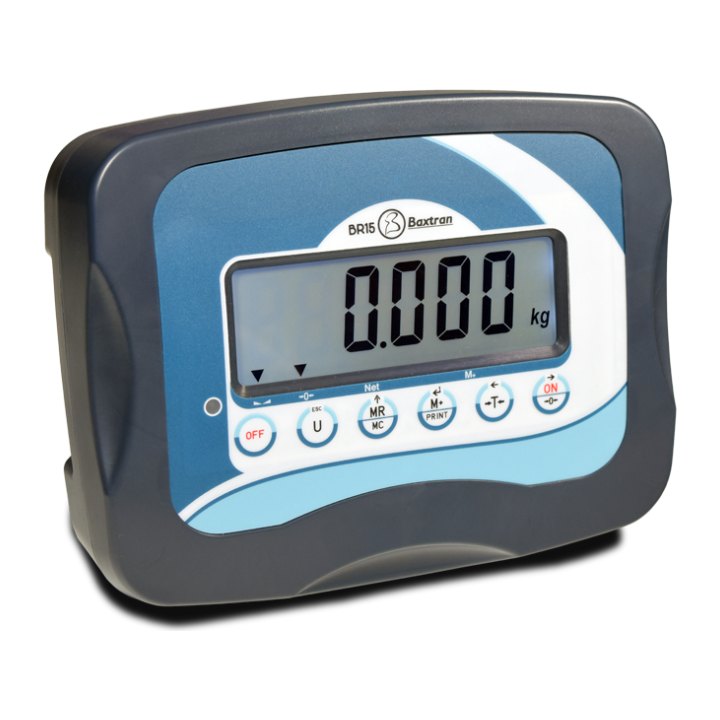

Baxtran BR15 weight indicator: ABS weight-tare indicator with 30 mm LCD, battery up to 160 h and RS232 output

The BR15 is the weight-tare indicator used on ZFZ, ZFN, TMZ or TZ scales: IP54 ABS housing, 30 mm backlit LCD with three backlight modes and sealed 5-key keypad.

Its 6 V/4 Ah battery lasts about 120 hours with backlight and 160 without. It handles up to 4 × 350 Ω or 8 × 700 Ω load cells, has an RS232 output for PC or printer and mounts on a column or wall.

Accumulation, piece counting, limit checking and four hold modes, including moving animal.

Construction and standard equipment

• ABS housing, IP54
• 6-digit 30 mm backlit LCD
• 6 V/4 Ah battery (120-160 h)
• RS232 output; column bracket and wall mounting

Functions

Zero, tare, gross/net, accumulation and totalisation, piece counting, limit checkweighing with visual and audible alarm, four hold modes (including moving-animal weighing and peak value), three conversion speeds and configurable gravity. Units kg, t, g and lb.

Versions and Baxtran references

Applications

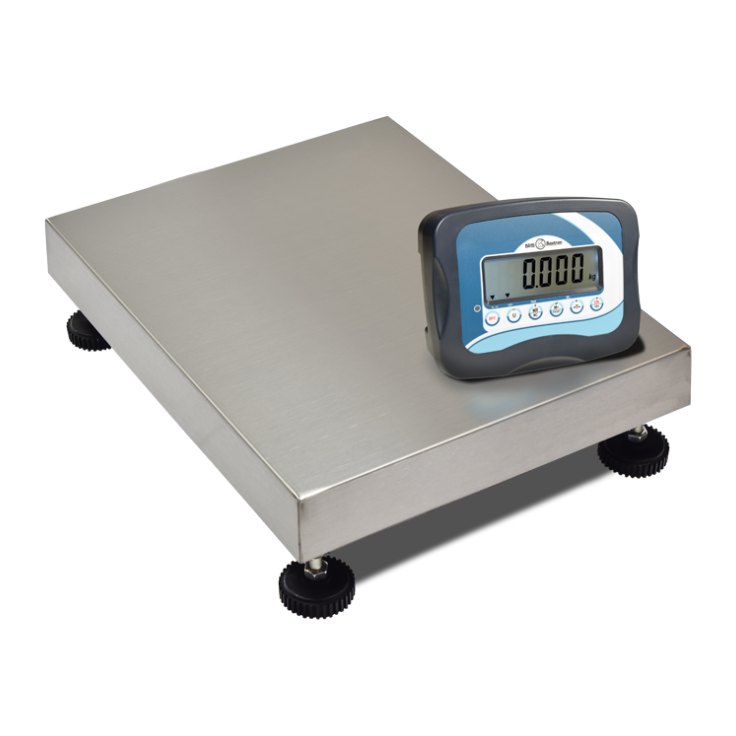

To build or upgrade scales with any compatible weighing platform: food industry, warehouses, logistics and workshops.

See all weight indicators. José Bernad is an authorised Baxtran distributor: request your no-obligation quote.
