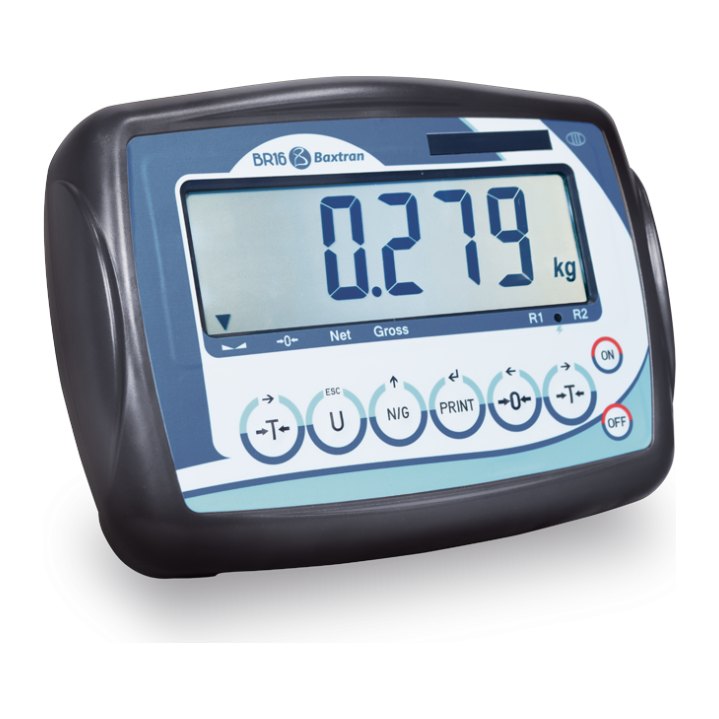

BAXTRAN BR16 LEGAL-FOR-TRADE WEIGHT INDICATOR, 40 MM LCD

Description

Baxtran BR16 legal-for-trade weight indicator: legal-for-trade weight-tare indicator with 40 mm LCD and battery up to 320 h

The BR16 is an ABS weight-tare indicator with a large LCD (40 mm digits) and approval to 3,000 divisions OIML class III: it is the indicator of NFZ, NFN and TMN scales.

6 V/4 Ah battery giving 80 hours with backlight and RS232 on, and up to 320 hours with them off. Handles up to 4 × 350 Ω or 8 × 700 Ω load cells; optional RS232 output with DB9 connector.

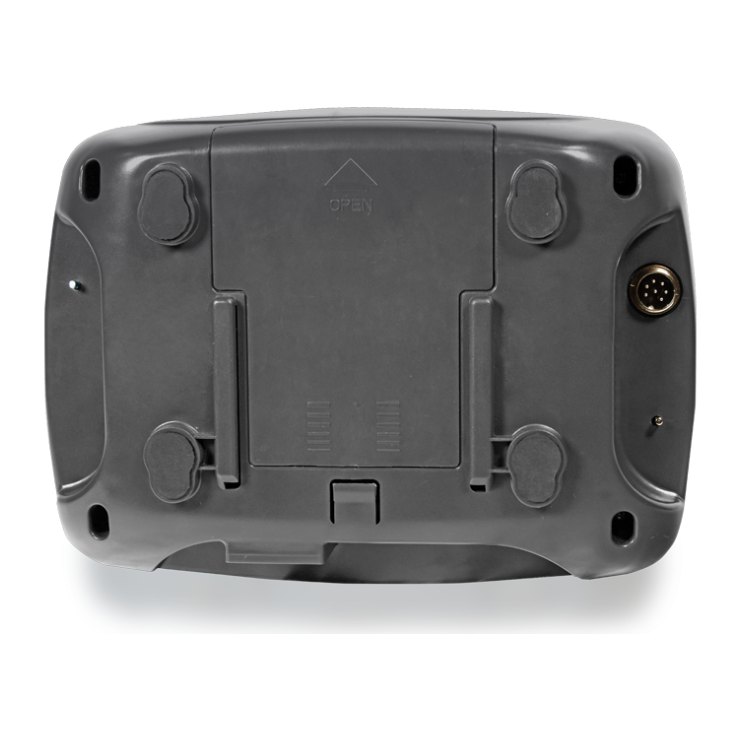

Column or wall mounting. The unit (kg, t or g) and single or multi-range are chosen when ordering.

Construction and standard equipment

• ABS housing, IP54
• 6-digit 40 mm backlit LCD
• 6 V/4 Ah battery (80-320 h)
• Optional RS232 (DB9); column or wall

Functions

Zero, tare, gross/net, accumulation and totalisation, piece counting, weight and count limit checking with visual and audible alarm, four hold modes and three conversion speeds.

Standards

Approval to 3,000 divisions OIML class III and CE certification.

Versions and Baxtran references

Applications

To build or upgrade scales with any compatible weighing platform: food industry, warehouses, logistics and workshops.

See all weight indicators. José Bernad is an authorised Baxtran distributor: request your no-obligation quote.
