Dibal D-540 pole retail scale: price-computing retail scale with receipt printer, backlit LCD display and memory for 10,000 PLUs.
Request your quote stating the version and weighing range.
Price on request
Dibal D-540 pole retail scale: price-computing retail scale with receipt printer, backlit LCD display and memory for 10,000 PLUs.
Request your quote stating the version and weighing range.
Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.

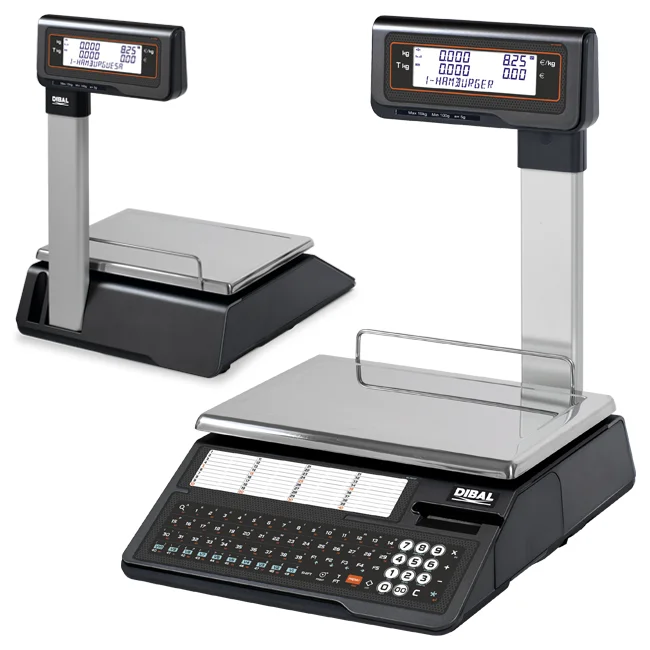

The Dibal D-540 pole is a price-computing electronic scale from the D-500 range, with a receipt printer, backlit segment LCD for seller and customer and memory for 10,000 PLUs.
The pole raises the displays so customers can see weight, price and total without bending down, on the same compact base as the flat version.
The dots (··) in the reference stand for the code of the chosen weighing range: 15 kg / 5 g as standard; optional 30 kg / 10 g, 6/15 kg (2/5 g) or 15/30 kg (5/10 g); 3,000 divisions.
See all our commercial scales.
José Bernad is a Dibal distributor with its own technical service: request a no-obligation quote stating the version and weighing range you need.
| Weight | 10 kg |
|---|---|
| Model | D-540 pole |
| Brand | Dibal |
| Range | D-500 |
| Type | Price-computing retail scale |
| Format | Pole |
| Display | Backlit segment LCD (150.2 × 43.4 mm) for seller and customer |
| Printer | Receipt printer; 54 mm thermal, 100 mm/s |
| Memory | 10,000 PLUs; 40 × 2 + 9 × 2 direct PLUs; 20 sellers |
| Weighing range and divisions | 15 kg / 5 g as standard; optional 30 kg / 10 g, 6/15 kg (2/5 g) or 15/30 kg (5/10 g); 3,000 divisions |
| Construction | High-strength ABS; stainless steel pan |
| Pan | 360 × 260 mm |
| Connectivity | Ethernet TCP/IP; RS-232 for scanner; optional USB and Wi-Fi |
| Power supply | 110-230 VAC; rechargeable internal battery (up to 52 h) |
| Dimensions (see drawing) | A 370 · B 450 · C 140 · D 515 mm |
| Packed weight | 10.0 kg |
| Dibal references | 7D001T2LGE··; 7D011T2LGE·· (battery) |
