Dibal D-545 dual-body retail scale: price-computing retail scale with label printer (also prints receipts), backlit LCD display and memory for 10,000 PLUs.
Request your quote stating the version and weighing range.
DIBAL D-545 DUAL-BODY RETAIL SCALE, LABELS
Price on request
Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.
Description

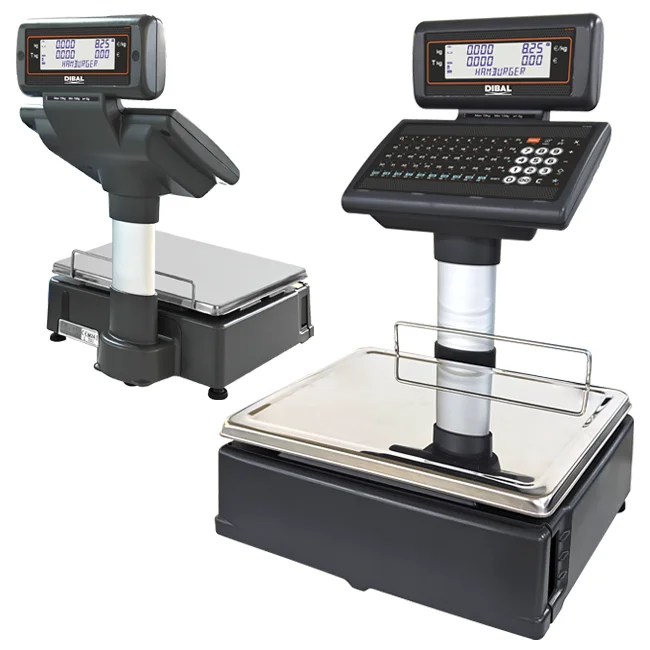

Dibal D-545 dual-body retail scale with label printer
The Dibal D-545 dual-body is a price-computing electronic scale from the D-500 range, with a label printer (also prints receipts), backlit segment LCD for seller and customer and memory for 10,000 PLUs.
Dual-body counter format with a label printer that also prints receipts by changing the roll and working mode.
Advantages
- Mechanical keyboard with up to 20 sellers, 99 direct PLUs and 999 by quick code.
- Large memory: 10,000 PLUs with offer price, weight-band pricing, free texts and ingredients, searchable by number or name.
- Sales reports by item, seller or time slot, plus programmable macros for repetitive tasks.
- Networking: up to 10 scales per section, Ethernet PC connection and web access to each scale (DWS).
- Functional, sturdy design, with high-strength ABS housing and stainless pan.
Versions and references
- 7D051K2LGE··: D-545 dual-body, mains
The dots (··) in the reference stand for the code of the chosen weighing range: 15 kg / 5 g as standard; optional 30 kg / 10 g, 6/15 kg (2/5 g) or 15/30 kg (5/10 g); 3,000 divisions.
See all our commercial scales.
José Bernad is a Dibal distributor with its own technical service: request a no-obligation quote stating the version and weighing range you need.
Specifications
| Weight | 15 kg |
|---|---|
| Model | D-545 dual-body |
| Brand | Dibal |
| Range | D-500 |
| Type | Price-computing retail scale |
| Format | Dual-body |
| Display | Backlit segment LCD (150.2 × 43.4 mm) for seller and customer; optional 7" or graphic |
| Printer | Label printer (also prints receipts); 54 mm thermal, 100 mm/s |
| Memory | 10,000 PLUs; 40 × 2 + 9 × 2 direct PLUs; 20 sellers |
| Weighing range and divisions | 15 kg / 5 g as standard; optional 30 kg / 10 g, 6/15 kg (2/5 g) or 15/30 kg (5/10 g); 3,000 divisions |
| Construction | High-strength ABS; stainless steel pan |
| Pan | 360 × 280 mm |
| Connectivity | Ethernet TCP/IP; RS-232 for scanner; optional USB and Wi-Fi |
| Power supply | 110-230 VAC |
| Dimensions (see drawing) | A 375 · B 470 · C 547 / 580 (display 7" optional) mm |
| Packed weight | 15.0 kg |
| Dibal references | 7D051K2LGE·· |
