STAINLESS STEEL FLOOR DRAIN 20×20 – BOTTOM OUTLET

Description

Stainless steel floor drain 20×20 with bottom (vertical) outlet

Stainless steel floor drains for food processing rooms ensure hygienic drainage of cleaning water and process liquids in meat, fish and food production rooms.

This 20×20 siphonic floor drain is made of AISI 304 stainless steel, measures 200 × 200 mm with a height of 120 mm and has a bottom (vertical) outlet with a Ø 50.8 mm pipe.

Technical specifications

• Material: AISI 304 stainless steel
• Dimensions (A × P): 200 × 200 mm
• Height (H): 120 mm
• Outlet: bottom (vertical) outlet
• Outlet pipe diameter: Ø 50.8 mm
• Filter basket: not included
• Channel inlets: none

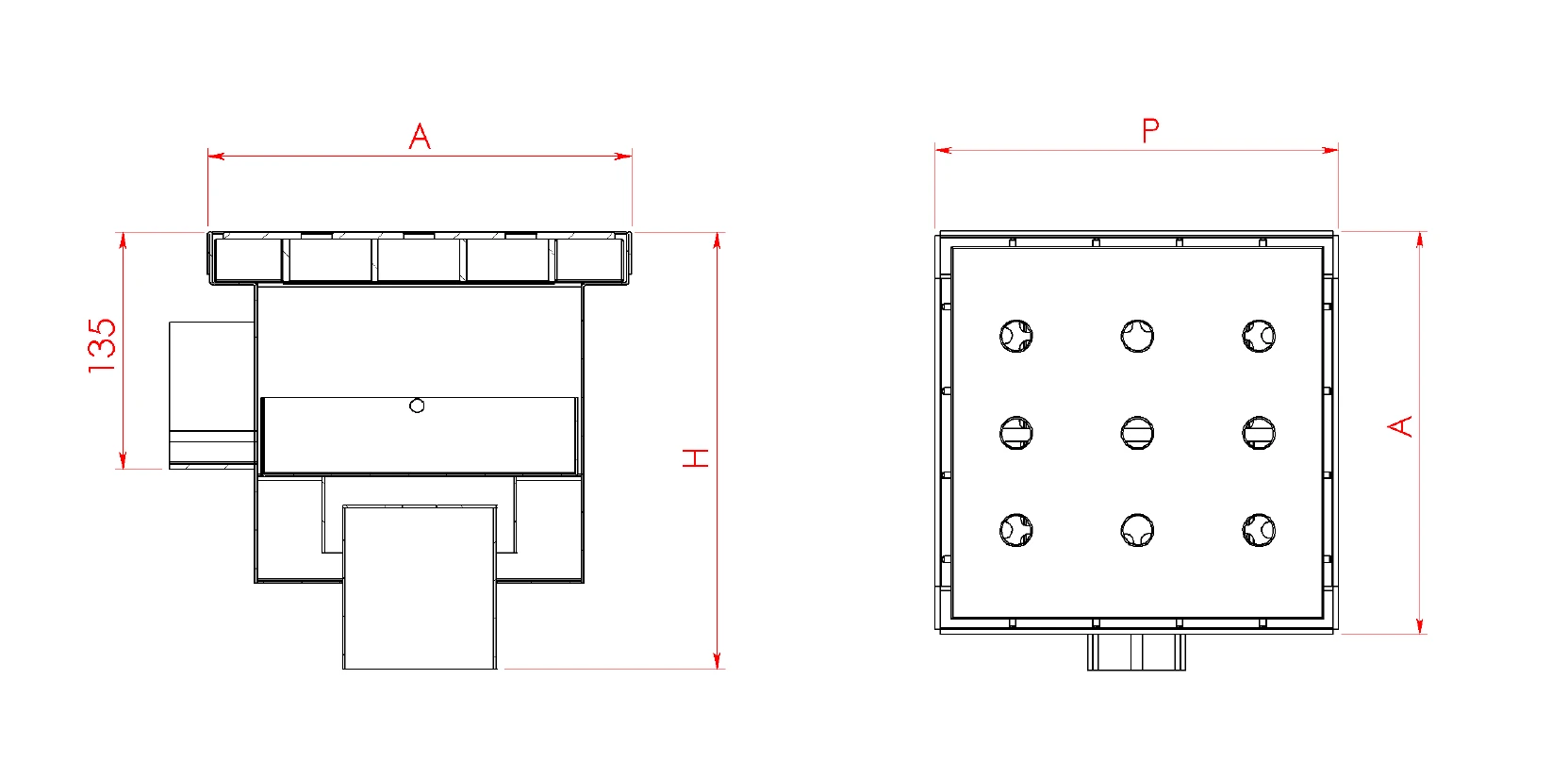

Other sizes can be studied according to the needs of the installation. See the dimension drawing in the image gallery.

Advantages

• ✔ AISI 304 stainless steel, hygienic and durable
• ✔ Bottom outlet with Ø 50.8 mm pipe
• ✔ Depending on size, can be installed with drainage channels

Applications

Collection of waste water and cleaning water in cutting rooms, food workshops, slaughterhouses and the fish and food industry. See all our stainless steel floor drains.

Frequently asked questions

What size floor drain do I need for a cutting room?

The size of the floor drain depends on the flow of cleaning water and the area of the room. For medium-sized cutting rooms, a 25×25 cm drain is usually the recommended minimum. In large rooms with intensive cleaning, the 30×30 cm drain ensures fast drainage without puddles. As a general rule, cleaning water should not remain on the floor for more than a few seconds after the flow stops.
