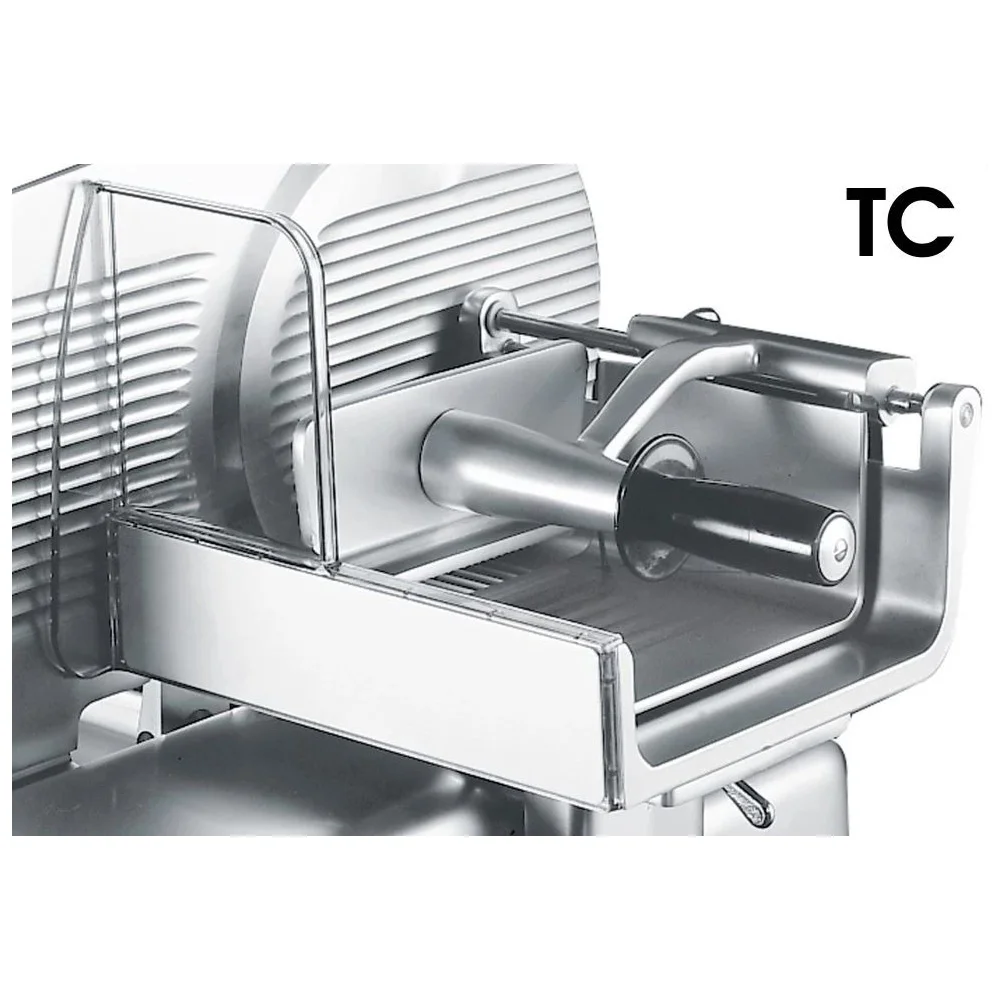

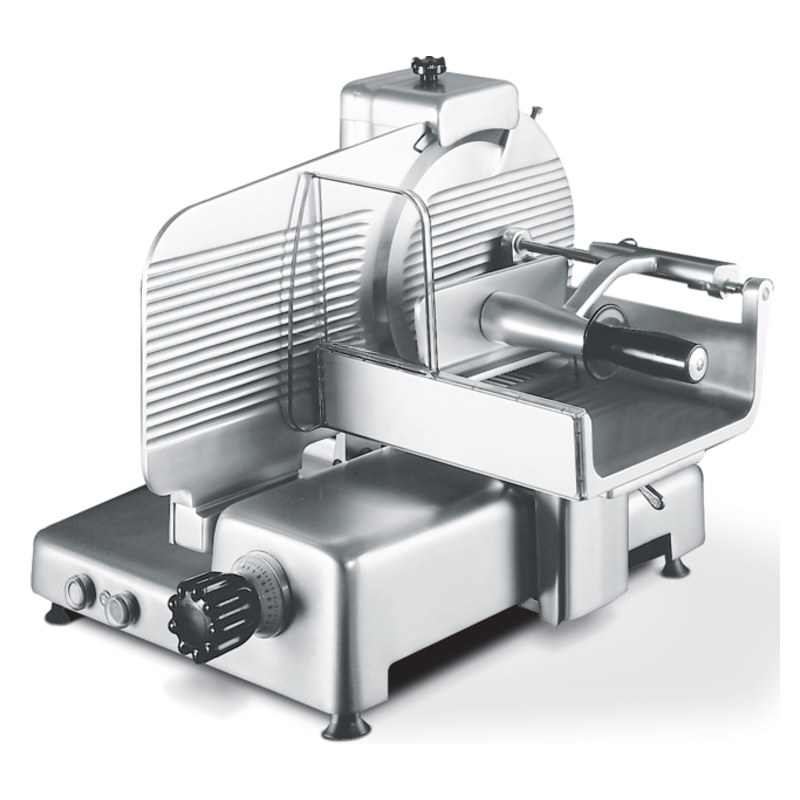

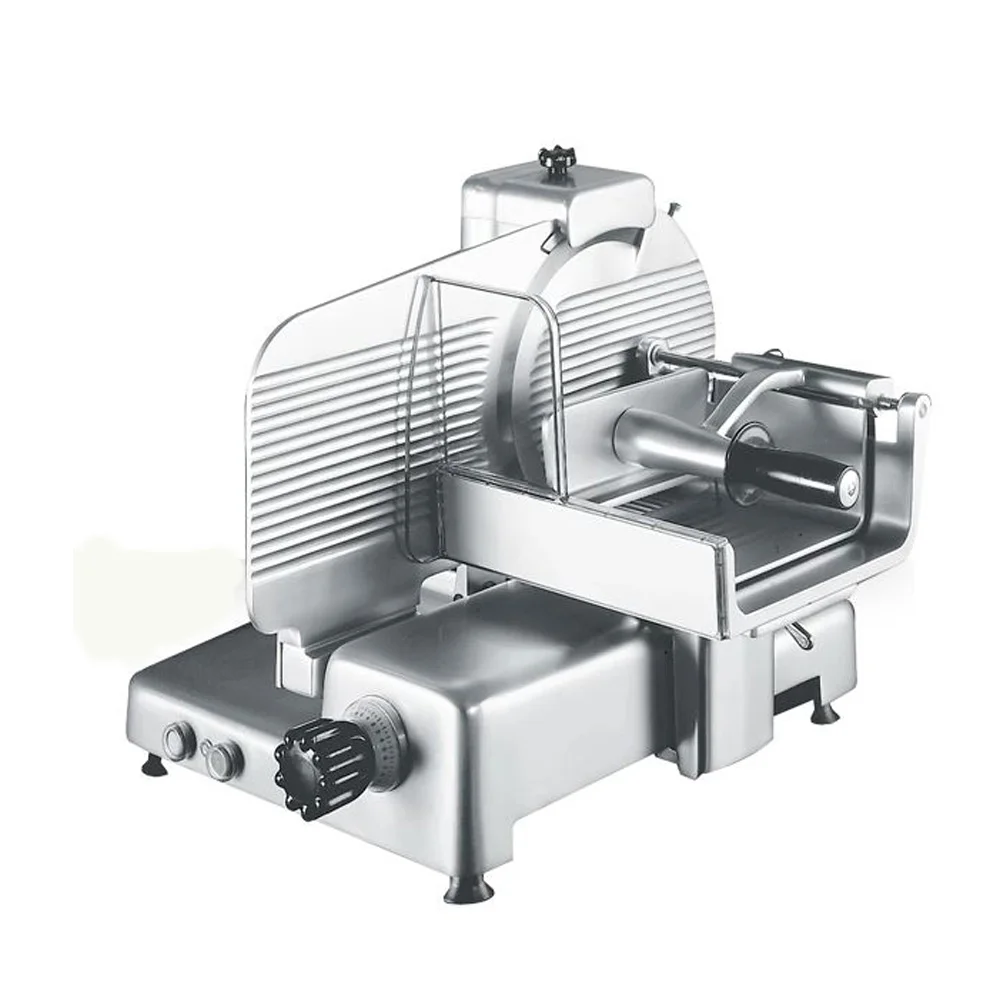

KOLOSSAL 300 VK TC SLICING MACHINE

Description

Standard equipment

• Gear transmission
• Built-in sharpener, available and easy to use
• Reduced loading height to reduce operator fatigue
• Aluminium tilting food pusher food plate with food pusher
• Mirror-polished aluminium surfaces and sliding grooves to reduce friction and simplify cleaning
• Removable sharpener, blade guard and slice thickness adjuster for fast and thorough cleaning
• Conforms to European directives 2006/42/EC (machinery directive); 1935/2004/EC (food materials directive); 10/2011 (food plastics directive); 2006/95/EC (low voltage directive); 2011/65/EU (RoHS directive); EN 1974:1998 (slicers – hygiene and safety requirements); EN 60204-1 (machine safety); EN 55014 (electromagnetic compatibility).

Technical data – 300 VK TC

Overall dimensions 670 x 547 x 480 mm
Support surface 521 x 418 mm
Working area 680 x 597 x 515 mm
Blade diameter 300 mm
Blade speed 200 g/min
Slice thickness 0 to 24 mm
Electrical protection IPX3
Net weight 43 kg
Carriage stroke 300 mm
Electrical characteristics 220-230V / 340W single-phase AC;
220-230V, 380-400V / 230W three-phase AC;
120V / 60Hz / 340W single-phase AC.
Cutting capacity Ø 210 mm – 250 x 190 mm
