DIBAL LP5000 TOUCHSCREEN MANUAL LABELLER (LP-5400 IV)

Description

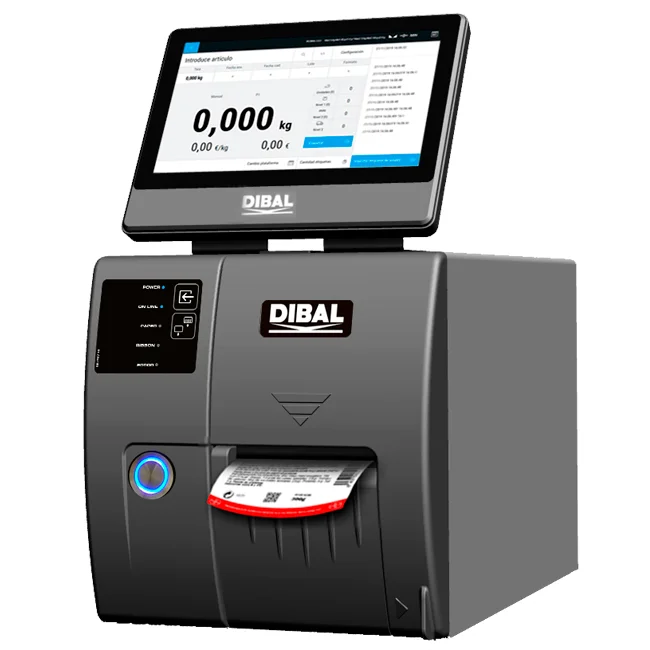

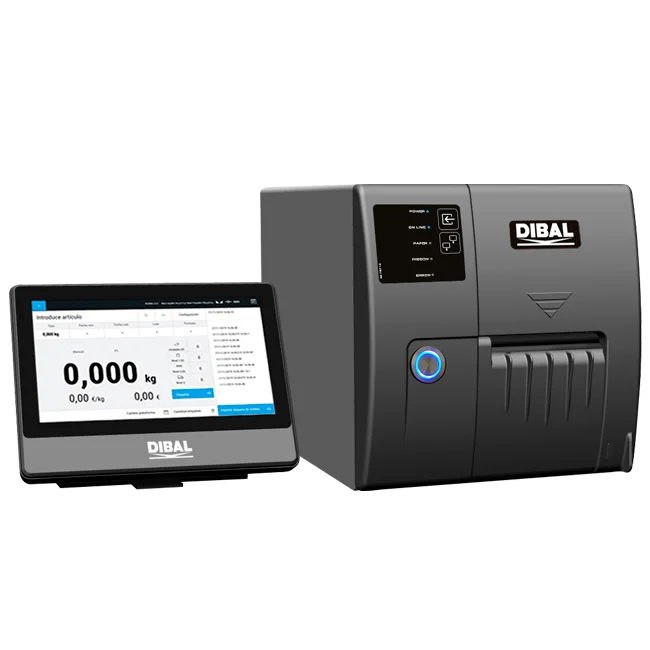

Dibal LP5000 manual labeller with touchscreen and 4″ labels

The Dibal LP5000 (LP-5400 IV version) is a manual labeller with a 10.1″ touchscreen that connects to weighing platforms and prints labels up to 100 × 500 mm with its 4″ print head at 250 mm/s.

Its most practical feature is the built-in graphic label designer: formats are created and changed on the machine itself. It handles fixed, glazing and cumulative tares, works in checkweigher mode and prints totals labels on up to 3 levels, so it suits workshops, packing rooms and frozen fish.

Advantages

• 10.1″ projected-capacitive touchscreen (optional 15″ resistive with stainless console).
• Direct thermal printing at 250 mm/s with long-life 4″ head; thermal transfer optional.
• Paper, polypropylene or perforated card labels, from 30 × 30 up to 100 × 500 mm.
• Connects to 1 platform of up to 16 load cells (optional 2nd platform) and to ZPL printers for totals labels.
• Managed from any browser via the built-in web server, with Dibal API and Excel/CSV file exchange.

Versions and references

• 7L5Y1AUGY1··: LP5400 IV with weighing, 4″ head

Options on request: thermal transfer (ref. 497288A), 15″ resistive screen, 2nd platform, RAM upgrade to 8 GB and Wi-Fi.

See all our manual labellers.

José Bernad is a Dibal distributor with its own technical service: request a no-obligation quote stating the version you need.
