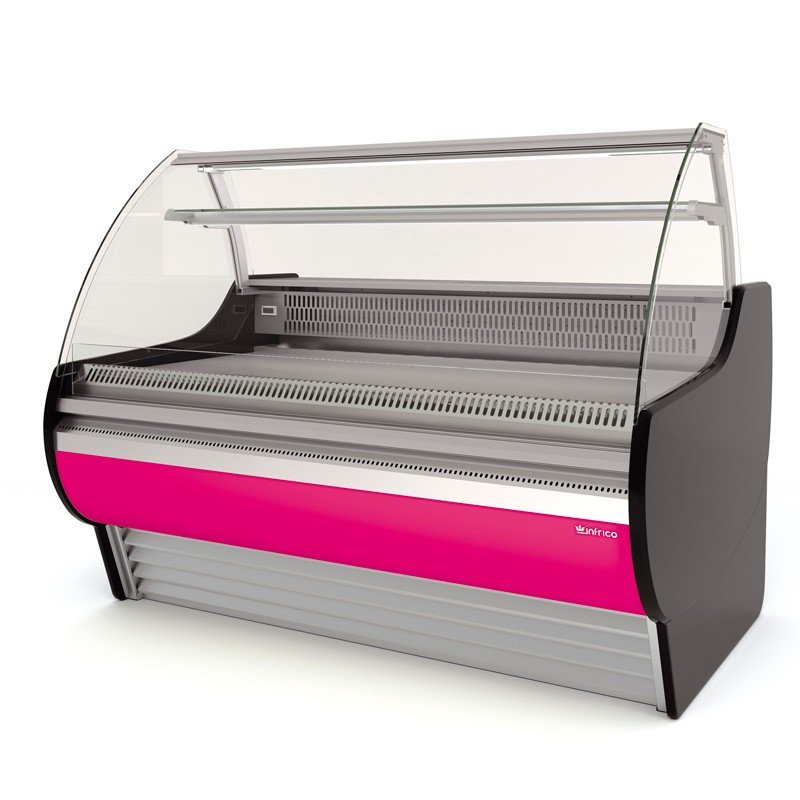

REFRIGERATED MODULAR DISPLAY CASE MADRID VMD9

Description

Refrigerated modular display case Madrid series VMD9 with laminated steel plate available in different colors and stainless steel worktop. Available with or without storage.

EXTERIOR
– Laminated steel plate
– AISI 304 18/10 stainless steel worktop
– Front opening curved tempered security glass
– Enamelled steel base
– Storage door opening 425×255
– DM lacqued decoration

INTERIOR
– AISI 304 18/10 exhibition area
– Upper profile LED lighting “Grolux” type
– LED lighting shelf “Grolux” type
– Modular line

INSULATION
– Free CFC’s high density (40kg/m3) polyurethane insulation
with low GWP & zero ODP effect

REFRIGERATION
– Forced air refrigeration system
– Stainless steel evaporative doble trays first by
gas second by electrical resistance
– Control of the final defrost temperature
– Climatic class 4

Sides: 30+30 mm
Voltage/Frequency: 230/50 V/Hz
Doors: 1
Shelves: 1
Compressor: 1/2
Consumption: 10,2 kWh/24h

Cooling Capacity: 817W
Automatic Defrost
Digital Control

Refrigerant: R-452

Power: 730W

Capacity: 131L

*Available colors:
Violet, Orange, Blue, Maroon, Yellow
Sky blue, Red, Beige, Dark Green
Pink, White, Pistachio

*Available with or without Storage

Measures: 938x1150x1290 mm
Temperature: 0ºC/+6ºC
