testo 770 clamp meter and power clamp
Price on request
Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.
Description
testo 770 clamp meter and power clamp

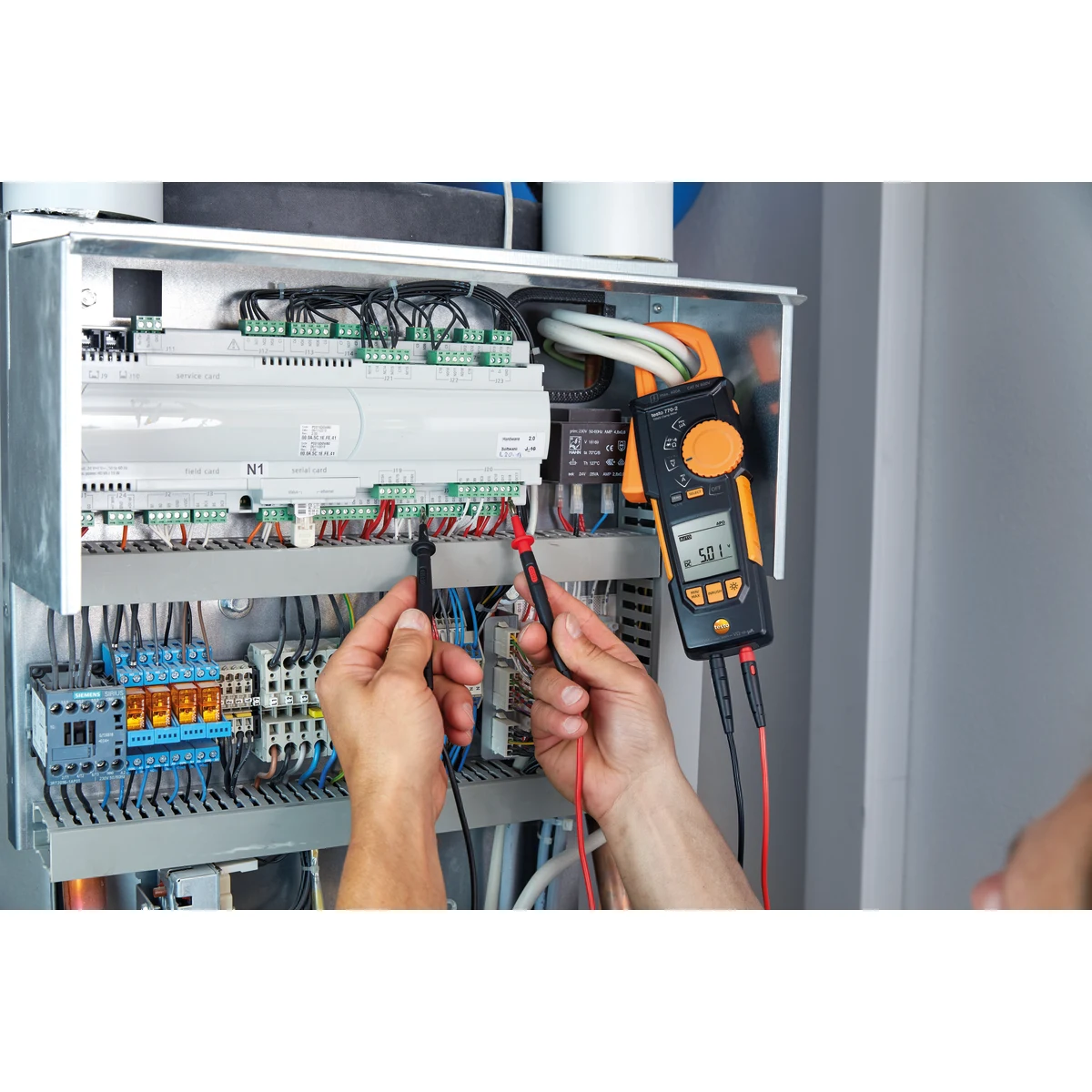

The testo 770 family is designed for tight measuring points: the jaw retracts fully into the housing, so a single conductor can be gripped even when it sits right next to others, as is common in distribution and machine control cabinets.
All three versions measure True RMS and automatically recognise AC or DC and the parameter being measured (voltage, resistance, continuity, diodes or capacitance), which reduces handling errors. They also include an inrush current function for electric motors.
The testo 770-2 adds the microamp range for checking burner ionisation current and temperature measurement with the supplied type K thermocouple adapter. The testo 770-3 extends the range to 1,000 V and 600 A, measures active, apparent and reactive power and sends readings via Bluetooth to the testo Smart App.
Key features
- Fully retractable jaw for tightly packed conductors
- True RMS measurement with automatic AC/DC detection
- Motor inrush current and µA range (770-2/-3)
- Temperature with type K thermocouple adapter (770-2/-3)
- Power, 1,000 V, 600 A and Bluetooth with testo Smart App (770-3)
- CAT IV 600 V
Applications
- Electrical maintenance of panels and machinery
- Refrigeration, air conditioning and heat pump systems
- Burner checks (ionisation current)
- Electric motor diagnostics
Versions and references
| testo reference | Version |
|---|---|

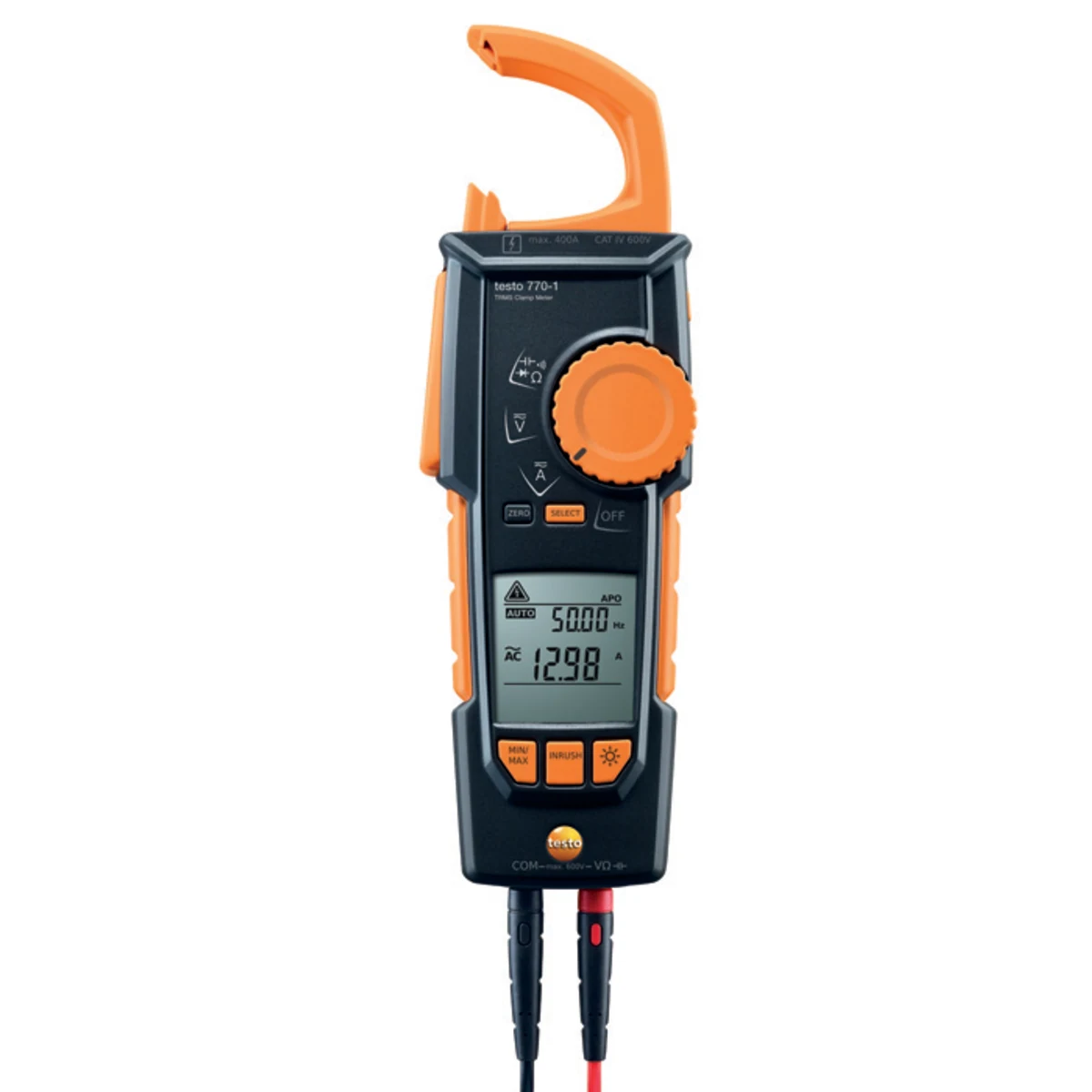

| 0590 7701 | testo 770-1: True RMS, 400 A and 600 V; with test leads and batteries |

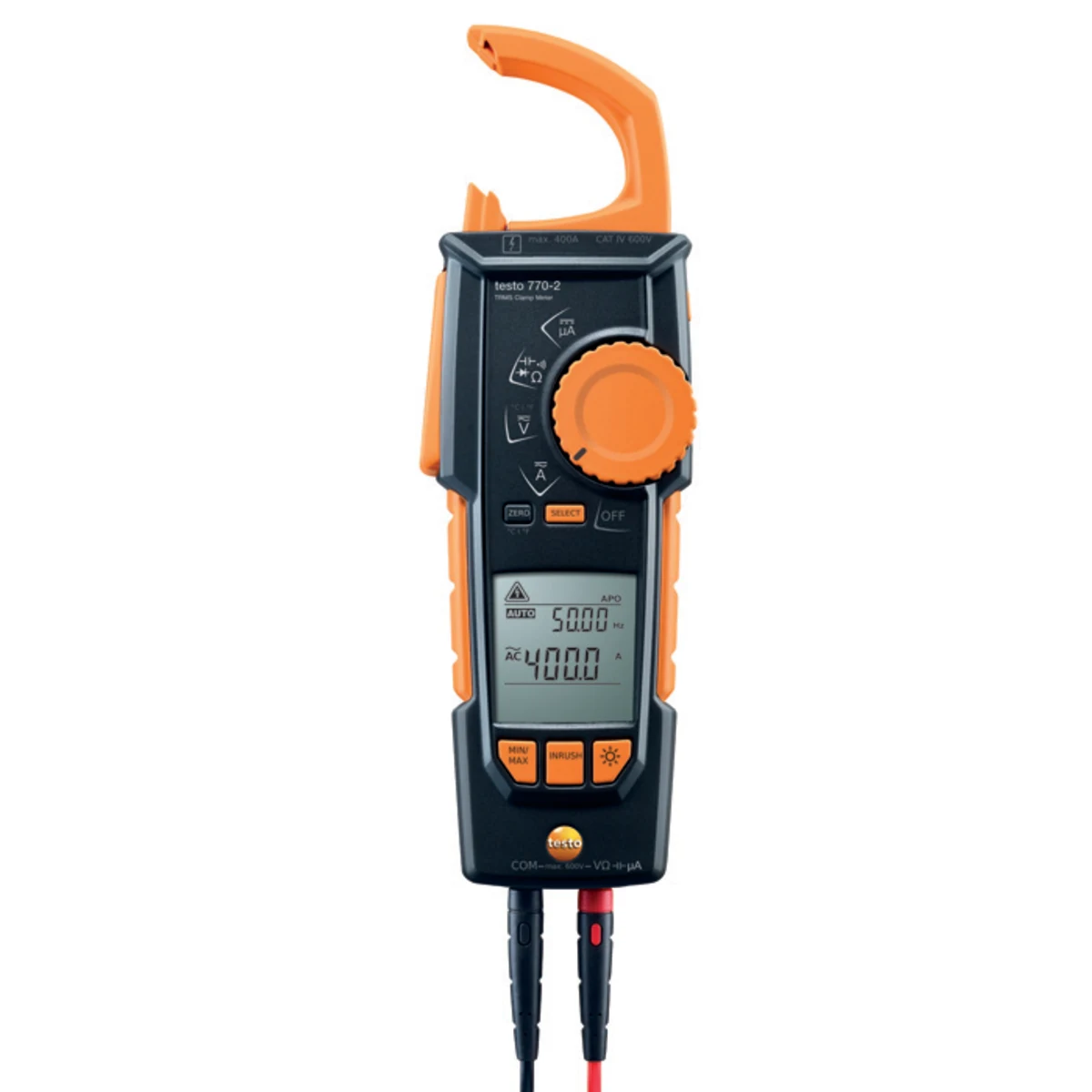

| 0590 7702 | testo 770-2: adds µA range and temperature; includes type K thermocouple adapter |

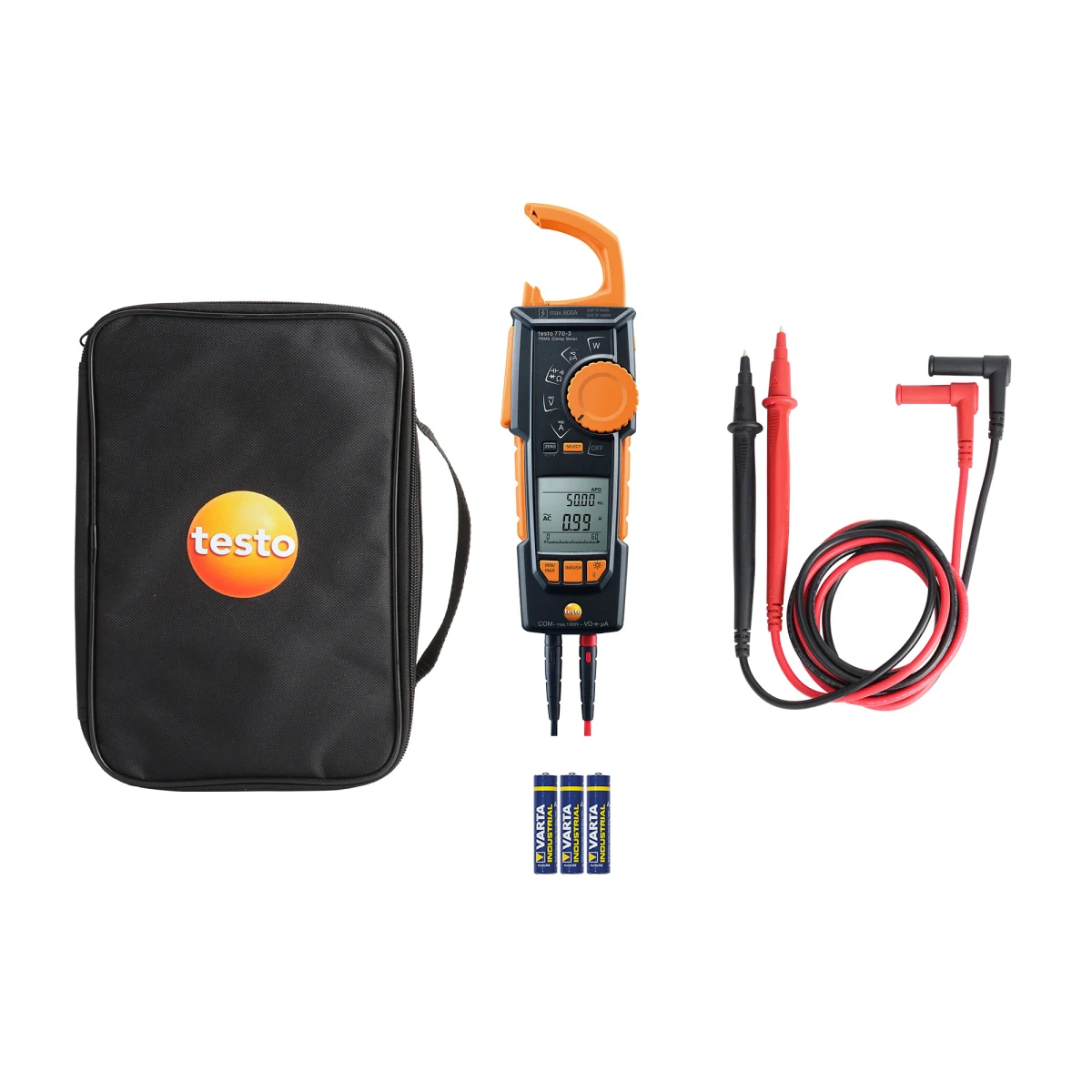

| 0590 7703 02 | testo 770-3: Bluetooth and App, 600 A, 1,000 V and power; with test leads, batteries, conformity report and case |

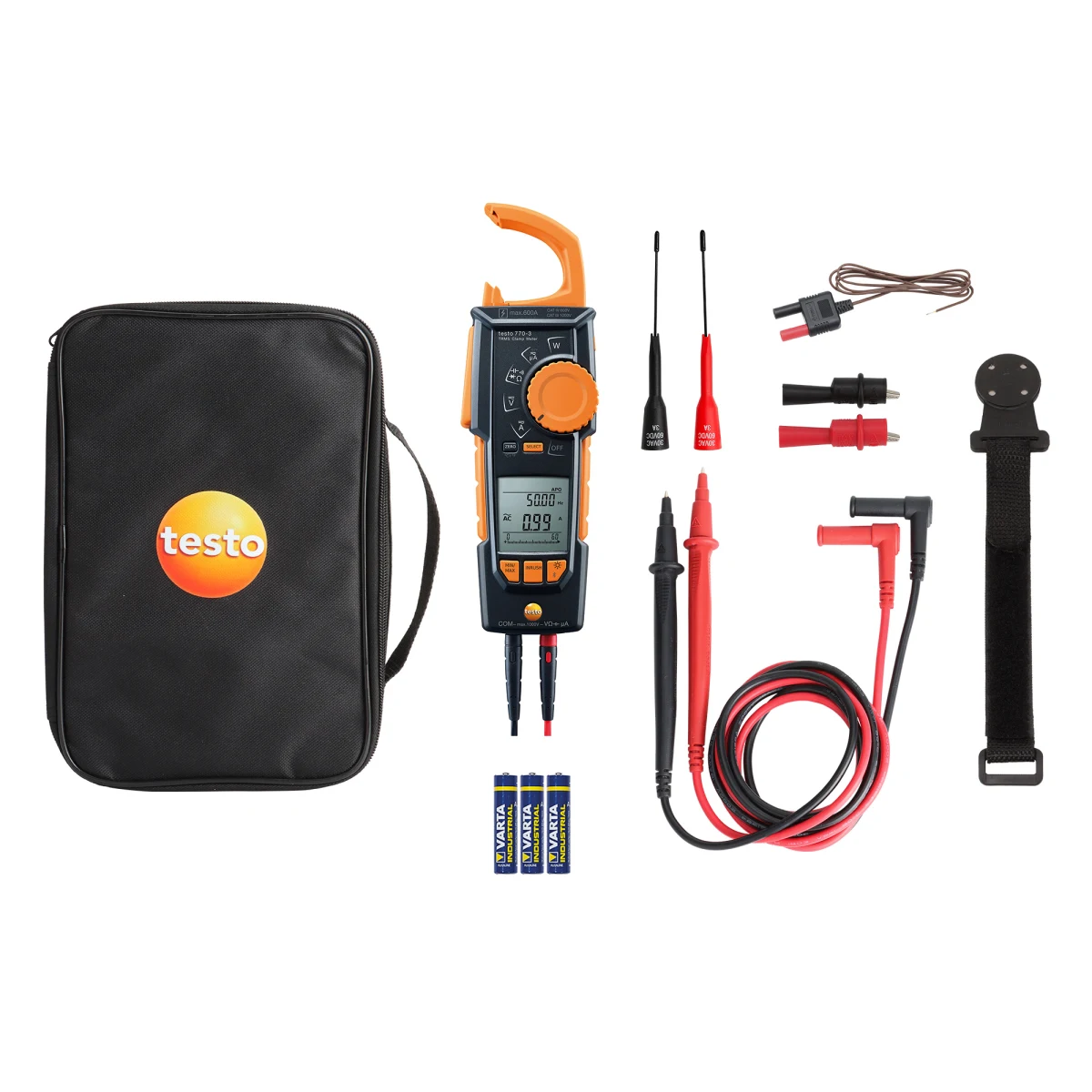

| 0590 7703 03 | testo 770-3 Premium kit: also crocodile clips, micro clips, TP temperature probe and magnetic holder |
| 0590 0021 | Accessory: type K thermocouple adapter (testo 770-2/-3) |
| 0590 0017 | Accessory: carrying case for testo 770 |
See the specifications table for technical data.
Downloads
- testo 770 data sheet (PDF, 2.3 MB)
- testo 770 instruction manual (PDF, 1.2 MB)
- testo 770 startup instructions (PDF, 875 KB)
- testo 770-3 quickstart (PDF, 3.9 MB)
Price on request: add it to your quote request and we will reply with price and lead time.
Specifications
| Weight | 0,378 kg |
|---|---|
| Reference | 0590 7701 / 0590 7702 / 0590 7703 02 / 0590 7703 03 (set) |
| Brand | testo |
| Model | testo 770-1 / testo 770-2 / testo 770-3 |
| Type | True RMS clamp meter with retractable jaw |
| AC/DC current (clamp) | 0.1 to 400 A (770-1/-2); 0.01 to 600 A (770-3); ±(2% of m.v. + 5 digits) |
| Corriente µA (cables) | 0.1 to 400 µA (770-2); 0.1 to 600 µA (770-3); ±(1.5% of m.v. + 5 digits) |
| AC/DC voltage | 1 to 600 V (770-1/-2); 1 to 1,000 V (770-3); from ±(0.8% of m.v. + 3 digits) |
| Resistance | 0.1 Ω to 40 MΩ (770-1/-2); up to 60 MΩ (770-3); ±(1.5% of m.v. + 3 digits) |
| Capacitance | 0.01 nF to 100 µF (770-1/-2); 0.001 to 60,000 µF (770-3) |
| Frequency | Up to 10 kHz, ±(1% of m.v. + 1 digit) (770-3) |
| Power | Active 0.1 W to 600 kW ±(5% of m.v. + 5 digits); apparent up to 600 kVA; reactive up to 600 kvar; power factor -1.00 to +1.00 (770-3) |
| Temperature (type K adapter) | -20 to +500 °C; ±1 °C (0 to +100 °C); resolution 0.2 °C (770-2/-3) |
| Display | Backlit 2-line LCD; 4,000 counts (770-1/-2) or 6,000 counts (770-3) |
| Functions | True RMS, automatic AC/DC and parameter detection, inrush current, diode and continuity test, Min/Max and hold |
| Connectivity | Bluetooth 4.0 and testo Smart App (770-3; iOS 11.0 or later, Android 6.0 or later) |
| Measurement category | CAT IV 600 V (770-1/-2); CAT IV 600 V and CAT III 1,000 V (770-3) |
| Power supply | 3 AAA batteries |
| Operating temperature | -10 to +50 °C |
| Storage temperature | -15 to +60 °C |
| Dimensions | 249 x 96 x 44 mm |
| Weight | 378 g |
| Standards | EN 61326-1; EN 61010-2-032; EN 61140; CSA and CE approvals |
