AKO BIGDarwin 3-relay controller with large display: AKO panel controller with a high-brightness 2.3″ display visible from a distance, 3 relays and 90-240 V~ power supply.
Request your quote with no obligation.
AKO BIGDarwin 3-relay controller with large display
Price on request
Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.
Description
AKO BIGDarwin 3-relay controller with large display

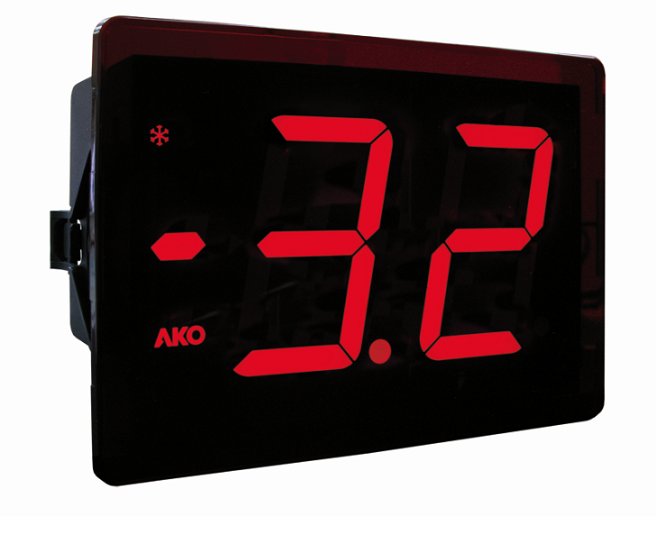

The BIGDarwin AKO-D16323 is a three-relay controller with a high-brightness 2.3-inch display that can be read from any angle and from further away than a conventional controller. It is designed for chilled or frozen applications with heater or reverse-cycle defrost and for higher-power loads, with ECO function and application presets.
Main features
- High-brightness 2.3″ display
- 3 relays: compressor 16 A, fans 6 A and auxiliary 8 A
- 2 NTC/PTC inputs and 2 digital inputs
- ECO function to optimise consumption
- Icons and messages for faults
- 1.5 m NTC probe included
Applications
- Chilled or frozen applications with heater or reverse-cycle defrost
- Rooms and equipment where the temperature must be read from a distance
Versions and references
| AKO reference | Version |
|---|---|
| AKO-D16323 | 3 relays, 90-240 V~ |
See the specifications table for technical data.
Downloads
- BIGDarwin user manual (PDF, 5.2 MB)
- BIGDarwin installation instructions (PDF, 1.6 MB)
Price on request: add it to your quote request and we will reply with price and lead time.
Specifications
| Reference | AKO-D16323 |
|---|---|
| Brand | AKO |
| Range | AKOCONTROL BIGDarwin |
| Power supply | 90-240 V~ 50/60 Hz, 7 VA |
| Relays | COOL 16 A 12(9) A; FAN 6 A 5(4) A; AUX 8 A 8(4) A, 250 V~ |
| Inputs | 2 NTC/PTC + 2 digital |
| Measuring range | NTC -50.0 to 99.9 ºC; PTC -50.0 to 150 ºC |
| Resolution | 0.1 ºC (-50 to 100 ºC) |
| Panel cut-out | 124 x 85 mm |
| Front dimensions | 139 x 100 mm, depth 40 mm |
| Protection rating | IP40 (front) |
| Operating temperature | -10 to 55 ºC, humidity < 90% |
