AKO Darwin digital panel thermometer 71 x 29 mm: AKO electronic thermometer for a 71 x 29 mm cut-out, with NTC probe included and 12/24 V, 230 V and 90-240 V Modbus versions.
Request your quote with no obligation.
AKO Darwin digital panel thermometer 71 x 29 mm
Price on request
Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.
Description

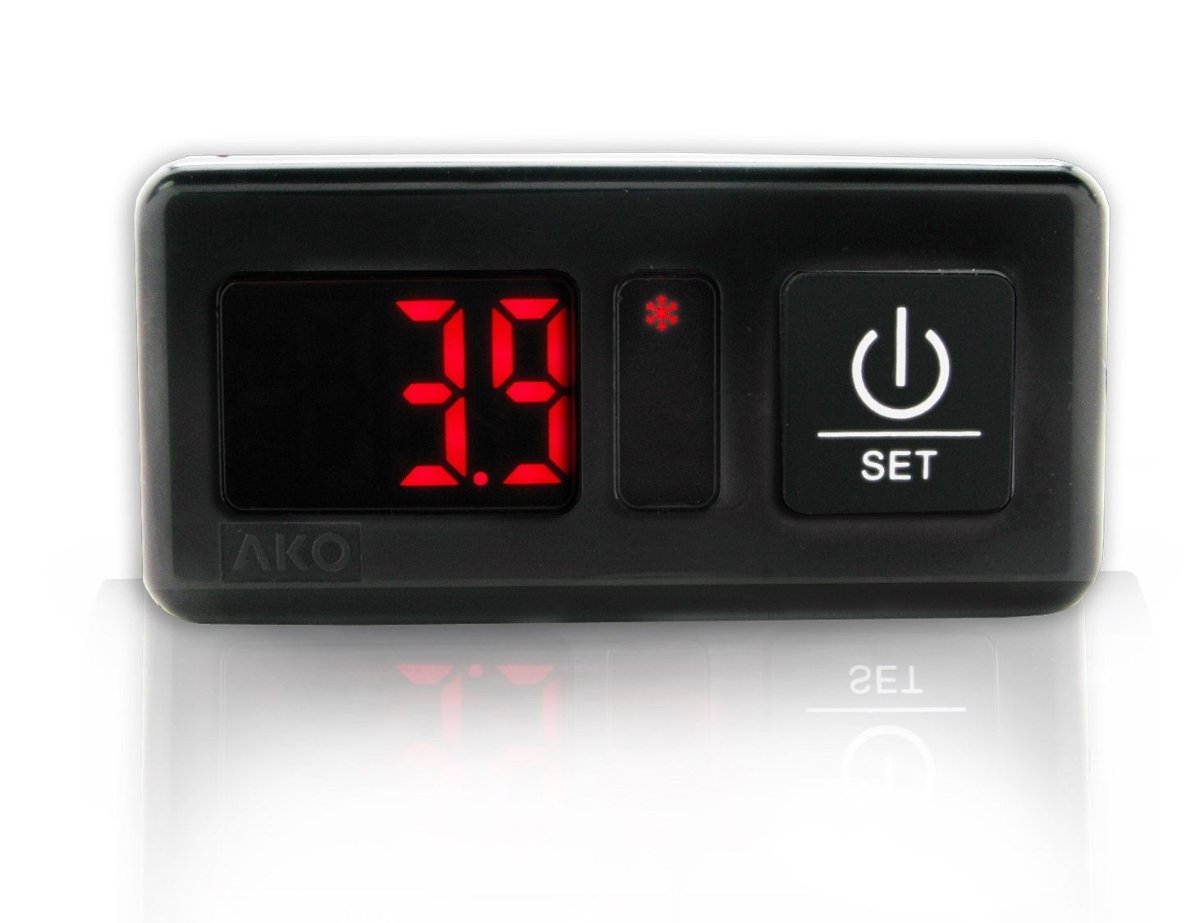

AKO Darwin digital panel thermometer
AKO Darwin electronic thermometer for panel mounting (71 x 29 mm cut-out), ideal when only the temperature of a room, display case or process needs to be shown. It displays the temperature in ºC or ºF with decimals, accepts an NTC or PTC probe and is set with a single key. One NTC probe is included.
Main features
- Temperature display in ºC or ºF with decimal point
- NTC or PTC probe selectable by program, with calibration
- A single key to set parameters
- Version with built-in RS485 Modbus communication (AKO-D14023-C)
- 1 NTC probe included
Applications
- Temperature display in cold rooms, display cases, cabinets and electrical panels
Versions and references
| AKO reference | Version |
|---|---|
| AKO-D14023 | 230 V~ 50/60 Hz, 3.5 VA, depth 43 mm |
| AKO-D14012 | 12/24 V, 2.5 VA, depth 43 mm |
| AKO-D14023-C | 90-240 V~ 50/60 Hz, 6 VA, RS485 Modbus, depth 61 mm |
See the specifications table for technical data.
Downloads
- Darwin controllers datasheet (PDF, 2.4 MB)
- Darwin user manual (PDF, 9.3 MB)
- Darwin 0 and 1 relay installation instructions (PDF, 1.7 MB)
Price on request: add it to your quote request and we will reply with price and lead time.
Specifications
| Reference | AKO-D14023 |
|---|---|
| Brand | AKO |
| Range | AKOCONTROL Darwin |
| Relays | No relays (display only) |
| Power supply | 230 V~, 12/24 V or 90-240 V~ depending on version |
| Mounting | Panel, with fixing clips |
| Panel cut-out | 71 x 29 mm |
| Front dimensions | 79 x 38 mm |
| Protection rating | IP65 (front) |
| Probes | NTC/PTC selectable (1 NTC probe included) |
| Measuring range | NTC -50.0 to 99.9 ºC; PTC -50.0 to 150 ºC |
| Resolution | 0.1 ºC |
| Display | Red, 3 digits with sign and status LEDs |
| Operating temperature | -10 to 50 ºC, humidity < 90% |
| Connection | Screw terminals, cables up to 2.5 mm² |
