Price on request

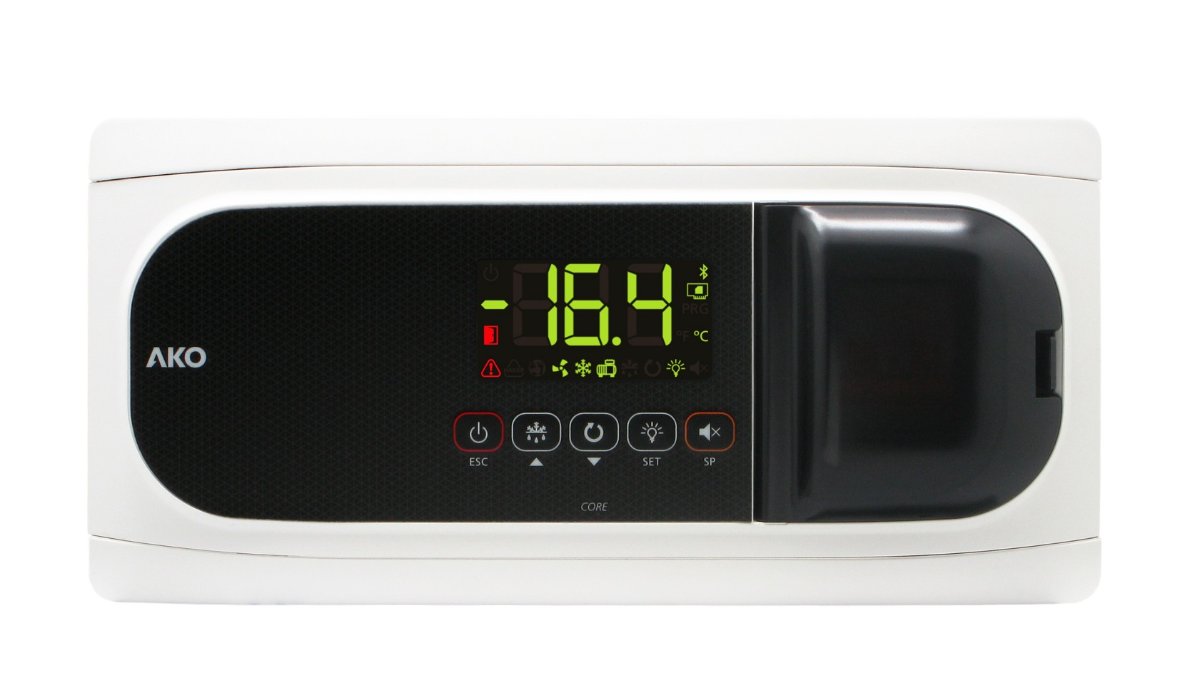

AKOCORE AKO-16523P cold room controller with single-phase electrical protection: AKO wall-mounted controller for cold rooms up to 2 HP with built-in 16 A single-phase electrical protection and management of 2 evaporators.
Request your quote with no obligation.
Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.
The AKOCORE AKO-16523P adds a built-in 16 A single-phase electrical protection to the AKOCORE cold room controller, so the same unit works as the control and protection panel of the room. It manages compressor, fans, defrosts (including a second evaporator), light and alarms, with a two-step start-up wizard.
| AKO reference | Version |
|---|---|
| AKO-16523P | 230 V~ 50 Hz power supply |
| AKO-16520P | 120 V~ 50 Hz power supply |
| AKO-16523PN | 100-240 V~ 50/60 Hz power supply and built-in NB-IoT communication for AKONET.Cloud |
By adding the CAMM AKO-58500 module it can be configured and checked from a mobile phone (data, event and alarm logging); connected to AKONET.Cloud it can be monitored and managed remotely.
See the specifications table for technical data.
Price on request: add it to your quote request and we will reply with price and lead time.
| Reference | AKO-16523P |
|---|---|
| Brand | AKO |
| Range | AKOCORE |
| Power supply | 230 V~ 50 Hz (16520P: 120 V~; 16523PN: 100-240 V~) |
| Electrical protection | Single-phase 16 A |
| COOL and FAN relays | SPST 16 A; 12 (9) A 250 V~ |
| DEF and AUX 1 relays | SPDT 20 A; NO 15 (15) A / NC 15 (13) A 250 V~ |
| AUX 2 relay | SPDT 16 A; NO 12 (9) A / NC 10 (8) A 250 V~ |
| Power consumption | 6.3 VA |
| Maximum rated current | 15 A |
| Probe | NTC, extendable up to 100 m |
| Measuring range | -50.0 ºC to 99.9 ºC |
| Resolution | 0.1 ºC |
| Accuracy | ±1 ºC |
| Dimensions | 290 x 141 x 84.4 mm (W x H x D) |
| Communications | Modbus; Bluetooth with CAMM module; AKONET.Cloud |
| Application | Chilled and frozen rooms up to 2 HP |
