Baxtran BPS pallet weighing platform: u-frame 1250 × 840 mm pallet weighing platform in painted, galvanised or stainless steel. Indicator not included.
Request your no-obligation quote.
BAXTRAN BPS U-FRAME PALLET WEIGHING PLATFORM
Price on request
Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.
Description

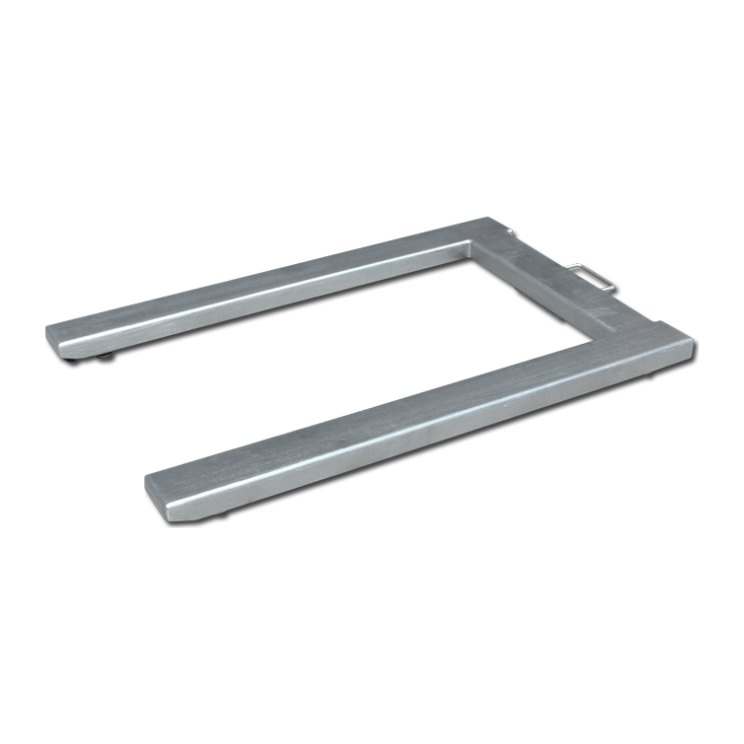

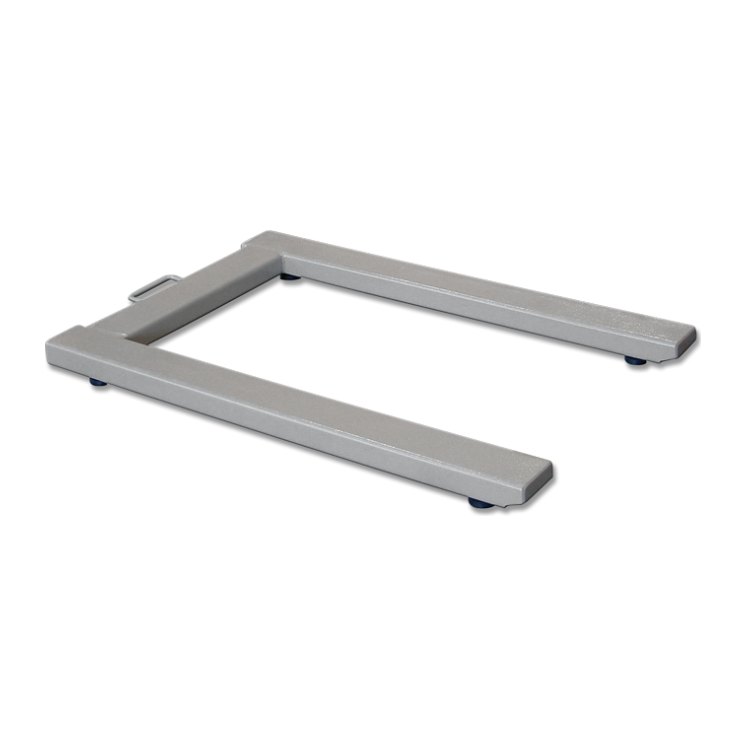

Baxtran BPS pallet weighing platform: u-frame 1250 × 840 mm pallet weighing platform in painted, galvanised or stainless steel
The BPS is a U-frame 1250 × 840 mm pallet weighing platform: the pallet truck drives into the central gap and sets the pallet down on the weighing arms.
Cold-formed U-profile frame with adjustable feet and IP66 ABS junction box, in three finishes: painted and hot-dip galvanised steel (IP67 OIML R-60 C3 steel load cells) or stainless steel (IP68 stainless OIML R-60 C3 load cells).
1,500 kg capacity, and 3,000 kg in painted steel. Supplied without indicator: combine it with the Baxtran weight indicator that best suits the job.
Construction and standard equipment
- Cold-formed U-profile frame, 1250 × 840 mm
- Painted, hot-dip galvanised or stainless finish
- OIML R-60 C3 load cells IP67 (steel) or IP68 (stainless)
- IP66 ABS junction box; adjustable feet
Standards
BPS1, BPS3 and BPS5 versions legal for trade; OIML R-60 C3 load cells.
Versions and Baxtran references
| Baxtran ref. | Capacity (kg) | Division (g) | Finish | Legal for trade |
|---|---|---|---|---|
| 260187 | 1,500 | 500 | Painted steel (BPS1) | Yes |
| 260188 | 1,500 | 500 | Galvanised (BPS3) | Yes |
| 260189 | 1,500 | 500 | Stainless (BPS5) | Yes |
| 260705 | 1,500 | 500 | Painted steel | No |
| 261300 | 3,000 | 1,000 | Painted steel | No |
Applications
Dispatch, goods-in, logistics and warehouses with euro pallets; stainless version for food and wet areas.
See all weighing platforms. José Bernad is an authorised Baxtran distributor: request your no-obligation quote.
Specifications
| Model | BPS |
|---|---|
| Brand | Baxtran |
| Type | U-frame pallet weighing platform |
| Capacity | 1,500 kg (3,000 kg in painted steel) |
| Division | 500 g (1,500 kg) · 1 kg (3,000 kg) |
| Dimensions | 1250 × 840 mm |
| Construction | Cold-formed U-profile; painted, hot-dip galvanised or stainless; adjustable feet |
| Load cells | Steel OIML R-60 C3 IP67 (painted/galvanised) or stainless OIML R-60 C3 IP68; IP66 ABS junction box |
| Indicator | Not included (chosen separately) |
| Standards | BPS1, BPS3 and BPS5 versions legal for trade; OIML R-60 C3 load cells. |
| Baxtran references | 260187 · 260188 · 260189 · 260705 · 261300 |
