DIBAL DMI-620 STAINLESS WEIGHT INDICATOR

Description

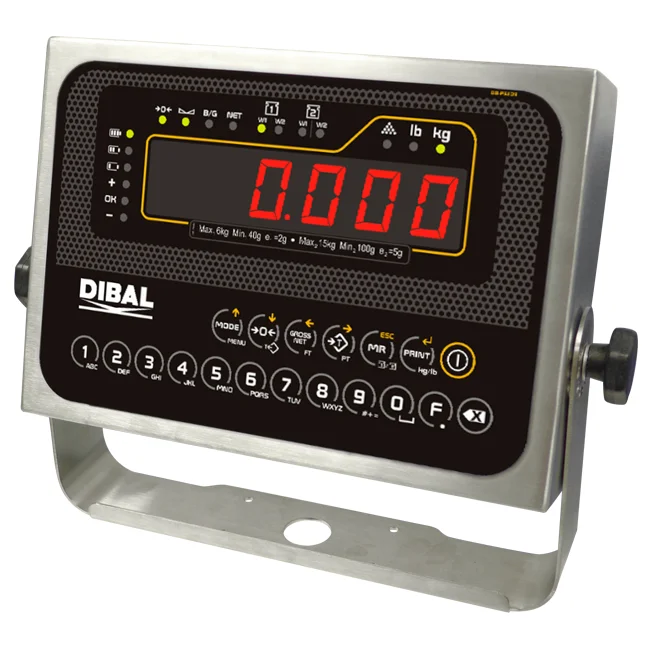

Dibal DMI-620 stainless steel weight indicator

The Dibal DMI-620 is a weighing terminal in AISI 304 stainless steel with a 19-key keypad and 6-digit red LED display. It connects to a platform of up to 14 load cells (optional 2nd platform) and works with up to 6,000 divisions.

It is the process indicator of the range: besides weighing, it stores up to 1,000 weighings, manages 400 PLUs and 400 memories and, with the 4 inputs/outputs option, controls single-product two-speed batching or sorts by weight.

Advantages

• Functions: weight-tare-accumulation, piece counting, min-target-max weight control and up to 10 programmable tares.
• Linearisation with up to 5 adjustment points; single-range, multi-range or multi-interval.
• Communications: 2 × RS-232 as standard; optional RS-485/RS-422, Ethernet, USB and Wi-Fi.
• Optional internal battery of up to 44 hours and 4-20 mA / 0-10 V analogue output.
• Adjustable tilt bracket for table or wall, and integration with Dibal labellers.

Versions and references

• 7VC3A0I1UE: DMI-620, stainless steel

Options on request: Ethernet, 4 inputs/outputs, analogue output, RS-485/RS-422, internal memory, USB, Wi-Fi, 2nd platform and DCM software (ref. 7340C0U3).

See all our weight indicators.

José Bernad is a Dibal distributor with its own technical service: request a no-obligation quote stating the version you need.
