Dibal IRE48 label printer: desktop printer for die-cut labels up to 4″ (118 mm), direct thermal at 127 mm/s.
Request your quote stating the version.
DIBAL IRE48 LABEL PRINTER
Price on request
Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.
Description

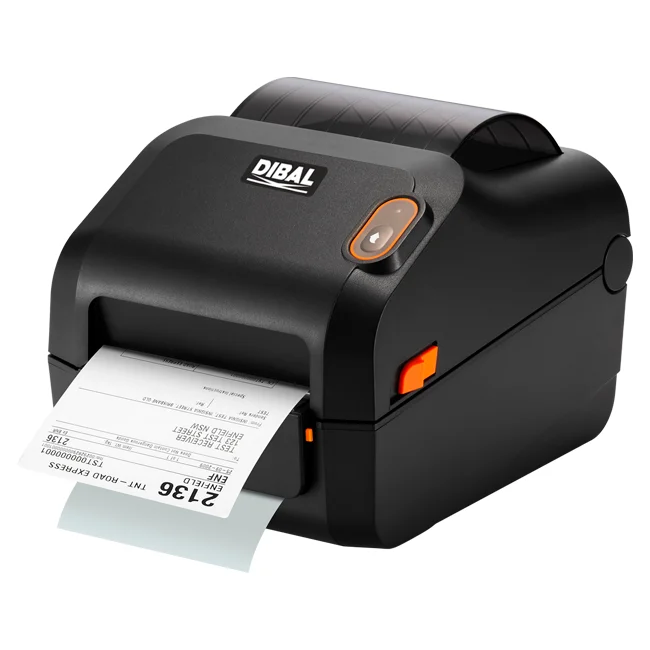

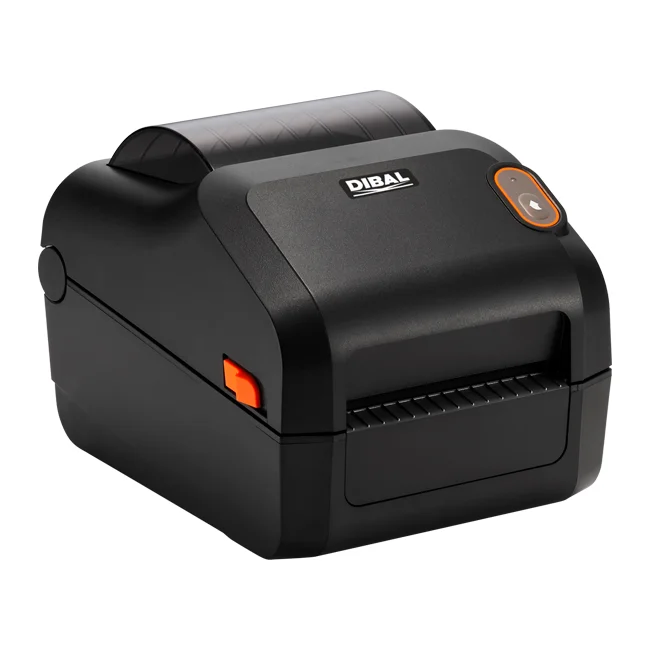

Dibal IRE48 external die-cut label printer
The Dibal IRE48 is a desktop printer for die-cut labels 15 to 118 mm wide, with direct thermal printing at 127 mm/s. It connects via USB to CS-range PC scales and LP-5000 labellers.
It prints large or totals labels from the scale or labeller. The roll and head are changed without tools and the paper calibrates itself.
Advantages
- Labels 15 to 118 mm wide and up to 104 × 1,000 mm print area; roll up to 127 mm diameter.
- Sensors: transmissive, reflective (black mark) and open head, with automatic paper calibration.
- Label separation by gap, black mark, notch, continuous or fan-fold.
- Label design with the Label Artist application, with database connection.
- Label peeler available as an optional accessory.
Versions and references
- 71XB00UE: IRE48, die-cut labels up to 118 mm, USB 2.0
See all our manual labellers.
José Bernad is a Dibal distributor with its own technical service: request a no-obligation quote stating the version you need.
Specifications
| Weight | 3 kg |
|---|---|
| Model | IRE48 |
| Brand | Dibal |
| Type | External die-cut label printer |
| Printing | Direct thermal, 8 dots/mm, up to 127 mm/s |
| Labels | 15 to 118 mm wide, 0.06-0.20 mm thick; roll up to 127 mm |
| Memory | 64 MB SDRAM and 128 MB Flash |
| Interfaces | Bidirectional USB 2.0 |
| Compatible with | Dibal CS-range PC scales and LP-5000 labellers |
| Construction | Double-wall ABS housing |
| Power supply | 100-240 VAC, 50/60 Hz |

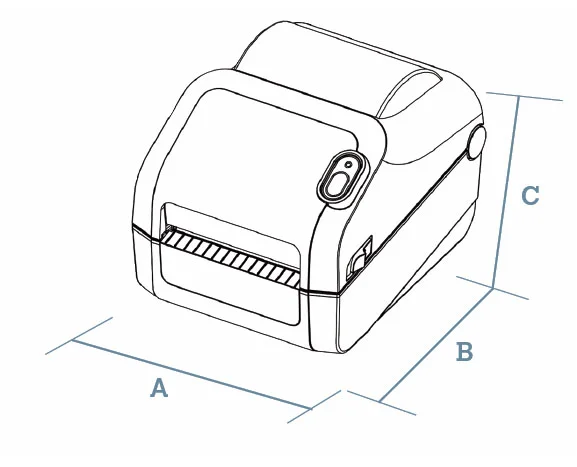

| Dimensions (see drawing) | A 181 · B 222 · C 168 mm |
| Packed weight | 3 kg |
| Dibal references | 71XB00UE |
