EVDA-20 AUTOMATIC DOUBLE CHAMBER VACUUM PACKER

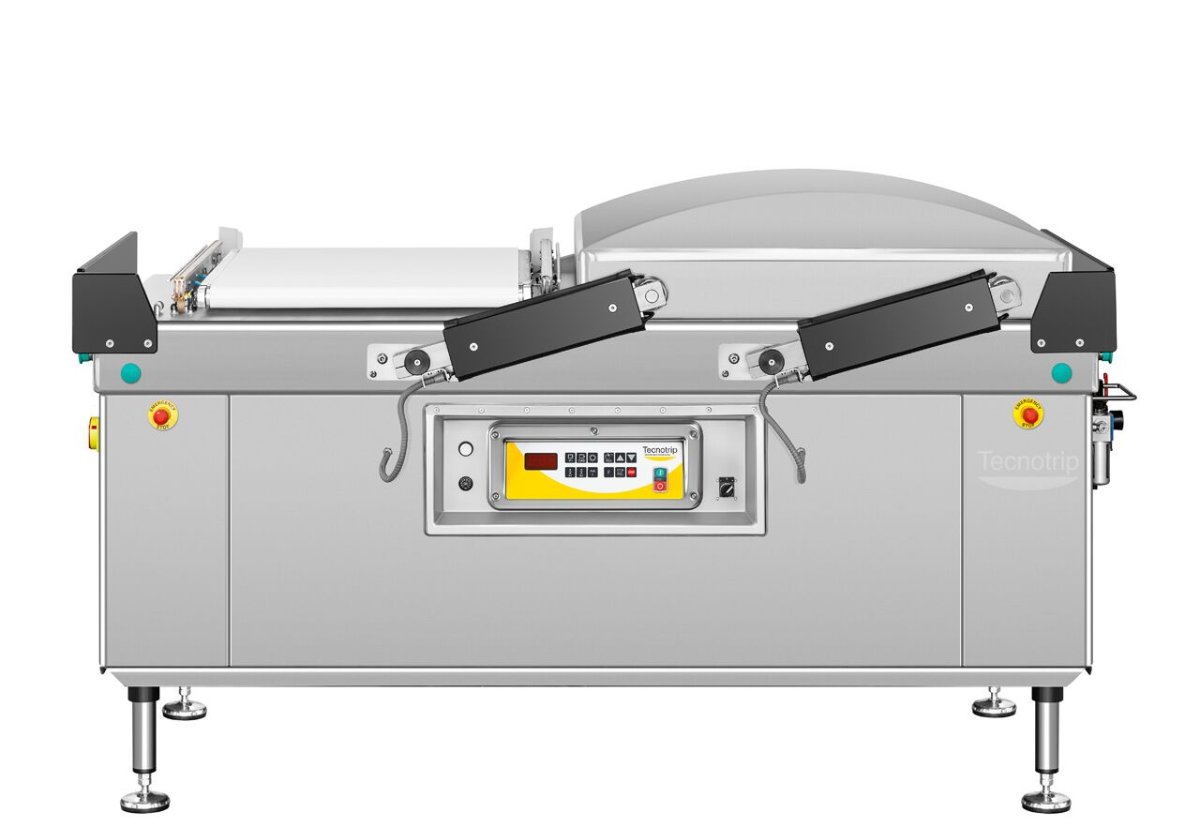

Tecnotrip EVDA-20 automatic vacuum packer

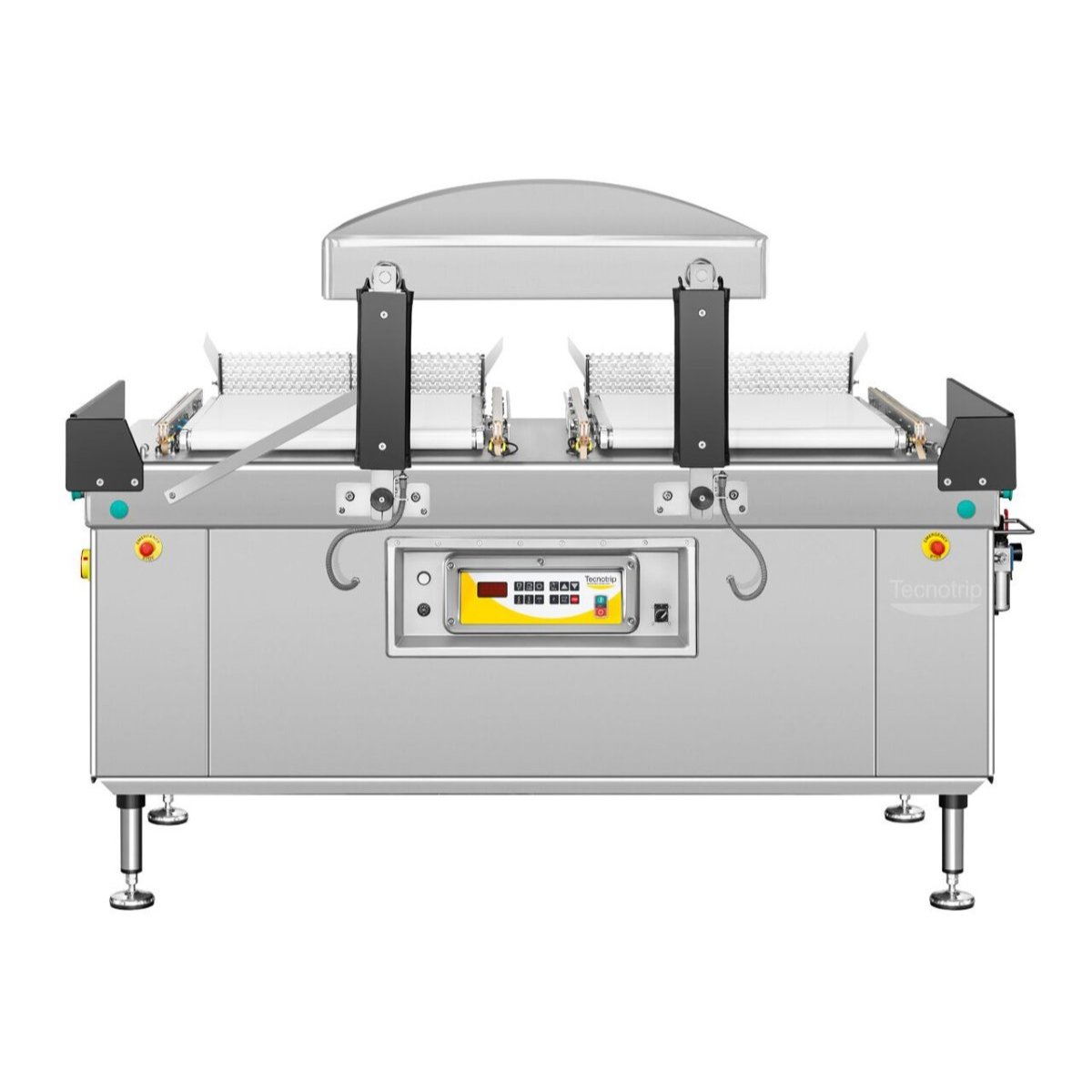

Tecnotrip EVDA-20 automatic vacuum packer, view 2

EVDA-20 AUTOMATIC DOUBLE CHAMBER VACUUM PACKER

Price on request

EVDA-20 automatic vacuum packer by Tecnotrip: vacuum, sealing and vacuum + gas (MAP), bars: 2 bars of 830 mm in each chamber, pump Busch 250 or 300 m³/h.

Request a no-obligation quote.

Add to quote
Download technical data sheet (PDF, 187 KB)
Request a quote on WhatsApp

Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.

SKU: EVDA-20 Categories: , ,

Description

EVDA-20 automatic vacuum packer

The EVDA-20 is a double chamber vacuum packer with a conveyor in each chamber and automatic unloading, designed to double capacity in industrial environments. It synchronises with the conveyor and shrink tunnels in automatic lines.

Ideal for slaughterhouses, cured sausage and fish factories, cheese makers, packing centres and caterers with large production runs.

Advantages

  • Packing: Vacuum, sealing and vacuum + gas (MAP).
  • Sealing bars: 2 bars of 830 mm in each chamber.
  • Sealing types: Single, single + excess trimming and double (individually adjustable).
  • Vacuum pump: Busch 250 or 300 m³/h.
  • Control panel: Digital sensor-controlled programmer, 30 programs, conveyor operation and speed control.
  • Format: external dimensions 2075 × 1220 × 1140 mm, weight 880 kg, power supply 220/380 V · 50/60 Hz · three-phase.
  • Independent sealing adjustment and removable conveyor for cleaning.
  • Inert gas flushing (MAP) option.

Tecnotrip reference: EVDA-20.

See also our other automatic vacuum packers.

Technical data sheet · EVDA-20 AUTOMATIC DOUBLE CHAMBER VACUUM PACKER

PDF · 187 KB · Main data, models and dimensions.

Open PDFDownload

Specifications

Weight 880 kg
Model

EVDA-20
Brand

Tecnotrip
Type

Double chamber vacuum packer with automatic unloading
Packing

Vacuum, sealing and vacuum + gas (MAP)
External dimensions

2075 × 1220 × 1140 mm
Sealing bars

2 bars of 830 mm in each chamber
Sealing types

Single, single + excess trimming and double (individually adjustable)
Vacuum pump

Busch 250 or 300 m³/h
Control panel

Digital sensor-controlled programmer, 30 programs, conveyor operation and speed control
Cycles per minute

2–3
Power

7.5 kW
Power supply

220/380 V · 50/60 Hz · three-phase
Compressed air

6 bar
