Talsa W114L free-standing meat mincer: 3.7 kW (5 HP), Unger 3 system (Ø 114 mm), 52 L tray and ± 900 to 1200 kg/h output.
Own technical service and 40 years of experience. Request your no-obligation quote.
TALSA W114L MEAT MINCER (UNGER 3)
Price on request
Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.
Description
Talsa W114L free-standing meat mincer, 3.7 kW (5 HP)
The Talsa W114L is a free-standing meat mincer/grinder for workshops and meat processing plants. With a 3.7 kW (5 HP) motor and a 52 L tray, its approximate output is ± 900 to 1200 kg/h.
It comes with the Unger 3 double-cut system (pre-cutting plate, «Robot S4» knife and 5 and 7.8 mm plates) plus ring and knife to also work in Unger 2; the Unger 5 quadruple-cut system is optional. The head is external and removable, so the meat does not heat up from the motor and cleaning is easy.
Features
- Fully stainless steel base.

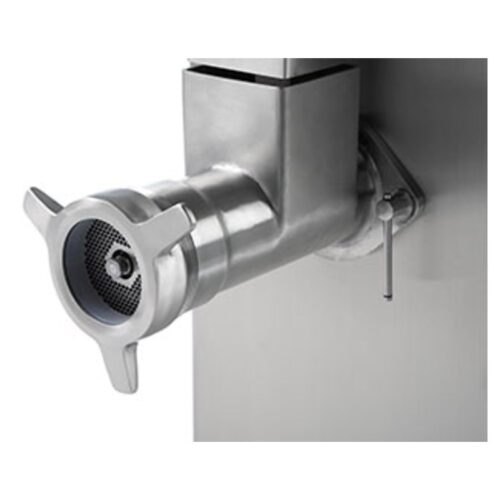

- Cutting head assembly in high-quality investment-cast stainless steel.
- Removable external head: the meat does not pick up motor heat, giving a better mince.
- Large top tray with hand-protection grid.
- Efficient, quiet gear motor that generates less heat, with thermal protector.
- Very sturdy steel gearbox in oil bath.
- Merz (Germany) automatic safety switch.
- Lumbeck & Wolter (Germany) knives and plates.
See all mincers.
José Bernad is an authorised Talsa distributor, with its own technical service and 40 years of experience: request your no-obligation quote.
Specifications
| Weight | 127 kg |
|---|---|
| Model | W114L |
| Brand | Talsa |
| Type | Meat mincer/grinder |
| Format | Free-standing |
| Cutting system | Unger 3, double cut (with ring to also work in Unger 2); Unger 5 optional |
| Plate diameter | 114 mm (Unger D-114) |
| Tray capacity | 52 L |
| Approximate output | ± 900 to 1200 kg/h |
| Three-phase motor | 3.7 kW (5 HP) · 8.3 A at 400/380 V · 14.3 A at 230/220 V |
| Supplied as standard | Unger 3 system: 3-straight-hole pre-cutting plate, L&W «Robot S4» double-cut knife, single-cut knife, Ø 5 and 7.8 mm mincing plates and U3→U2 spacer ring to also work in Unger 2 |
| Available plates | DIN 9805, 2, 3, 4, 5, 6, 7.8, 10 and 12 mm |
| Noise level at 1 m | 64 dB(A) |
| Standard equipment | Fully stainless steel base · Cutting head assembly in high-quality investment-cast stainless steel · Removable external head: the meat does not pick up motor heat, giving a better mince · Large top tray with hand-protection grid · Efficient, quiet gear motor that generates less heat, with thermal protector · Very sturdy steel gearbox in oil bath · Merz (Germany) automatic safety switch · Lumbeck & Wolter (Germany) knives and plates |
| Embalaje (an × f × al) | 108 × 74 × 122 cm |
