HINGE 1573-C

Description

Hinge 1573-C for cold rooms

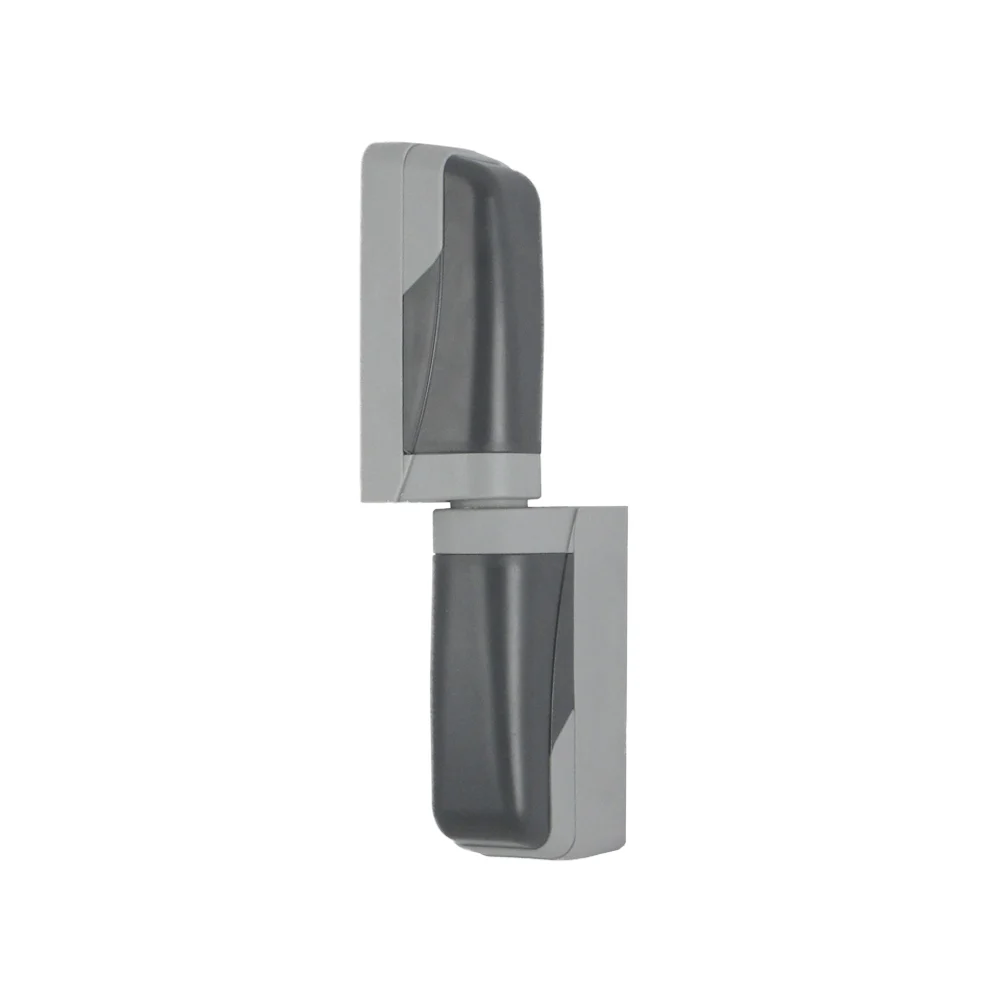

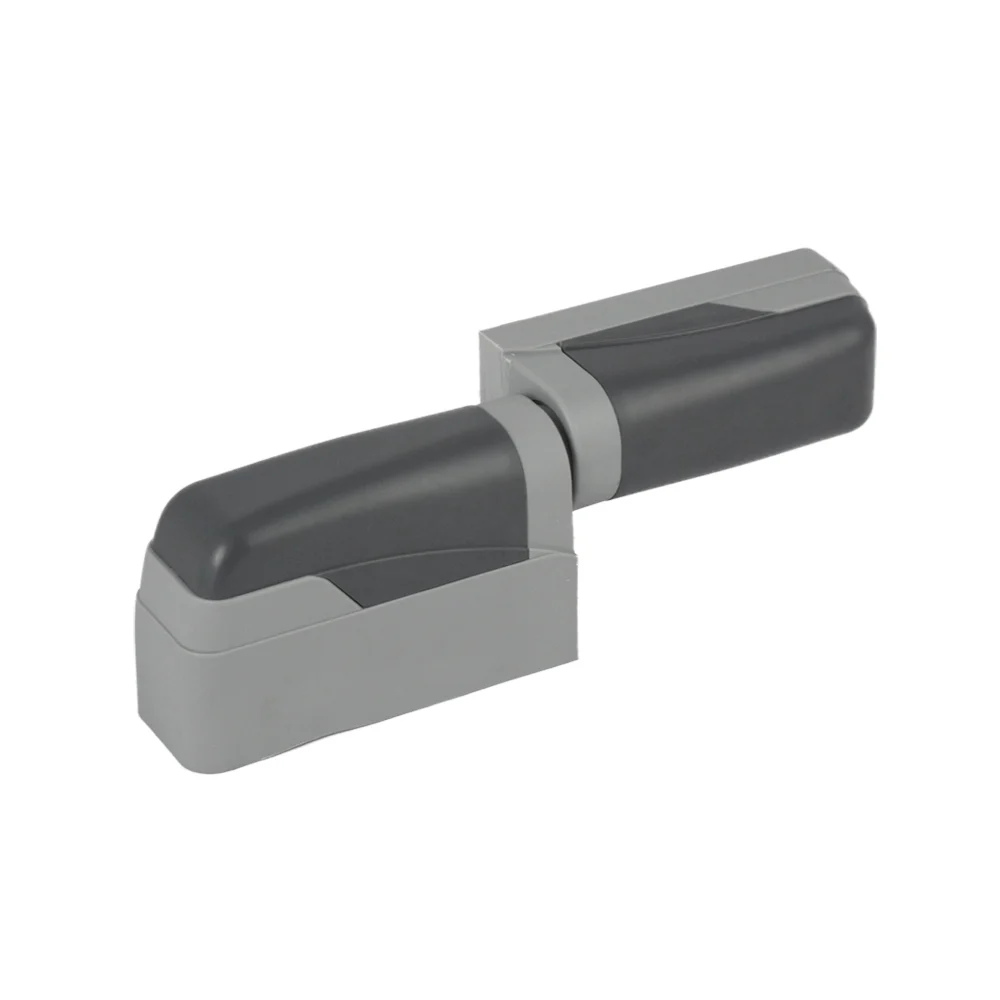

Hinge 1573-C: composite hinge for overlapping hinged cold room doors. Adjustable, for doors up to 80 kg with 2 hinges.

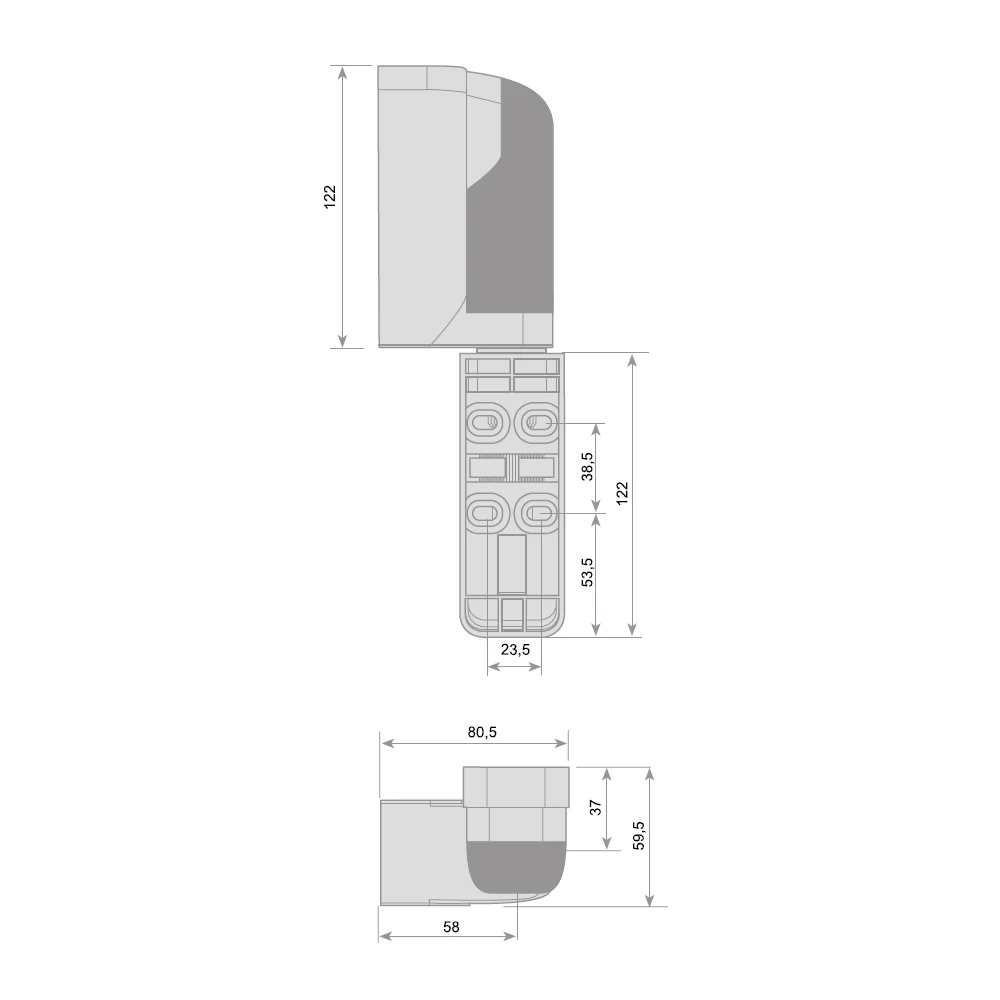

Technical specifications

• Reference: FI00430
• Material: composite
• Door type: overlapping hinged
• Adjustment: vertical and horizontal
• Pin/fittings: steel
• Maximum door weight: 80 kg (with 2 hinges)
• Door thickness: minimum 80 mm, gasket included
• Opening up to 180°
• Interchangeable right/left
• Concealed, tamper-proof fixing

Applications

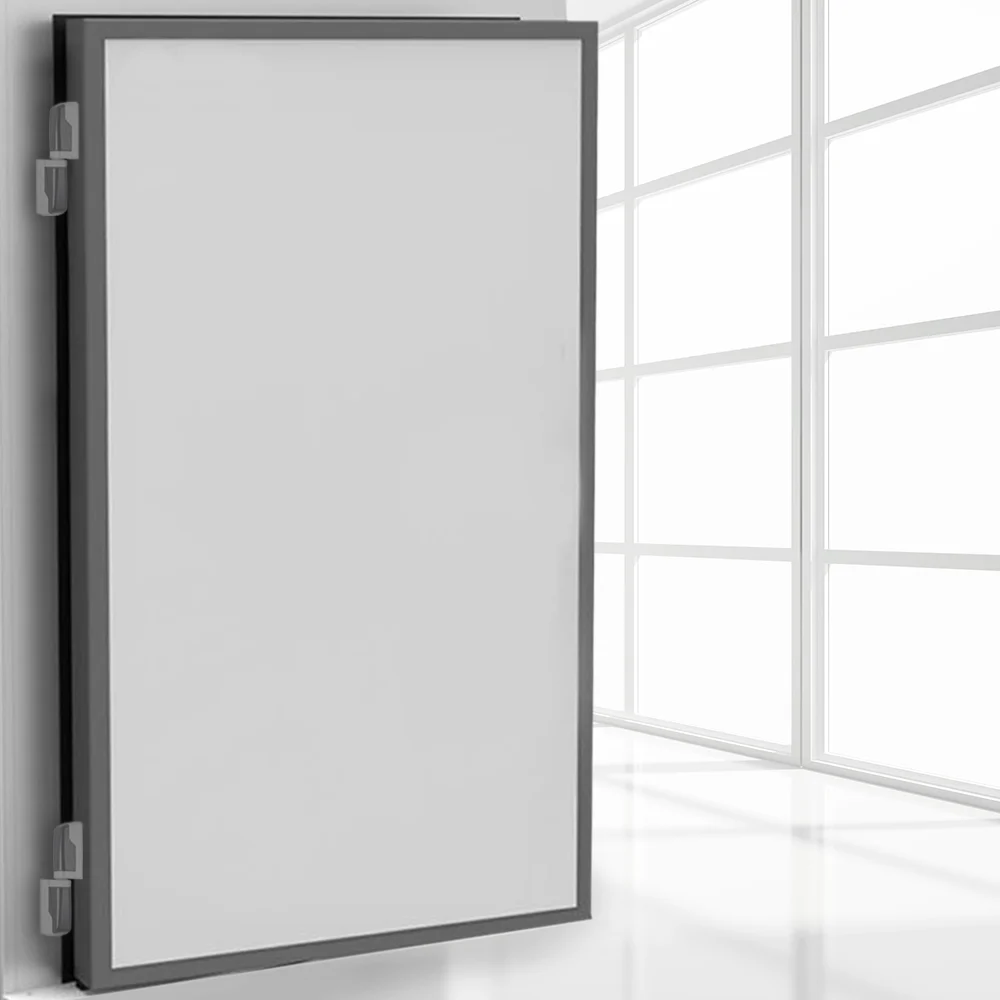

Doors and installations of cold rooms in the food industry: as a replacement or to fit a new door. See the full range of hinges and our refrigeration doors.

Other models in the same series

• Hinge 1572 HP non-adjustable (FI03478)
• Hinge 1572 non-adjustable (FI03477)
• Hinge 1572/C HP (FI01840)
• Hinge 1572-C HP non-adjustable (FI03482)
• Hinge 1572-C non-adjustable (FI03481)
• Hinge 1573 HP non-adjustable (FI03480)
• Hinge 1573 non-adjustable (FI03479)
• Hinge 1573/C HP (FI01841)
• Hinge 1573-C HP non-adjustable (FI03484)
• Hinge 1573-C non-adjustable (FI03483)
• Hinge 1575 (FI01842)
• Hinge 1575 HP (FI01844)

Frequently asked questions

Does it fit right-hand and left-hand doors?

Yes, it is interchangeable right/left.

What door weight does it support?

Up to 80 kg with 2 hinges.

What door thickness is it for?

Minimum 80 mm, gasket included.
