Kolossal 370 VK BV Dual Big slicer: vertical ham slicer, large plate with Ø 370 mm blade, gear or belt drive and built-in or separate sharpener, to choose.
Request your no-obligation quote.
KOLOSSAL 370 VK BV DUAL BIG SLICING MACHINE
Price on request
Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.
Description

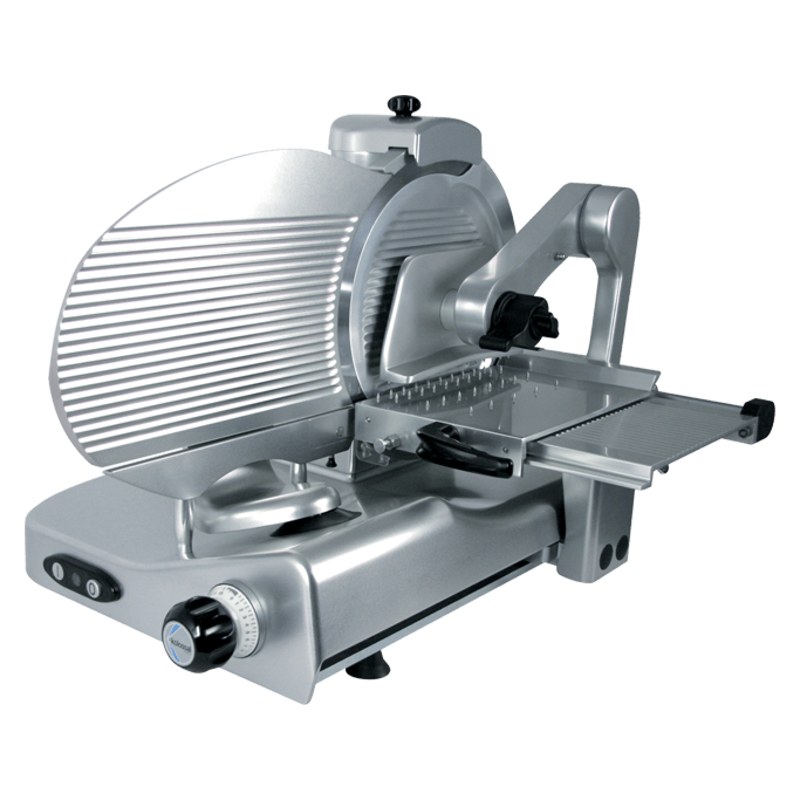

Kolossal 370 VK BV Dual Big slicer, 370 mm blade
The Kolossal 370 VK BV Dual Big is a vertical ham slicer, large plate from Manconi’s Kolossal Dual line, which renews the Kolossal line with a more rounded design. With a Ø 370 mm blade, it is designed for delicatessens and retail slicing cured ham and large cold meats. With a 420 mm stroke and a 545 × 510 mm base, it is a high-precision vertical slicer with a simple, reliable product locking mechanism.
«Dual» means a double choice: built-in or separate sharpener, and gear or belt drive.
It cuts slices from 0 to 24 mm with a cutting capacity of Ø 260 mm · 370 × 245 mm. Power supply: single-phase 230 V 290 W; three-phase 230/400 V 350 W.
Standard equipment
- Gear or belt drive, to choose.
- Built-in easy-to-use sharpener or separate sharpener for easier cleaning, to choose.
- High cutting capacity and precision.
- Large surface for the sliced product.
- Low loading height to reduce operator fatigue.
- Product plate with tilting aluminium pusher.
- Mirror-polished aluminium surfaces with sliding grooves: less friction and easier cleaning.
- Removable sharpener, blade guard, thickness regulator, clamp and product plate for thorough cleaning.
- Can be cleaned with a water jet, like all Kolossal slicers.
- Modern, reliable push-button control.
Options
Separate sharpener (S), lifting lever (AM), P6000 electronic weight control unit (P6), blade remover (AL), profiled blade (LP), Teflon-coated blade (LT), Teflon-coated thickness plate and blade cover (TT), aluminium knobs (MAL).
José Bernad is an authorised Kolossal (Manconi) distributor: request your no-obligation quote.
Specifications
| Weight | 56,2 kg |
|---|---|
| Model | 370 VK BV Dual Big |
| Brand | Kolossal |
| Line | Kolossal Dual |
| Manufacturer | Manconi |
| Type | Vertical ham slicer, large plate |
| Blade diameter | 370 mm |
| Blade speed | 200 rpm (gear) · 230 rpm (belt) |
| Slice thickness | 0 to 24 mm |
| Carriage stroke | 420 mm |
| Cutting capacity | Ø 260 mm · 370 × 245 mm |
| Drive | Gear or belt drive (to choose) |
| Sharpener | Built-in or separate (to choose) |
| Power supply | Single-phase 230 V 290 W · Three-phase 230/400 V 350 W |
| Footprint | 545 × 510 mm |
| Working area | 895 × 686 × 569 mm |
| Standard equipment | Gear or belt drive, to choose · Built-in easy-to-use sharpener or separate sharpener for easier cleaning, to choose · High cutting capacity and precision · Large surface for the sliced product · Low loading height to reduce operator fatigue · Product plate with tilting aluminium pusher · Mirror-polished aluminium surfaces with sliding grooves: less friction and easier cleaning · Removable sharpener, blade guard, thickness regulator, clamp and product plate for thorough cleaning · Can be cleaned with a water jet, like all Kolossal slicers · Modern, reliable push-button control |
| Options | Separate sharpener (S) · lifting lever (AM) · P6000 electronic weight control unit (P6) · blade remover (AL) · profiled blade (LP) · Teflon-coated blade (LT) · Teflon-coated thickness plate and blade cover (TT) · aluminium knobs (MAL) |
