Price on request
Single light barrier in polypropylene to protect walls and objects where manual pallet trucks or electric stackers operate. Protects walls and objects at low height. Modular, flexible on impact and suitable for food use.
Lengths from 950 to 5,350 mm · Class 8.8 steel rod, Ø 20 mm
For more information and prices, write to [email protected]
Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.

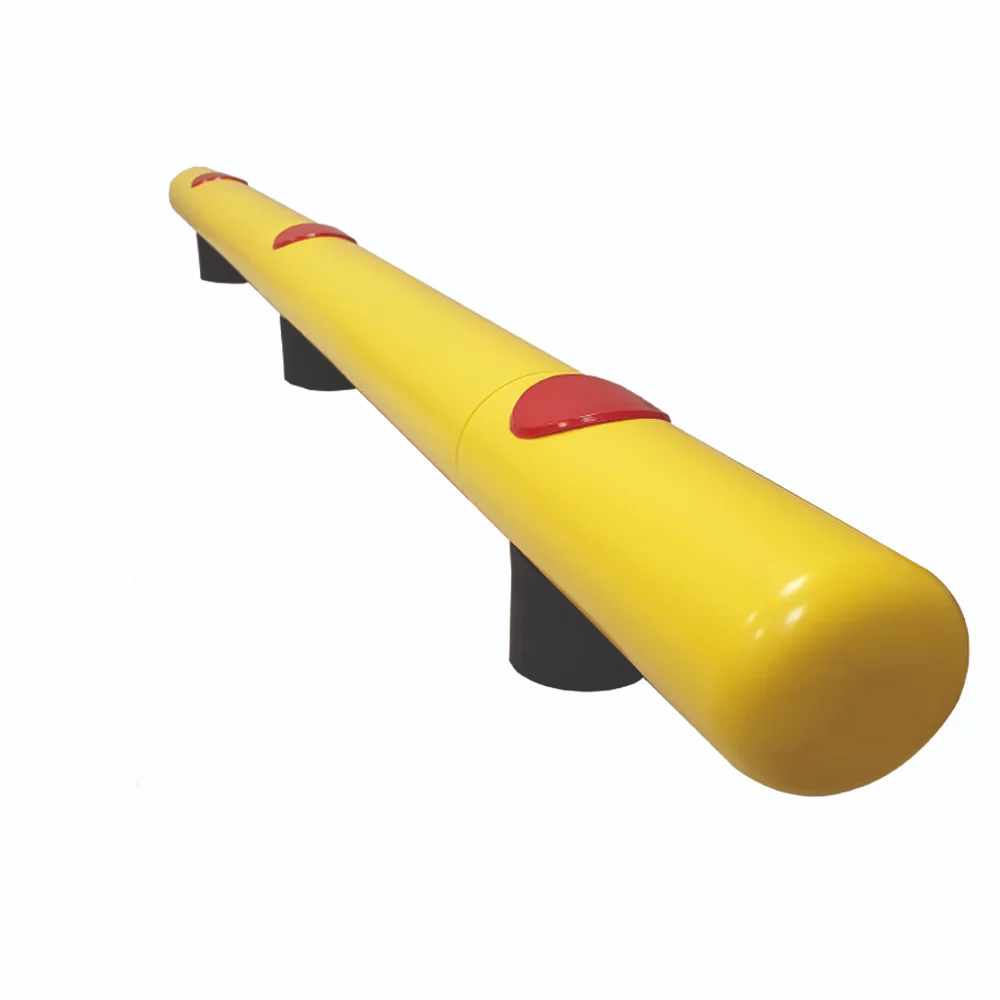

The Bernad single light barrier is designed for traffic areas where goods are not too heavy and are moved with a manual pallet truck or electric stacker. Protects walls and objects at low height. Thanks to their flexibility on impact, light barriers are the best solution to protect any wall or object.
Its modular design lets you assemble the tubes to form barriers of any length, and if a section breaks, only that section is replaced. The clean, continuous lines and high-visibility colours also look good in your facility.
| Model | Length | No. of feet | Weight |
| BL950 | 950 mm | 2 | 4.1 kg |
| BL1500 | 1,500 mm | 3 | 6.22 kg |
| BL2050 | 2,050 mm | 4 | 8.34 kg |
| BL2600 | 2,600 mm | 5 | 10.46 kg |
| BL3150 | 3,150 mm | 6 | 12.58 kg |
| BL3700 | 3,700 mm | 7 | 14.7 kg |
| BL4250 | 4,250 mm | 8 | 16.82 kg |
| BL4800 | 4,800 mm | 9 | 18.94 kg |
| BL5350 | 5,350 mm | 10 | 21.06 kg |
Protection of walls, panels, racks and objects in cold rooms, cutting rooms and warehouses with manual pallet truck and electric stacker traffic.
Each foot has a class 8.8 steel rod, Ø 20 mm, that runs through the part and is embedded 150 mm in the floor, held by a PVC housing and a steel nut that presses on the fixing piece and the tube joint. The distance between anchors is 550 mm.
For maximum-protection areas there are also solid polyethylene barriers, and to protect pillars, doors and racks, safety bollards. More information at josebernad.com.
Not sure which protection you need? We advise you with no obligation: call us on +34 967 219 649, message us on WhatsApp or write to [email protected].
Light barriers are made of polypropylene, modular and flexible on impact, designed for manual pallet trucks and electric stackers. Solid barriers are made of solid high-density polyethylene and are designed for maximum-protection areas. Both have a through core of class 8.8 steel rod and are anchored with a PVC housing and nut.
With a class 8.8 steel rod, Ø 20 mm, per foot, embedded 150 mm in the floor and held with a PVC housing and nut. The distance between anchors is 550 mm.
From 950 to 5,350 mm, with 2 to 10 feet depending on the length (models BL950 to BL5350). As it is modular, barriers of any length can be formed.
Only the damaged section is replaced.
Yes. It is made of EP300K polypropylene, which complies with Regulation (EC) 1935/2004 and Regulation (EU) 10/2011 on materials and articles in contact with food.
Ask for a price at [email protected] or call +34 967 219 649, stating the length you need.
| Type | Single light barrier |
|---|---|
| Catalogue references | BL950 to BL5350 |
| Suitable for | Manual pallet truck and electric stacker |
| Material | EP300K polypropylene (ethylene-propylene copolymer), injection-moulded, 8 mm thick |
| Joints | Ribbed male/female joints with an elastomer seal |
| Core | Class 8.8 steel rod, Ø 20 mm, running through and embedded 150 mm in the floor |
| Anchoring | PVC housing and steel nut that holds the rod; 150 mm stem |
| Distance between anchors | 550 mm |
| Lengths | From 950 to 5,350 mm (2 to 10 feet) |
| Design | Modular, any length |
| Maintenance | Maintenance-free; if a section breaks, only that section is replaced |
| Food use | Suitable: EP300K polypropylene complies with Regulation (EC) 1935/2004 and Regulation (EU) 10/2011 on food contact materials |
| Manufacturing | Made in Spain |
