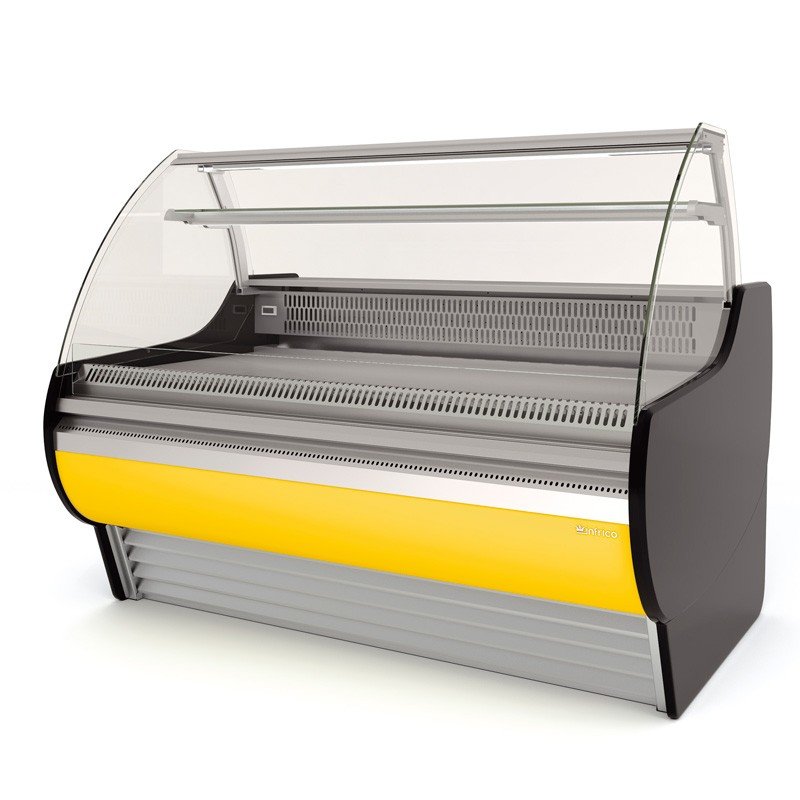

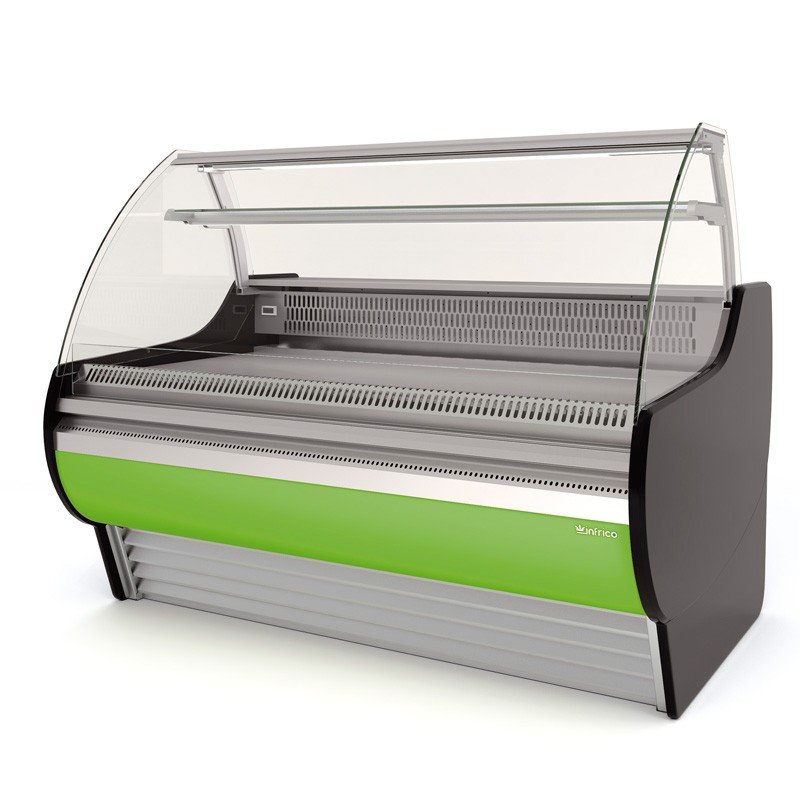

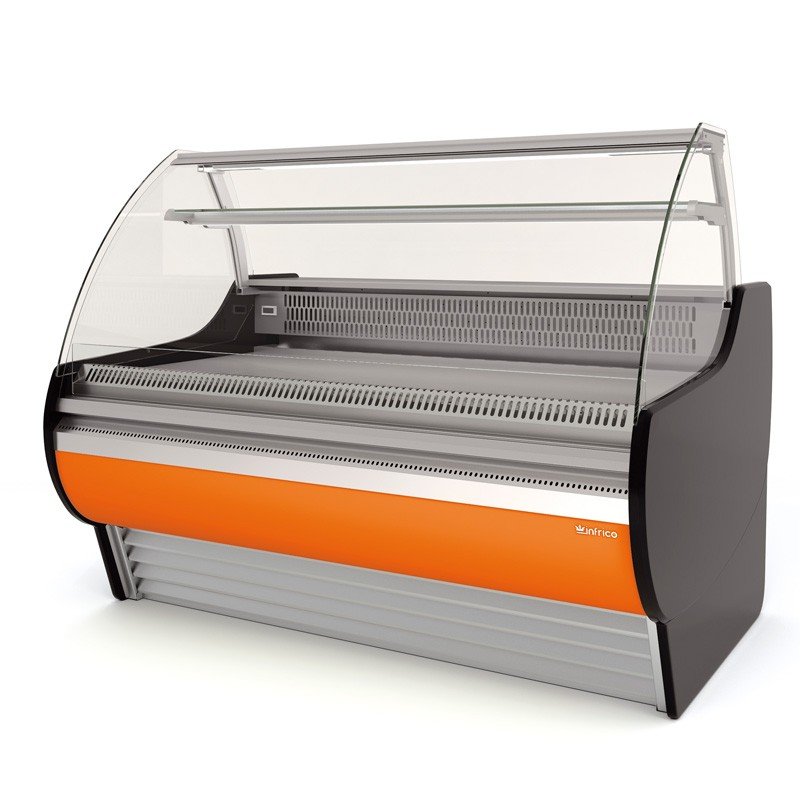

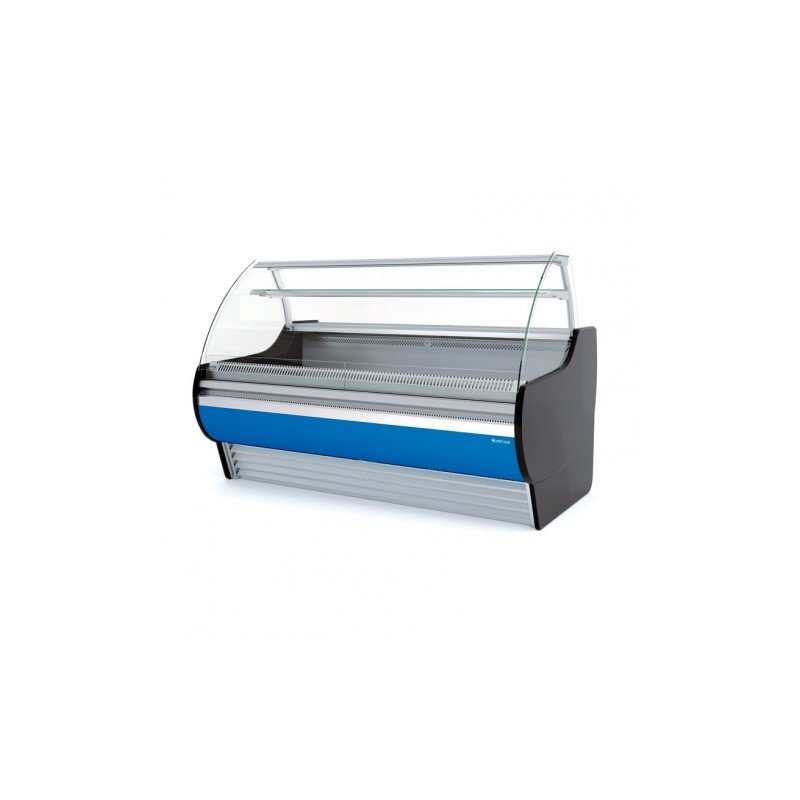

SEMI-STATIC REFRIGERATED MODULAR DISPLAY CASE MADRID SERIES

Description

Semi-static refrigerated modular display case Madrid series VMD with laminated steel plate available in different colors and stainless steel worktop.

EXTERIOR
– Laminated steel plate
– AISI 304 18/10 stainless steel worktop
– Front opening curved tempered security glass
– Enamelled steel base
– Storage door opening 425×255
– DM lacqued decoration

INTERIOR
– AISI 304 18/10 exhibition area
– Upper profile LED lighting “Grolux” type
– LED lighting shelf “Grolux” type
– Modular line

INSULATION
– Free CFC’s high density (40kg/m3) polyurethane insulation
with low GWP & zero ODP effect

REFRIGERATION
– Semi-static by gravity coil
– Stainless steel evaporative doble trays first by
gas second by electrical resistance
– Control of the final defrost temperature
– Climatic class 4

Sides: 30+30 mm
Shelves: 1
Semi-static evaporation
Automatic Defrost
Digital Control

Temperature: 0ºC/+6ºC

*Available in different colors:
Violet, Orange, Blue, Maroon, Yellow
Sky blue, Red, Beige, Dark Green
Pink, White, Pistachio

*Available in different measures:

VMD9RE 938x1150x1290 mm

Doors: 1

Compressor 1/2 HP

Consumption: 9,7 kWh/24h

Power: 695W

Capacity: 131L

Cooling capacity: 817W

–

VMD12RE 1250x1150x1290 mm

Doors: 2

Compressor 5/8 HP

Consumption: 13,2 kWh/24h

Power: 945W

Capacity: 175L

Cooling capacity: 1096W

–

VMD15RE 1562x1150x1290 mm

Doors: 2

Compressor 3/4 HP

Consumption: 13,9 kWh/24h

Power: 995W

Capacity: 219L

Cooling capacity: 1315W

–

VMD18RE 1875x1150x1290 mm

Doors: 3

Compressor 1 HP

Consumption: 17,2 kWh/24h

Power: 1225W

Capacity: 263L

Cooling capacity: 1506W

–

VMD25RE 2575x1150x1290 mm

Doors: 4

Compressor 1+1/6 HP

Consumption: 20,8 kWh/24h

Power: 1485W

Capacity: 350L

Cooling capacity: 2009W
