Talsa FP30 automatic stuffer: hydraulic piston with digital portioner, 30 L hopper, 15″ touch screen and versions with twister and motorised linker.
Own technical service and 40 years of experience. Request your no-obligation quote.
TALSA FP30 AUTOMATIC SAUSAGE STUFFER
Price on request
Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.
Description

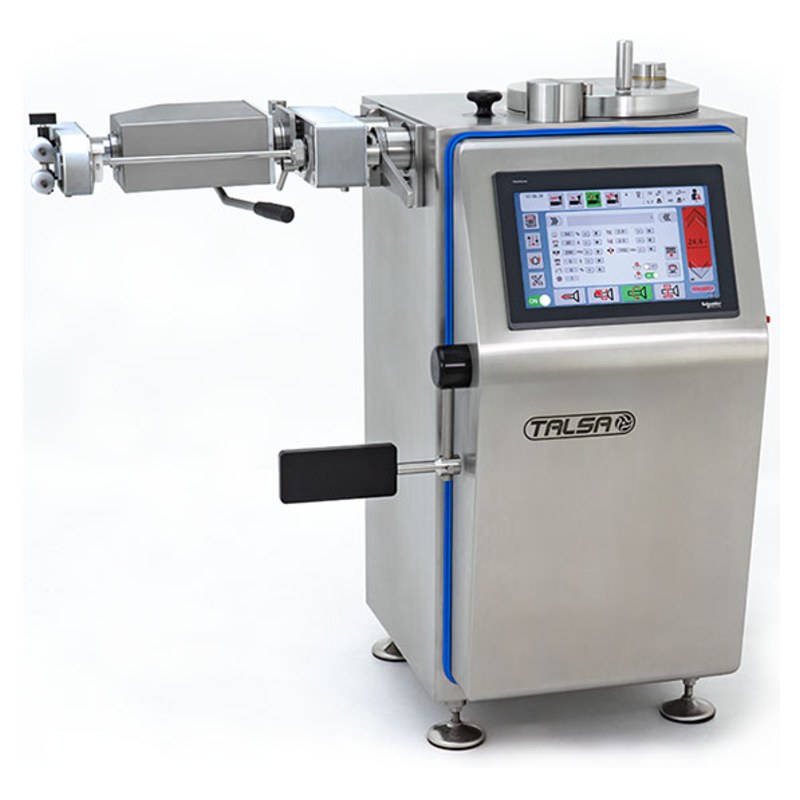

Talsa FP30 automatic stuffer with digital portioner, 30 litres
The Talsa FP30 is a hydraulic piston stuffer with a digital portioner for medium-sized workshops and processors that want to fill and portion many different products accurately with a single machine. Its 30 litre hopper allows medium or small batches with no waste and quick product changes.

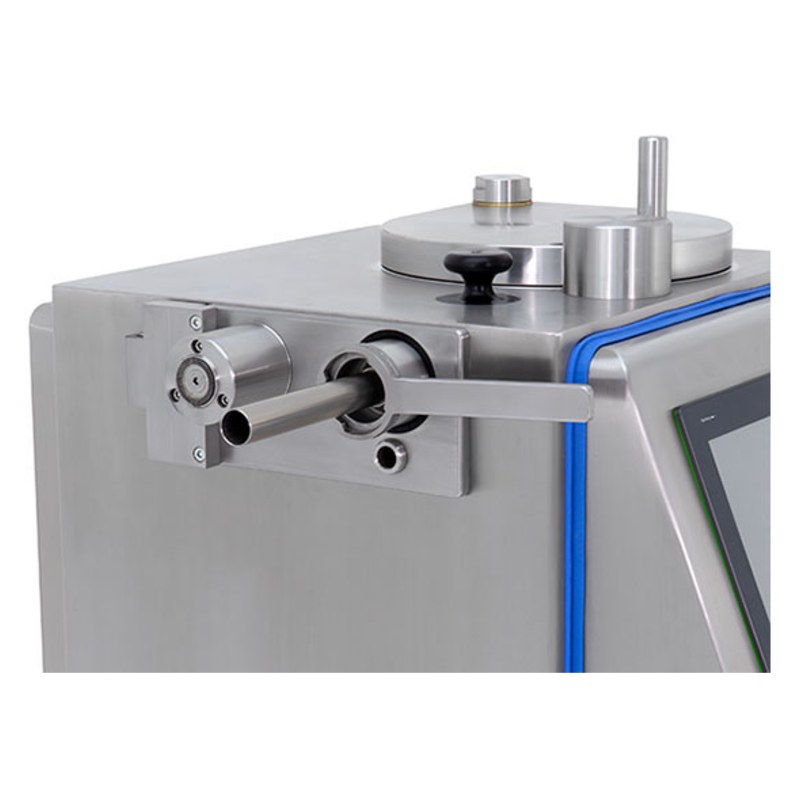

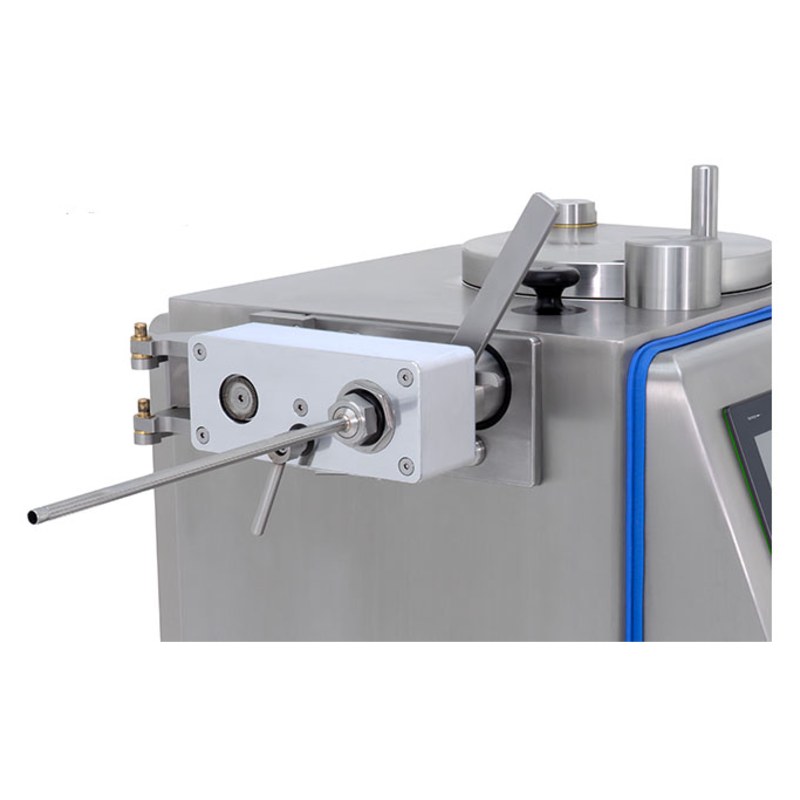

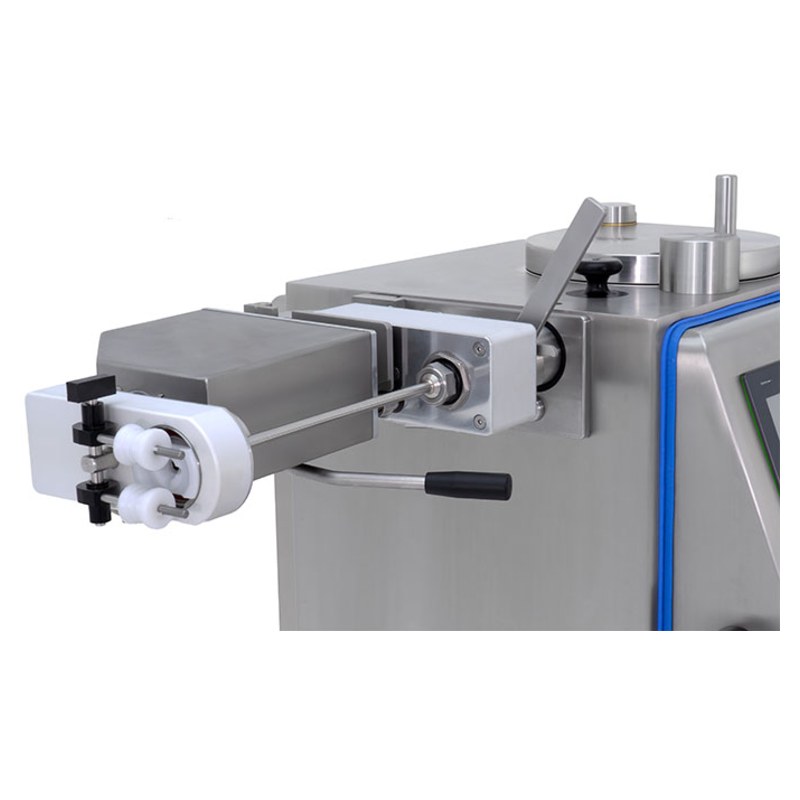

It comes in three versions: FP30e (filling and portioning), FP30t (portioning and twisting by funnel rotation, 1 to 15 turns) and FP30s (portioning and twisting with a motorised linker, which portions and twists effortlessly with precise twist points).
Features

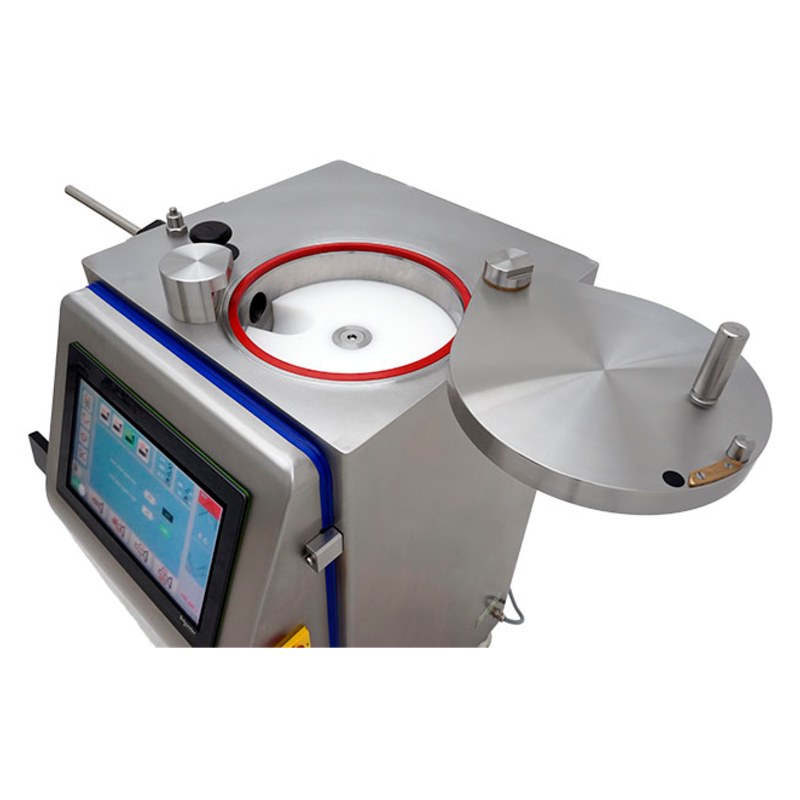

- 30 litre hopper (± 25 kg of product) for medium or small batches with no waste and quick product changes.

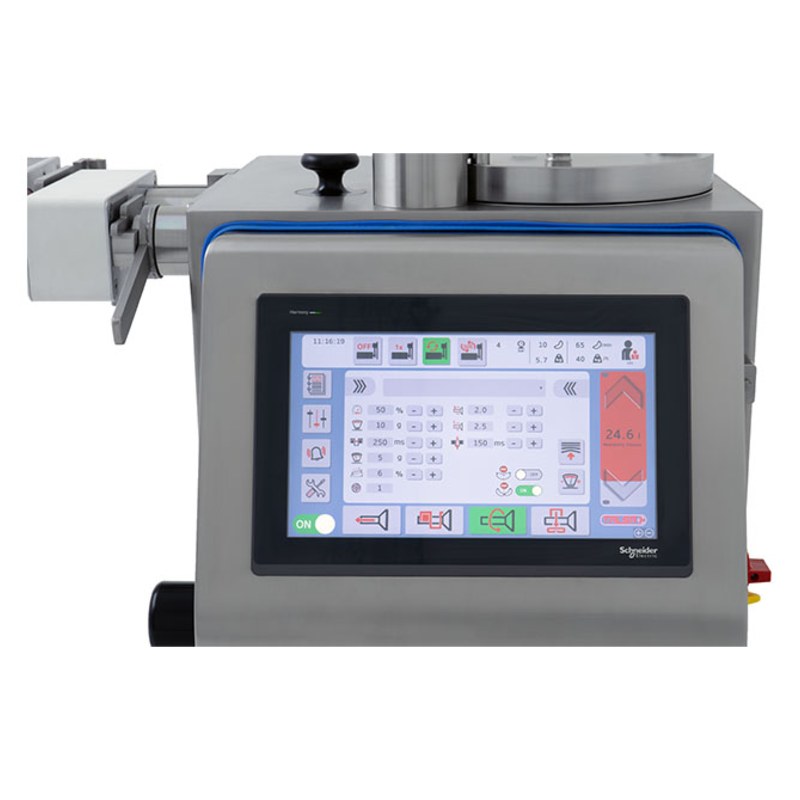

- 15″ Schneider touch screen with all the information in view, weight and density assistants, stored recipes and software in 4 languages.
- Portions up to 25 kg with ± 1 g accuracy and weight calibration according to product density.
- Up to 300 portions per minute with 25 g portions.
- Single or continuous operation, programmable number of portions with automatic stop and batch and total counters.
- Fills natural, collagen or synthetic casings, and also cans or other containers.
- Fully AISI 304 stainless steel frame, smooth surfaces with no corners, sealed panels and closed underside.
- Powerful motor and high hydraulic pressure for dense or cold products, with temperature-controlled oil cooling.
- Hydac and Schneider Electric hydraulic and electrical components, and Balluff IO-Link internal communication.
- Remote support over a secure Internet connection (cable or mobile) and Industry 4.0 solutions.
- Adjustable stainless steel feet with rubber anti-vibration mounts.
Accessories and options

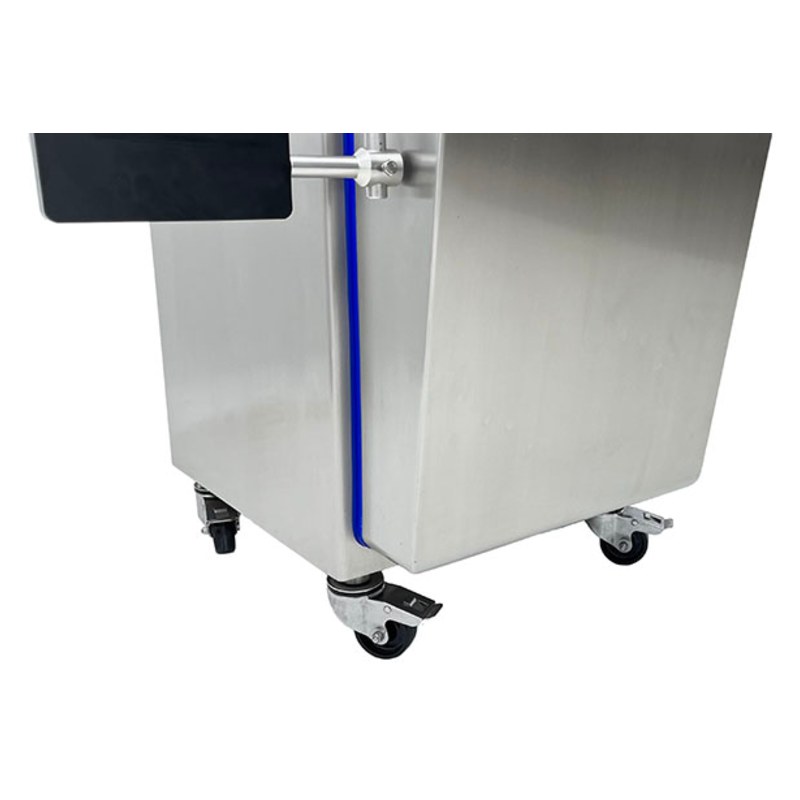

Includes 5 funnels, Ø 14, 20, 25, 30 and 43 mm, hydraulic oil and piston extractor key. Optional: 4 stainless steel swivel wheels with brake, additional standard, long or extra-long funnels for the linker, or 90° curved funnels to fill containers, connection to an external clipper.
See all sausage stuffers.
José Bernad is an authorised Talsa distributor, with its own technical service and 40 years of experience: request your no-obligation quote.
Specifications
| Weight | 374 kg |
|---|---|
| Model | FP30 |
| Brand | Talsa |
| Type | Automatic hydraulic piston stuffer with digital portioner |
| Versions | FP30e: filling and portioning · FP30t: portioning and twisting by funnel rotation (1 to 15 turns) · FP30s: portioning and twisting with motorised linker |
| Hopper volume | 30 L |
| Product capacity | ± 25 kg |
| Portioning | Up to 25 kg per portion, ± 1 g accuracy; up to 300 portions/min with 25 g portions |
| Control | 15" Schneider touch screen, recipes, 4 languages, remote support |
| Power | 2.2 kW (3 HP) |
| Maximum current | 7.5 A at 400/380 V · 12.1 A at 230/220 V |
| Construction | AISI 304 stainless steel (frame, fasteners and components) |
| Standard equipment | 30 litre hopper (± 25 kg of product) for medium or small batches with no waste and quick product changes · 15" Schneider touch screen with all the information in view, weight and density assistants, stored recipes and software in 4 languages · Portions up to 25 kg with ± 1 g accuracy and weight calibration according to product density · Up to 300 portions per minute with 25 g portions · Single or continuous operation, programmable number of portions with automatic stop and batch and total counters · Fills natural, collagen or synthetic casings, and also cans or other containers · Fully AISI 304 stainless steel frame, smooth surfaces with no corners, sealed panels and closed underside · Powerful motor and high hydraulic pressure for dense or cold products, with temperature-controlled oil cooling · Hydac and Schneider Electric hydraulic and electrical components, and Balluff IO-Link internal communication · Remote support over a secure Internet connection (cable or mobile) and Industry 4.0 solutions · Adjustable stainless steel feet with rubber anti-vibration mounts |
| Included accessories | 5 funnels, outer Ø 14, 20, 25, 30 and 43 mm · hydraulic oil · stainless piston extractor key |
| Options | 4 stainless steel swivel wheels with brake · additional standard, long or extra-long funnels for the linker, or 90° curved funnels to fill containers · connection to an external clipper |
| Embalaje (an × f × al) | 90 × 70 × 130 cm (wooden crate) |
