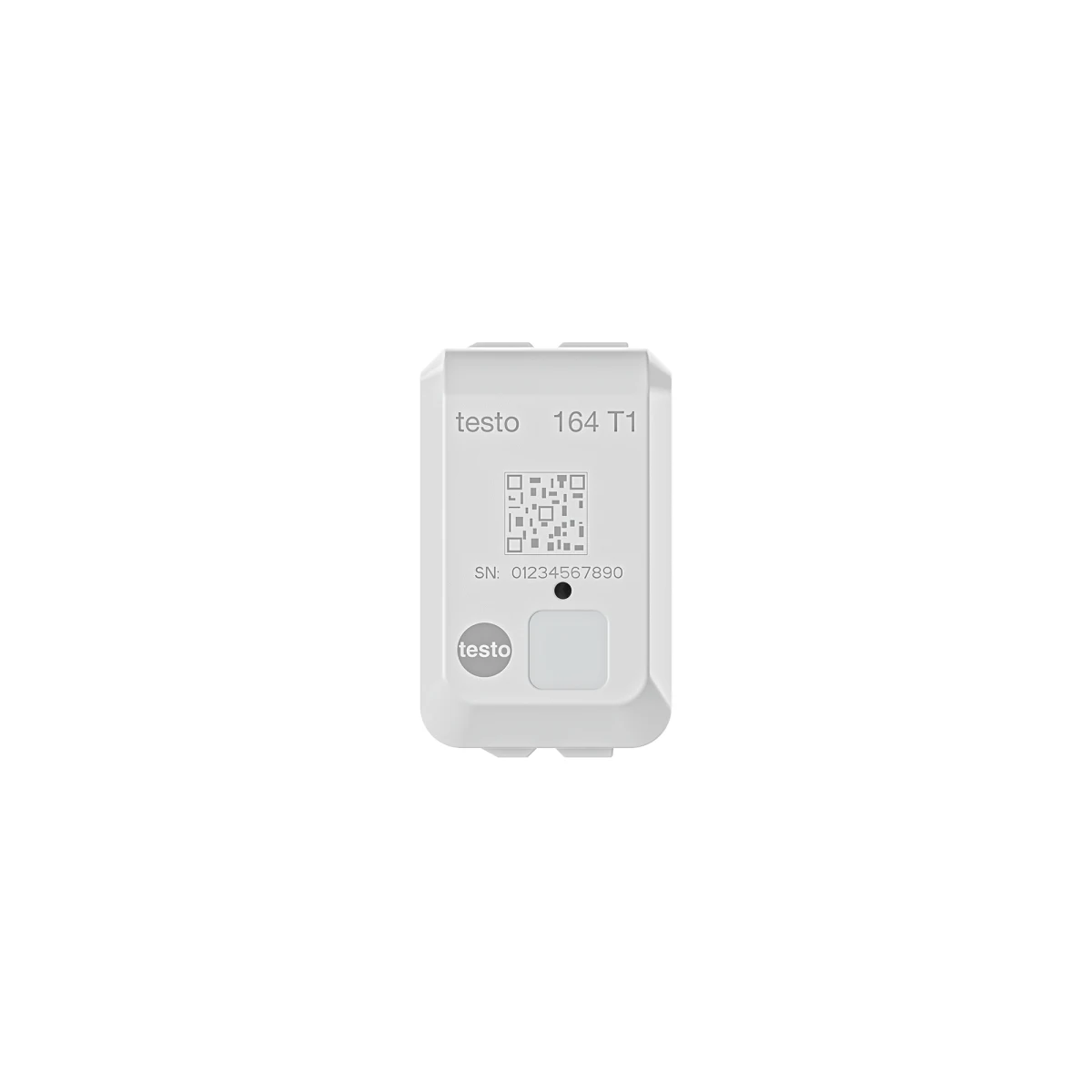

testo 164 mini online data logger: very small online loggers (15 g) with up to 12 years battery life that send data by radio to a WLAN or Ethernet gateway and the testo Saveris cloud, with alarms by push, e-mail or SMS.
Request your quote with no obligation.
Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.

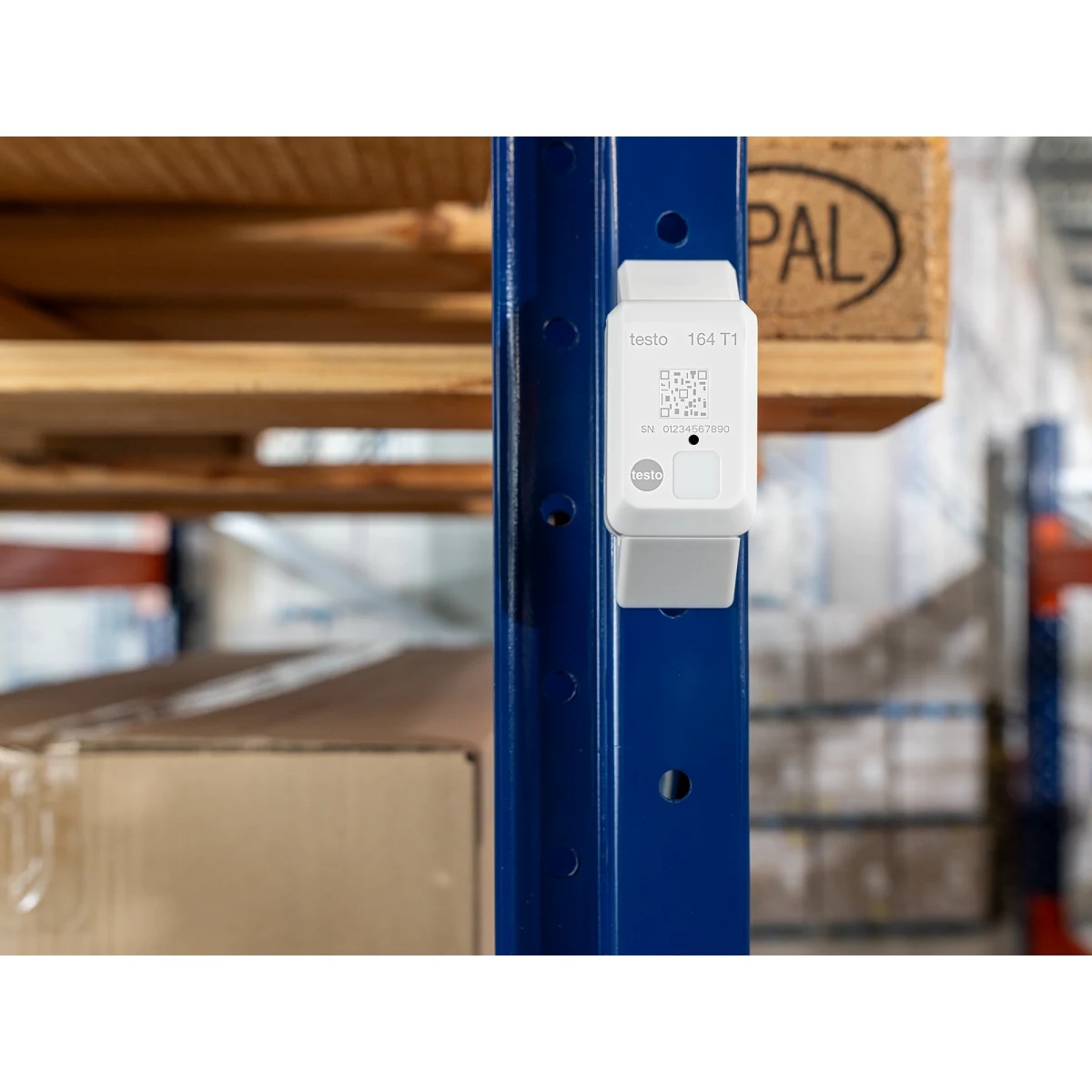

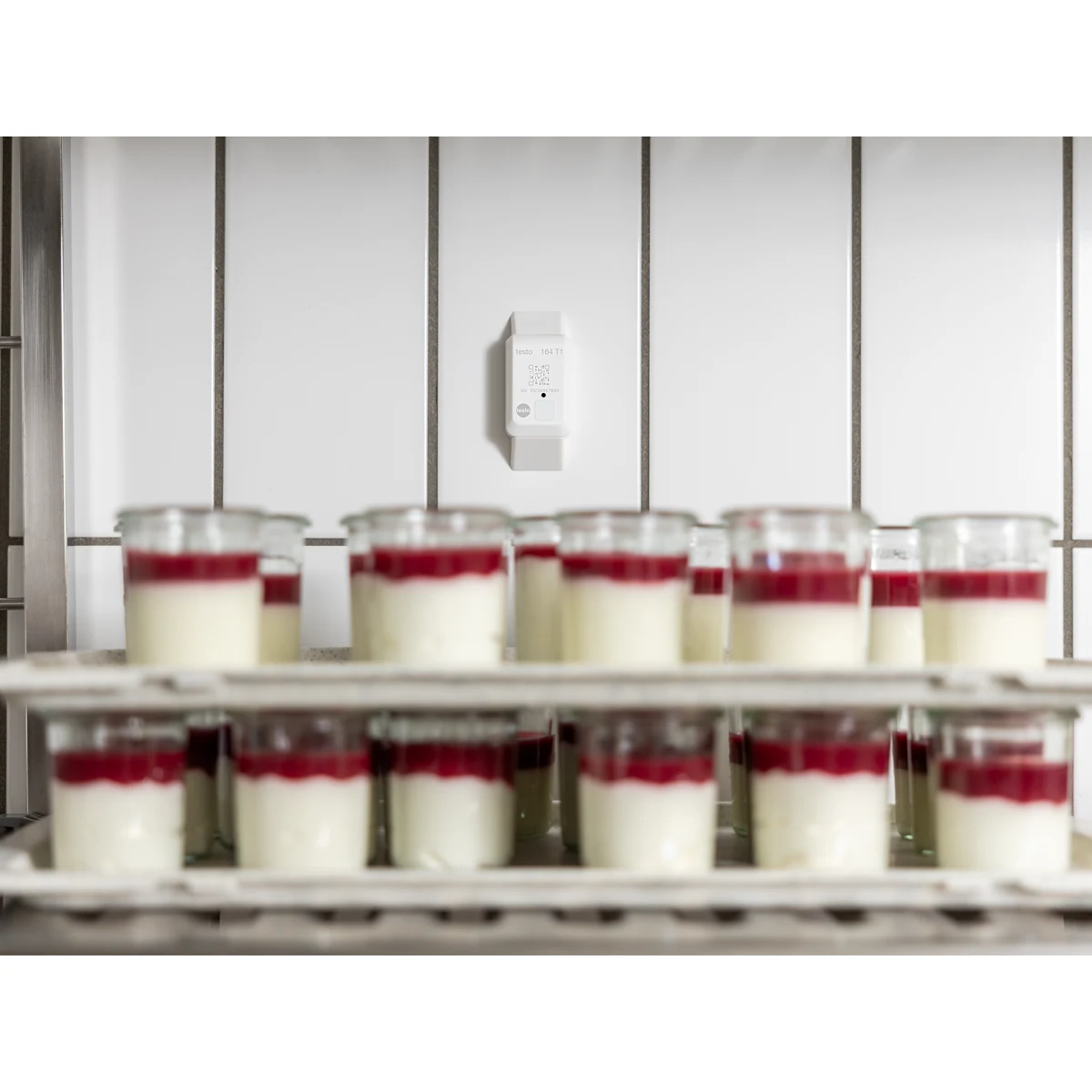

The testo 164 system is designed to monitor many points with minimal cost and maintenance: tiny loggers (15 g, IP67) with a battery lasting up to 12 years that transmit by radio to a testo 164 gateway (WLAN or Ethernet), and from there to the testo Saveris cloud.
Loggers are available for temperature (T1), humidity and temperature (H1) and door contact (DC) to detect open cold room doors. Alarms arrive by push notification, e-mail or SMS and the testo Smart App lets you check data and configure the system.
| testo reference | Version |
|---|---|
| 0572 1641 | testo 164 T1: integrated temperature |
| 0572 1644 | testo 164 H1: integrated humidity and temperature |
| 0572 1646 | testo 164 DC: door open/closed contact |
| 0572 1648 | testo 164 WLAN gateway |
| 0572 1649 | testo 164 Ethernet gateway |
The system needs at least one testo 164 gateway (WLAN or Ethernet) and a testo Saveris cloud account.
See the specifications table for technical data.
Price on request: add it to your quote request and we will reply with price and lead time.
| Weight | 0,015 kg |
|---|---|
| Reference | 0572 1641 (testo 164 T1) |
| Brand | testo |
| Model | testo 164 T1 / H1 / DC y gateways |
| Type | Mini online data logger with gateway and testo Saveris cloud |
| Measuring range | T1: -30 to +70 ºC; H1: -10 to +50 ºC and 0 to 100 %RH; DC: door open/closed |
| Accuracy | ±0.5 ºC; ±2 %RH (35 to 65 %RH) |
| Measuring interval | 1 min to 24 h |
| Connectivity | Sub-1 GHz radio to the testo 164 gateway (WLAN or Ethernet) and testo Saveris cloud |
| Alarm | Push, e-mail or SMS |
| Protection rating | IP67 (T1) |
| Power supply | Built-in battery, up to 12 years (15 min interval) |
| Dimensions | 62.6 x 38 x 17.5 mm |
| Weight | 15 g |
| Standards | EN 12830; HACCP international; NSF |
