testo 175 data logger: temperature and humidity loggers with display, 1 million readings, up to 3 years battery life and USB or SD card download; EN 12830 compliant for cold chain monitoring.
Request your quote with no obligation.
testo 175 data logger with display (T1, T2, T3, H1)
Price on request
Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.
Description

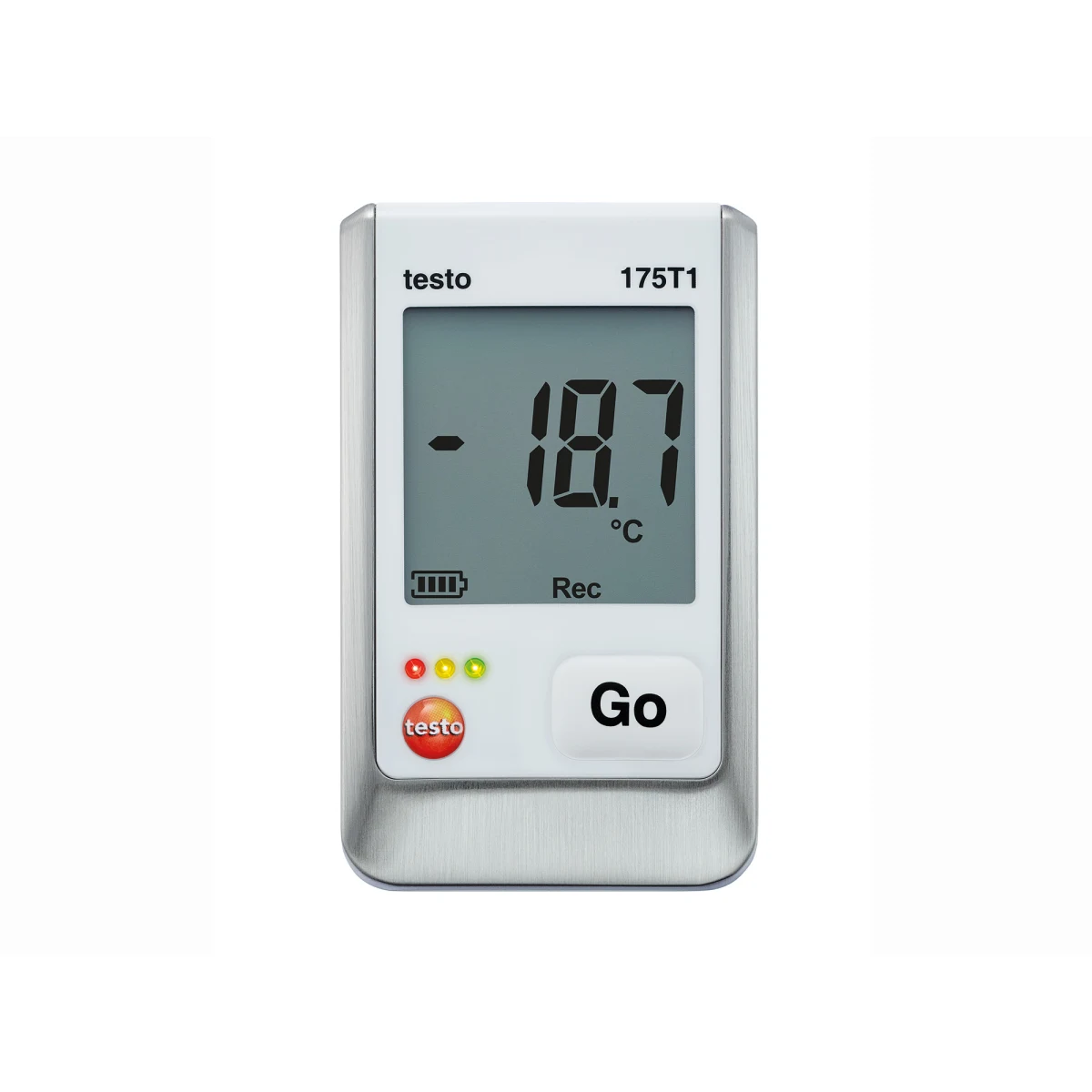

testo 175 data logger
The testo 175 range are loggers with a display that always shows the current value and limit values, ideal for monitoring cold rooms, warehouses and transport. They store up to 1 million readings and the battery lasts up to 3 years.
Data are read out via USB or SD card and analysed with testo ComSoft software. Versions: T1 with internal sensor, T2 with internal sensor and external probe connection, T3 with two thermocouple inputs (up to +1,000 ºC) and H1 for humidity and temperature with dew point. Set 0572 1750 includes 3 T1 loggers, USB cable and SD card.
Key features
- Display with current value and alarms
- 1 million reading memory
- Read-out via USB or SD card
- Up to 3 years battery life

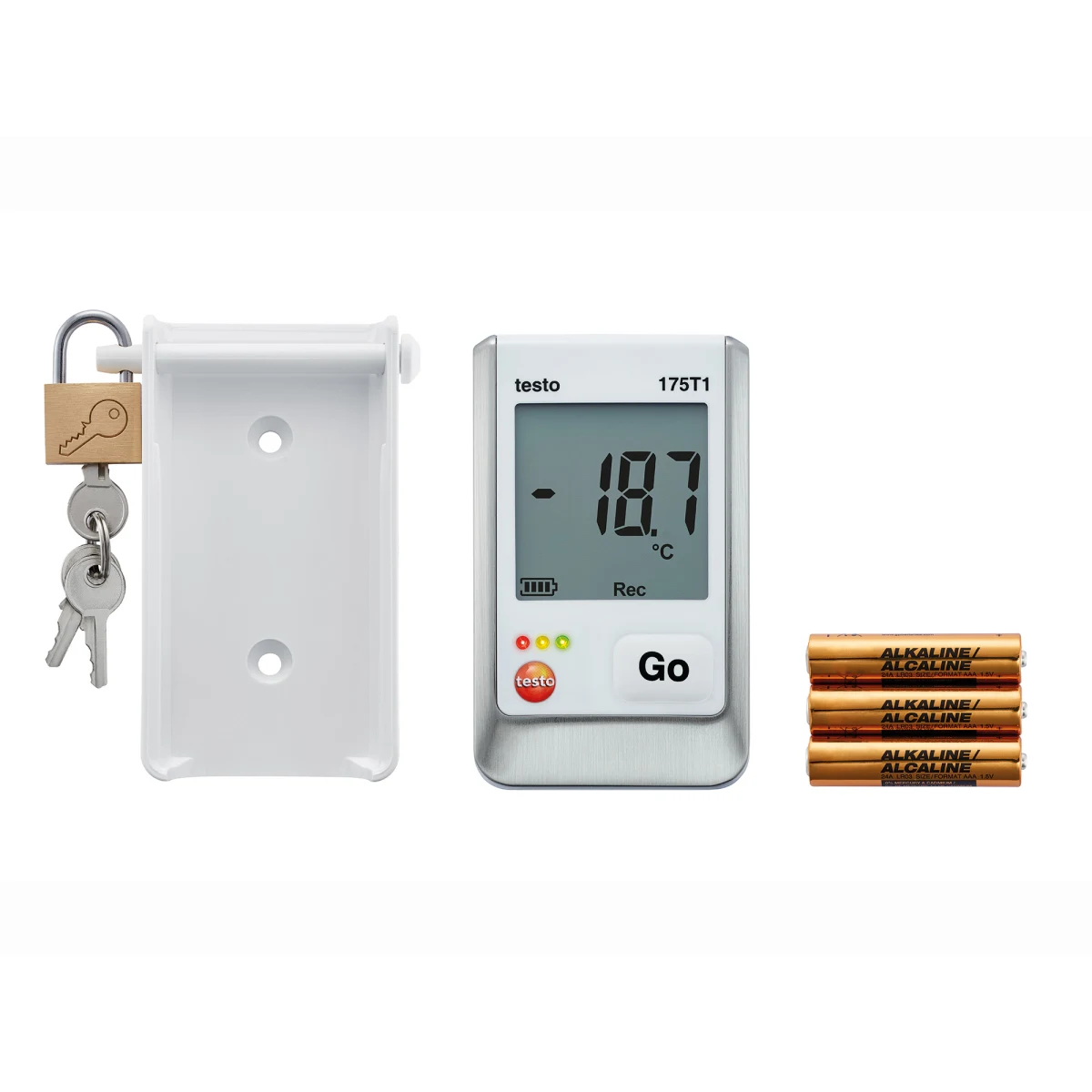

- Wall bracket with lock
- DIN EN 12830
Applications

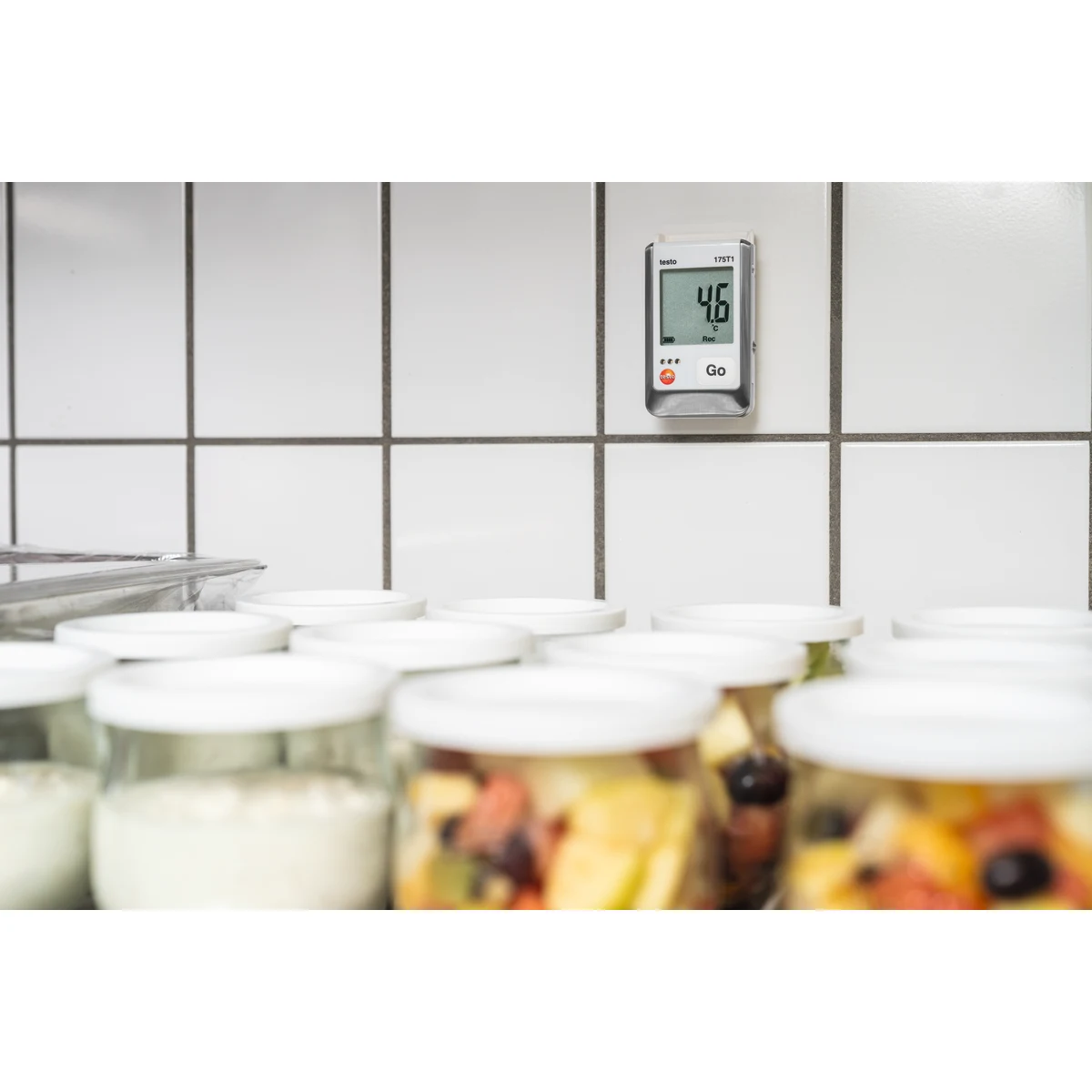

- Cold rooms and freezer rooms
- Warehouses and cold chain
- Thermal processes (testo 175 T3)
- Curing and drying rooms (testo 175 H1)
Versions and references
| testo reference | Version |
|---|---|
| 0572 1751 | testo 175 T1: 1 internal temperature channel |
| 0572 1752 | testo 175 T2: internal temperature and external NTC probe connection |
| 0572 1753 | testo 175 T3: 2 thermocouple probe channels |
| 0572 1754 | testo 175 H1: humidity and temperature |
| 0572 1750 | Set of 3 testo 175 T1 with USB cable and SD card |
The USB cable for programming and the SD card are sold separately (included in set 0572 1750).
See the specifications table for technical data.
Downloads
- testo 175 T1 / T2 data sheet (PDF, 565 KB)
- testo 175-T1, -T2, -T3, -H1 instruction manual (PDF, 1.1 MB)
Price on request: add it to your quote request and we will reply with price and lead time.
Specifications
| Weight | 0,13 kg |
|---|---|
| Reference | 0572 1751 (testo 175 T1) |
| Brand | testo |
| Model | testo 175 T1 / T2 / T3 / H1 |
| Type | Data logger with display |
| Channels | T1: 1 internal NTC; T2: internal + external NTC; T3: 2 thermocouples (K/T); H1: humidity and temperature |
| Measuring range | T1: -35 to +55 ºC; T2 external: -40 to +120 ºC; T3 type K: -50 to +1,000 ºC; H1: 0 to 100 %RH |
| Accuracy | T1: ±0.4 ºC; T2 external: ±0.3 ºC; H1: ±2 %RH |
| Measuring interval | 10 s to 24 h |
| Memory capacity | 1,000,000 readings |
| Interface | Mini USB and SD card slot |
| Protection rating | IP65 (T1) |
| Power supply | 3 AAA batteries; up to 3 years (15 min interval) |
| Dimensions | 89 x 53 x 27 mm |
| Weight | 130 g |
| Standards | DIN EN 12830; EU Directive 2014/30/EU; 2011/65/EU |
