testo 191 HACCP data logger: mini temperature (Pt1000, ±0.1 ºC) and pressure loggers, IP68 waterproof and resistant up to +140 ºC, to monitor sterilisation, pasteurisation and cooking of food in autoclaves.
Request your quote with no obligation.
testo 191 HACCP data logger for autoclaves and cooking
Price on request
Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.
Description
testo 191 HACCP data logger
The testo 191 are compact steel and PEEK plastic loggers designed to travel inside the process: canning autoclaves, pasteurisers, cooking ovens and industrial washers. They measure temperature with a ±0.1 ºC Pt1000 sensor (or pressure on the P1 model), are IP68 waterproof and withstand up to +140 ºC.
The battery is changed in seconds without losing tightness, and with the multi-function case several loggers can be programmed and read out at once; the software creates the documentation for the HACCP system. Versions with short rigid (T1), long rigid (T2), long flexible (T3), two flexible probes (T4) and pressure (P1).
Key features
- ±0.1 ºC Pt1000 with 0.01 ºC resolution
- IP68 waterproof and resistant up to +140 ºC
- Quick battery change without losing tightness
- Simultaneous programming and read-out of several units
- Versions with different probes and pressure
Applications

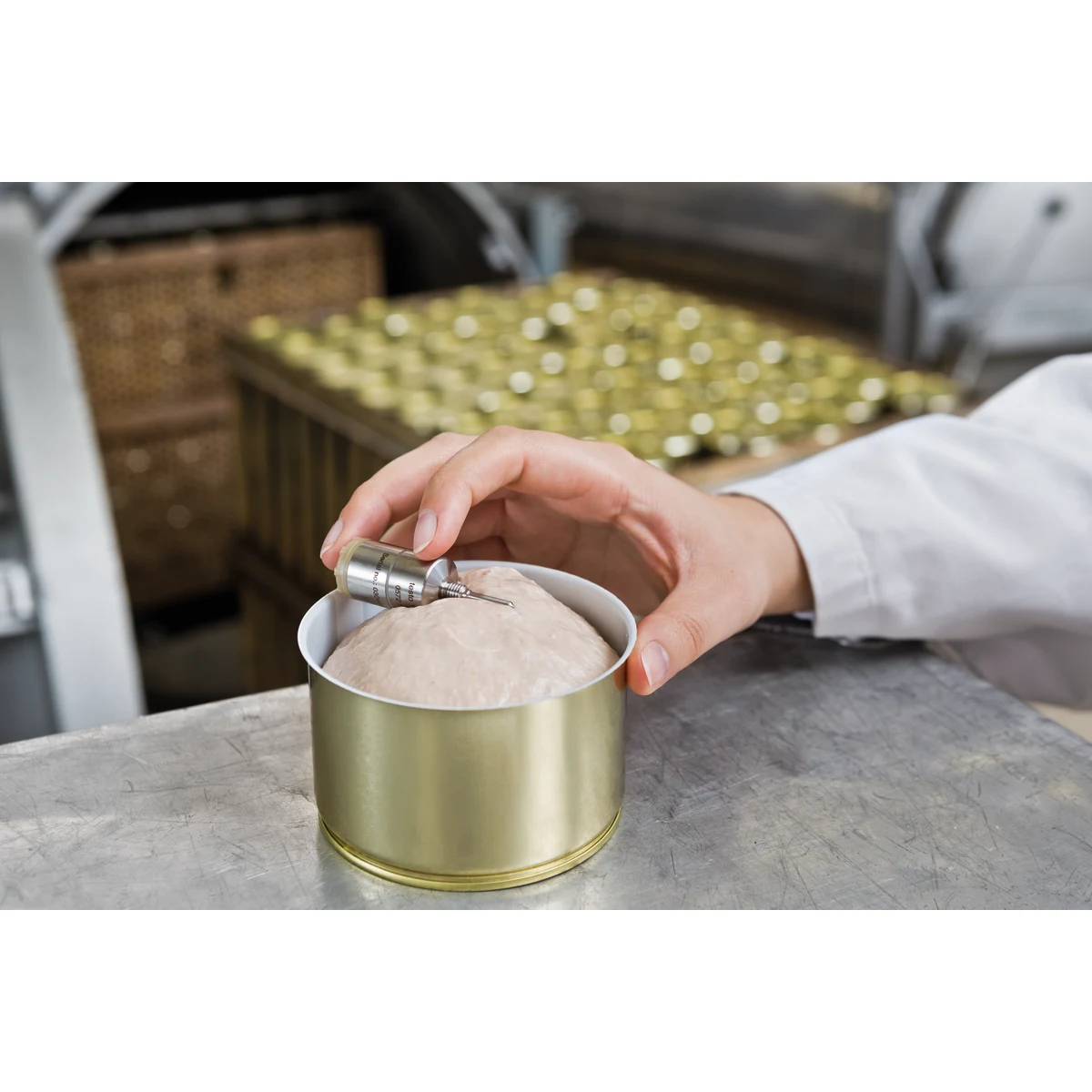

- Can sterilisation in autoclaves
- Pasteurisation and cooking of meat products
- Validation of washers and washing tunnels
Versions and references
| testo reference | Version |
|---|---|

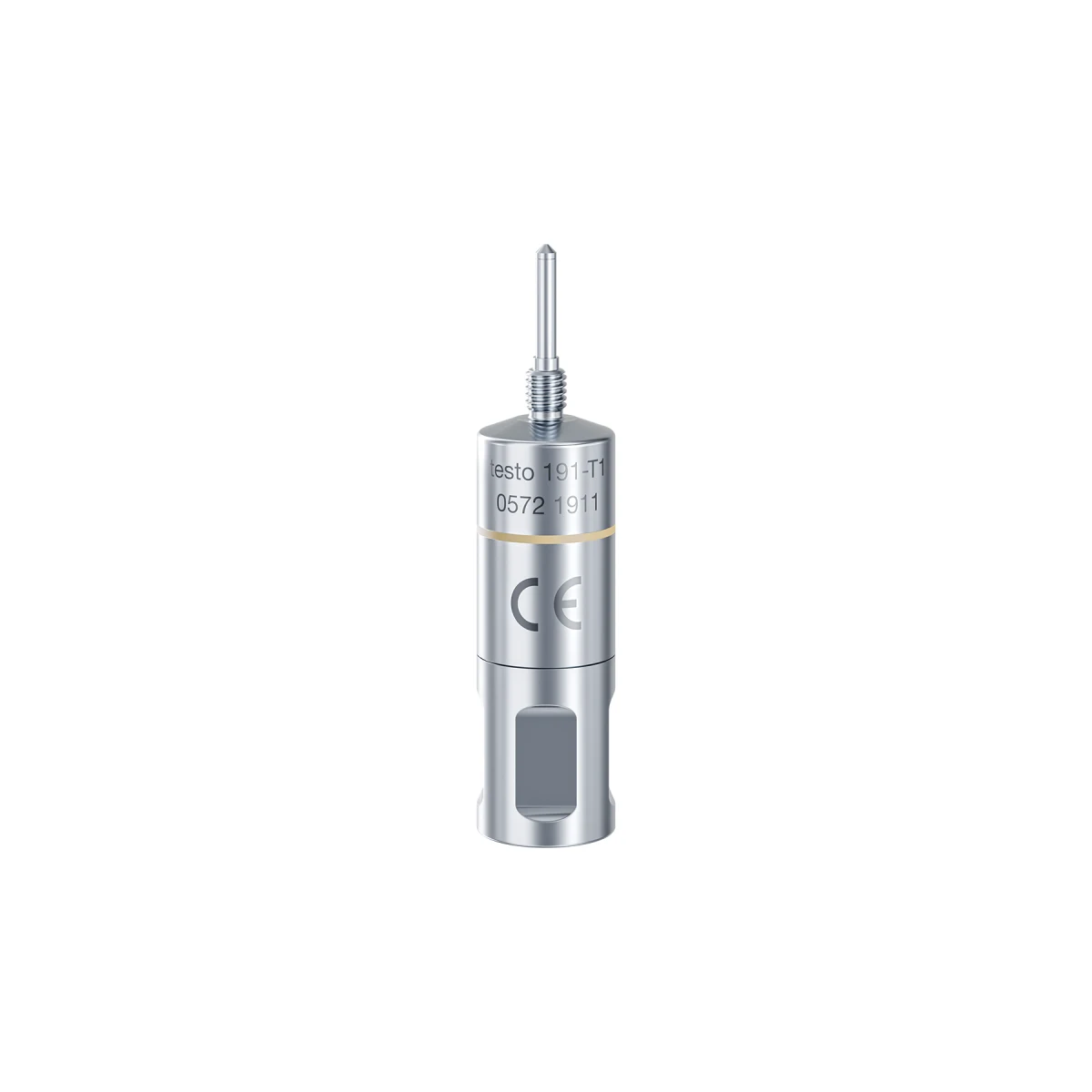

| 0572 1911 | testo 191-T1: short rigid probe |
| 0572 1912 | testo 191-T2: long rigid probe |
| 0572 1913 | testo 191-T3: long flexible probe |

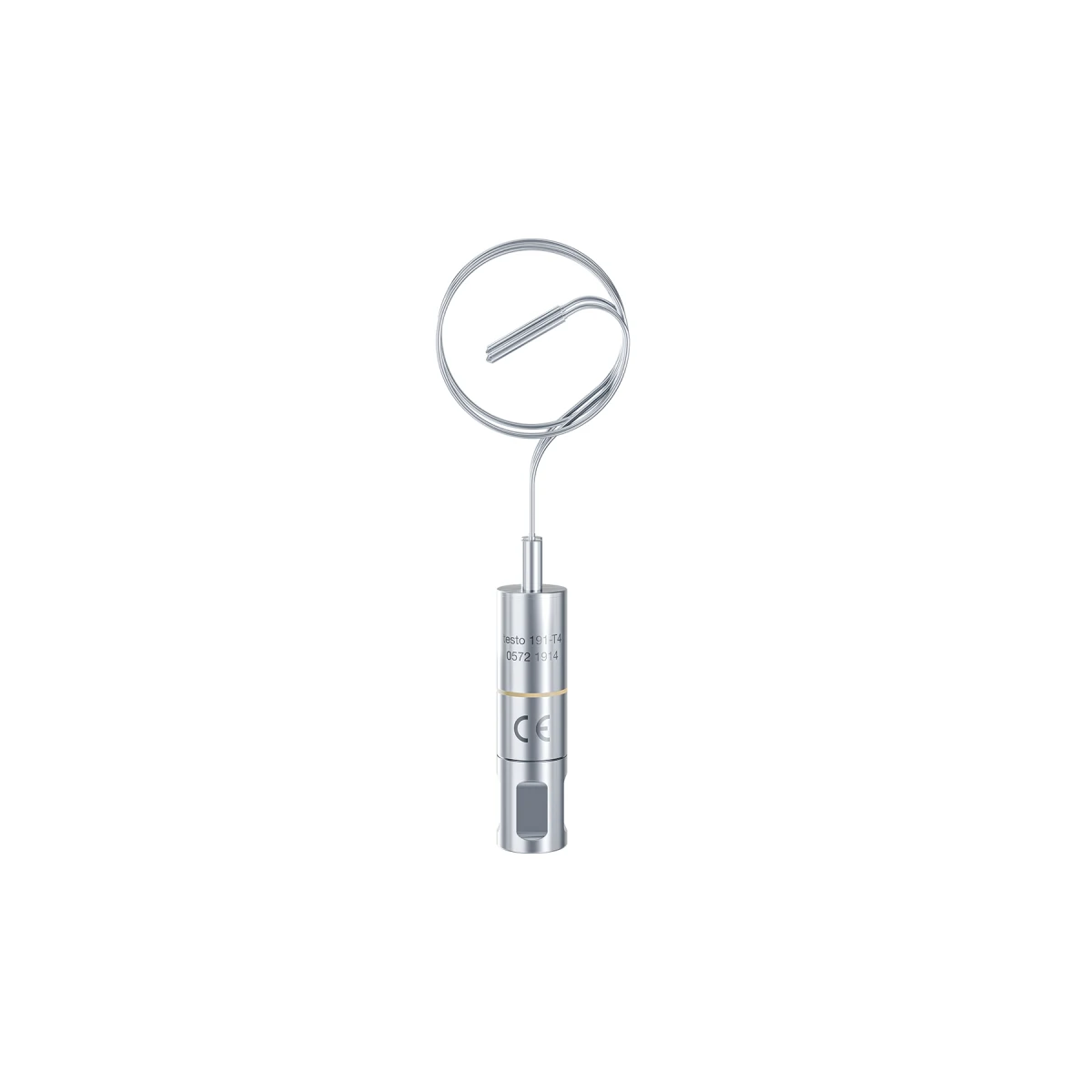

| 0572 1914 | testo 191-T4: two long flexible probes |
| 0572 1916 | testo 191-P1: absolute pressure |
The testo 191 read-out unit / multi-function case and software are needed to program and read the loggers (ask us for the complete kit).
See the specifications table for technical data.
Downloads
- testo 191 data sheet (PDF, 569 KB)
- testo 191 instruction manual (PDF, 1.2 MB)
Price on request: add it to your quote request and we will reply with price and lead time.
Specifications
| Reference | 0572 1911 (testo 191-T1) |
|---|---|
| Brand | testo |
| Model | testo 191 T1 / T2 / T3 / T4 / P1 |
| Type | HACCP data logger for sterilisation, pasteurisation and cooking processes |
| Sensor | Pt1000 (temperature); absolute pressure sensor (P1) |
| Measuring range | -50 to +140 ºC; P1: 1 mbar to 4 bar |
| Accuracy | ±0.1 ºC (-40 to +140 ºC); P1: ±20 mbar |
| Resolution | 0.01 ºC |
| Response time | t90 = 6 to 7 s |
| Measuring interval | 1 s to 24 h |
| Memory capacity | 60,000 readings |
| Housing | Steel and PEEK plastic, IP68 |
| Power supply | 1/2 AA lithium battery; 750 process hours (10 s at +121 ºC) |
| Dimensions | Ø 20 x 59 mm (without probe) |
| Standards | HACCP |
