Price on request
testo 310 II EN flue gas analyser: simple, rugged combustion analyser with O₂ and CO/H₂ sensors up to 4,000 ppm, all parameters according to DIN EN 50379-1, -3 and testo Smart App for reports and parallel measurements.
Request your quote with no obligation.
Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.

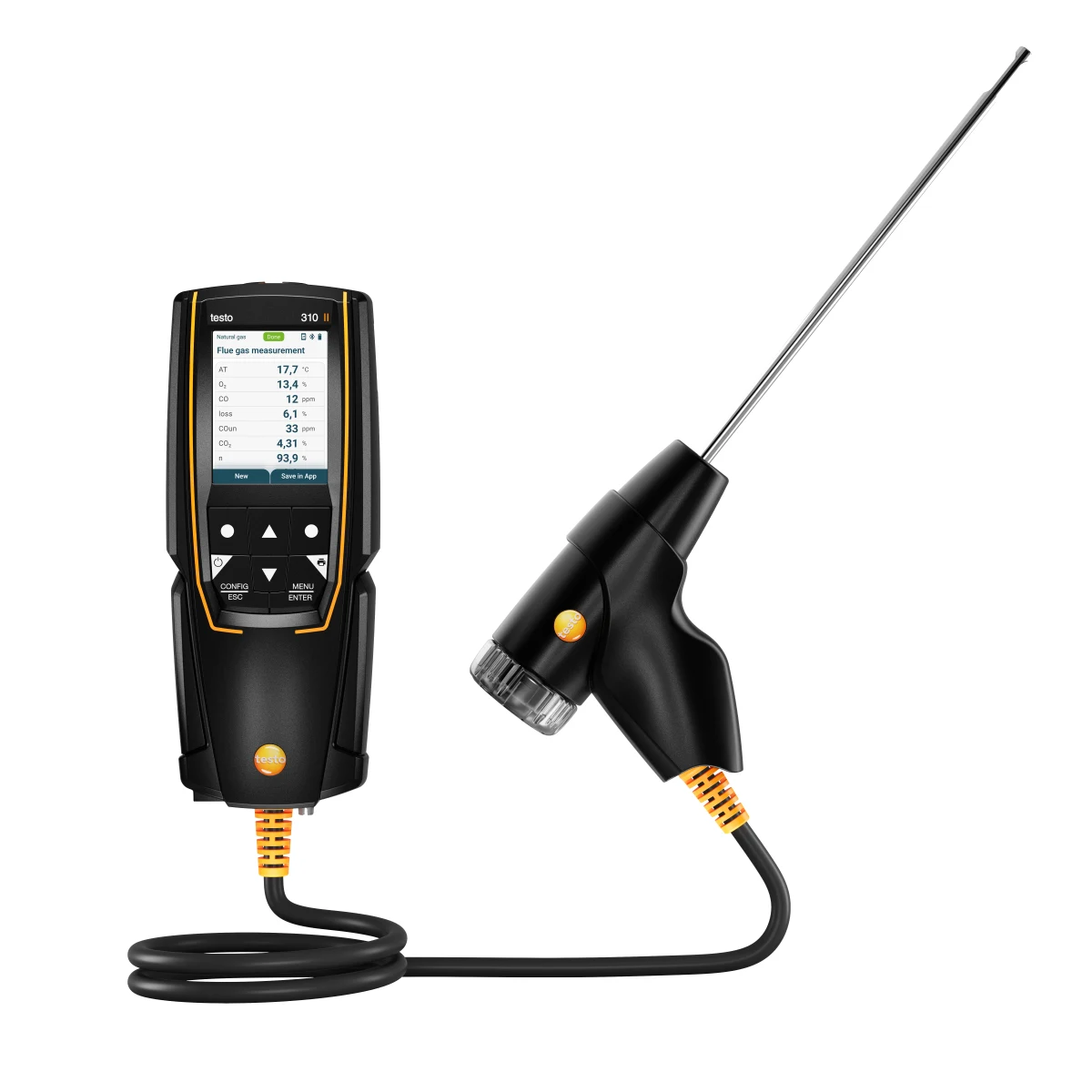

The testo 310 II EN is testo’s entry-level combustion analyser: easy to use, rugged and equipped with the essentials for boiler servicing. It displays all relevant parameters according to DIN EN 50379-1, -3 and is operated through an intuitive menu.
With the testo Smart App you can configure the display, manage customers, create reports and take parallel measurements with Smart Probes (for example gas pressure or flow and return temperatures). The printer kit lets you hand over the printout on the spot.
| testo reference | Version |
|---|---|

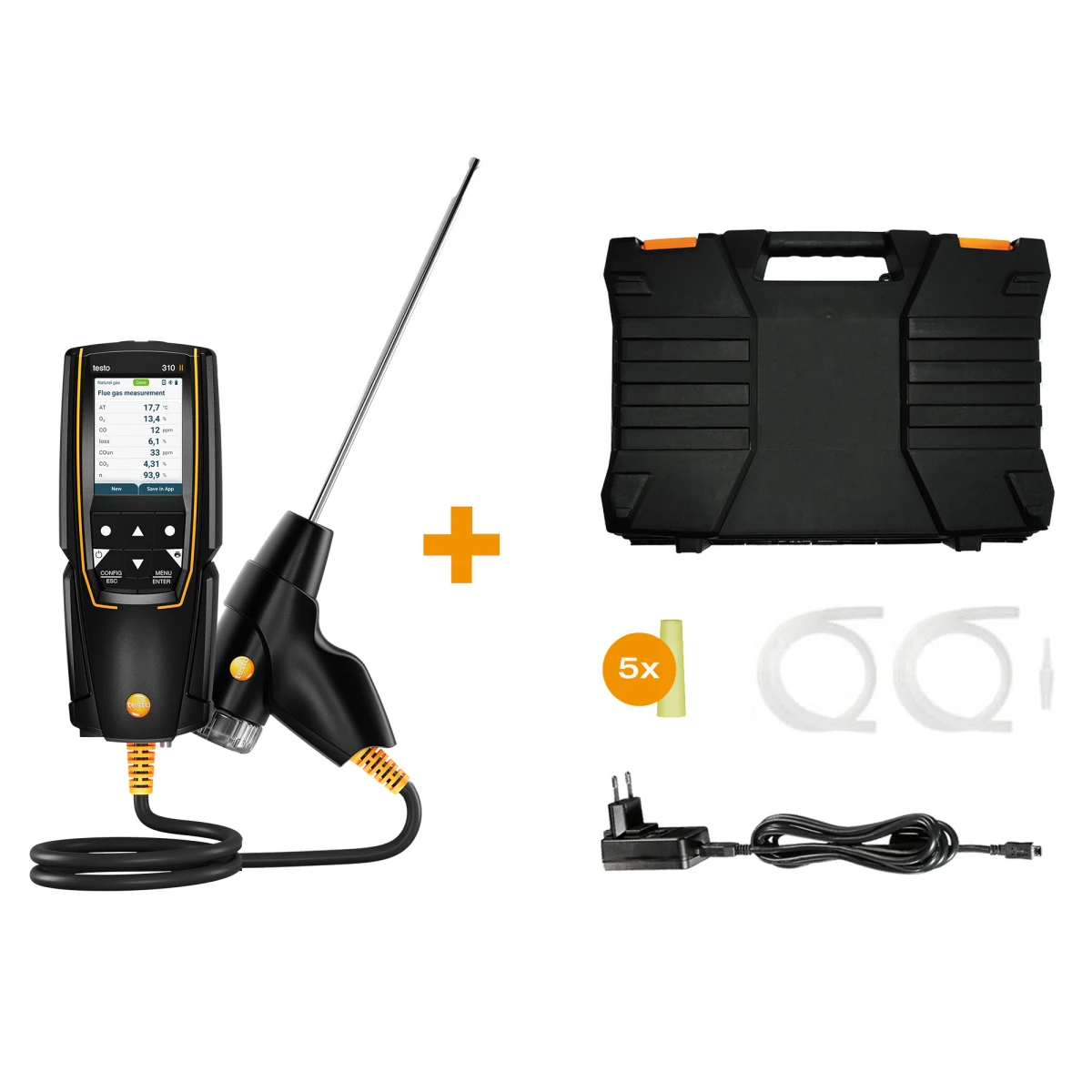

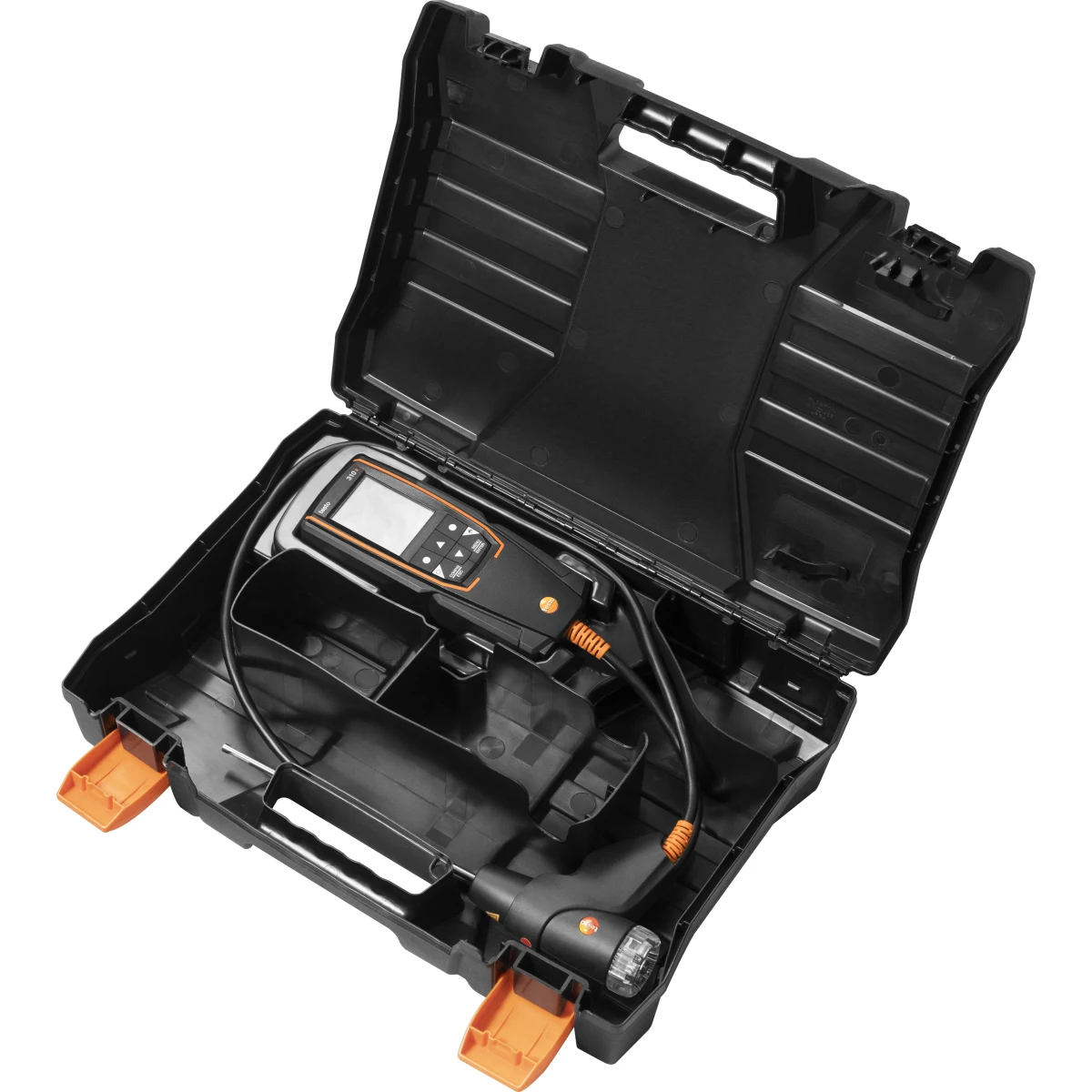

| 0563 3106 | Basic kit: analyser, 180 mm probe, probe cone, silicone hose for pressure, 5 filters and case |
| 0563 3107 | Kit with portable Bluetooth/IrDA printer, thermal paper and charger |
See the specifications table for technical data.
Price on request: add it to your quote request and we will reply with price and lead time.
| Reference | 0563 3106 (basic kit) |
|---|---|
| Brand | testo |
| Model | testo 310 II EN |
| Type | Flue gas analyser |
| Sensors | O₂ and CO/H₂ |
| O₂ | 0 to 21 vol.% (±0.2 vol.%) |
| CO con compensación de H₂ | 0 to 4,000 ppm |
| Draught | -20 to +20 hPa |
| Pressure | -40 to +40 hPa |
| Temperature | -20 to +400 ºC (flue gas and ambient) |
| Ambient CO | 0 to 4,000 ppm |
| Display | 7-line graphic display |
| Connectivity | Bluetooth with testo Smart App; Bluetooth/IrDA printer |
| Power supply | 1500 mAh rechargeable battery, over 8 h |
| Protection rating | IP40 |
| Operating temperature | -5 to +45 ºC |
| Dimensions | 203 x 83 x 46 mm |
| Instrument weight | Approx. 660 g |
| Standards | DIN EN 50379-1, -3 |
