testo 350 industrial emission analyser: portable flue gas analysis system with an analyser box for up to 6 sensors, detachable Bluetooth control unit, integrated gas conditioning and dilution for all sensors. For industrial emissions and engines.
Request your quote with no obligation.
Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.

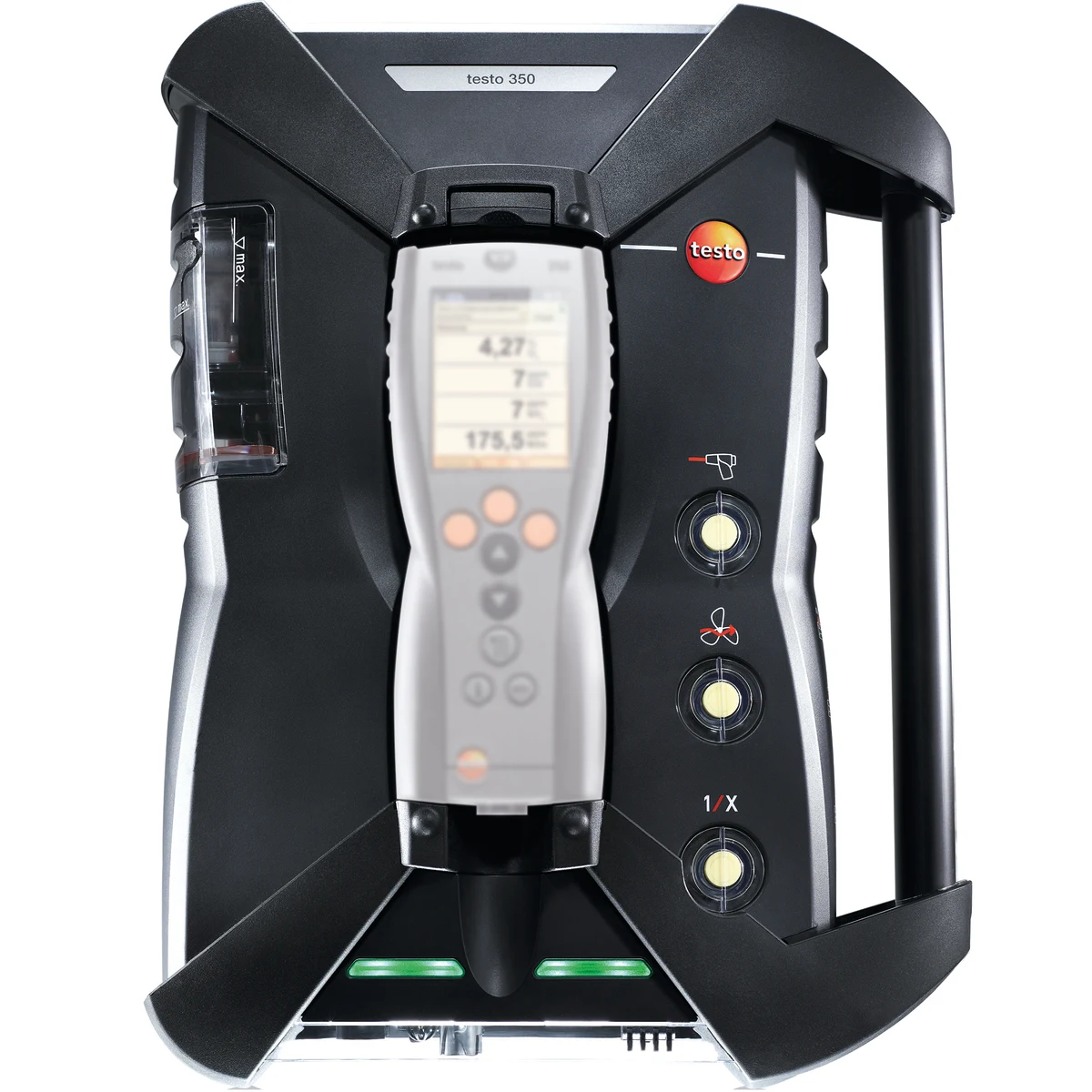

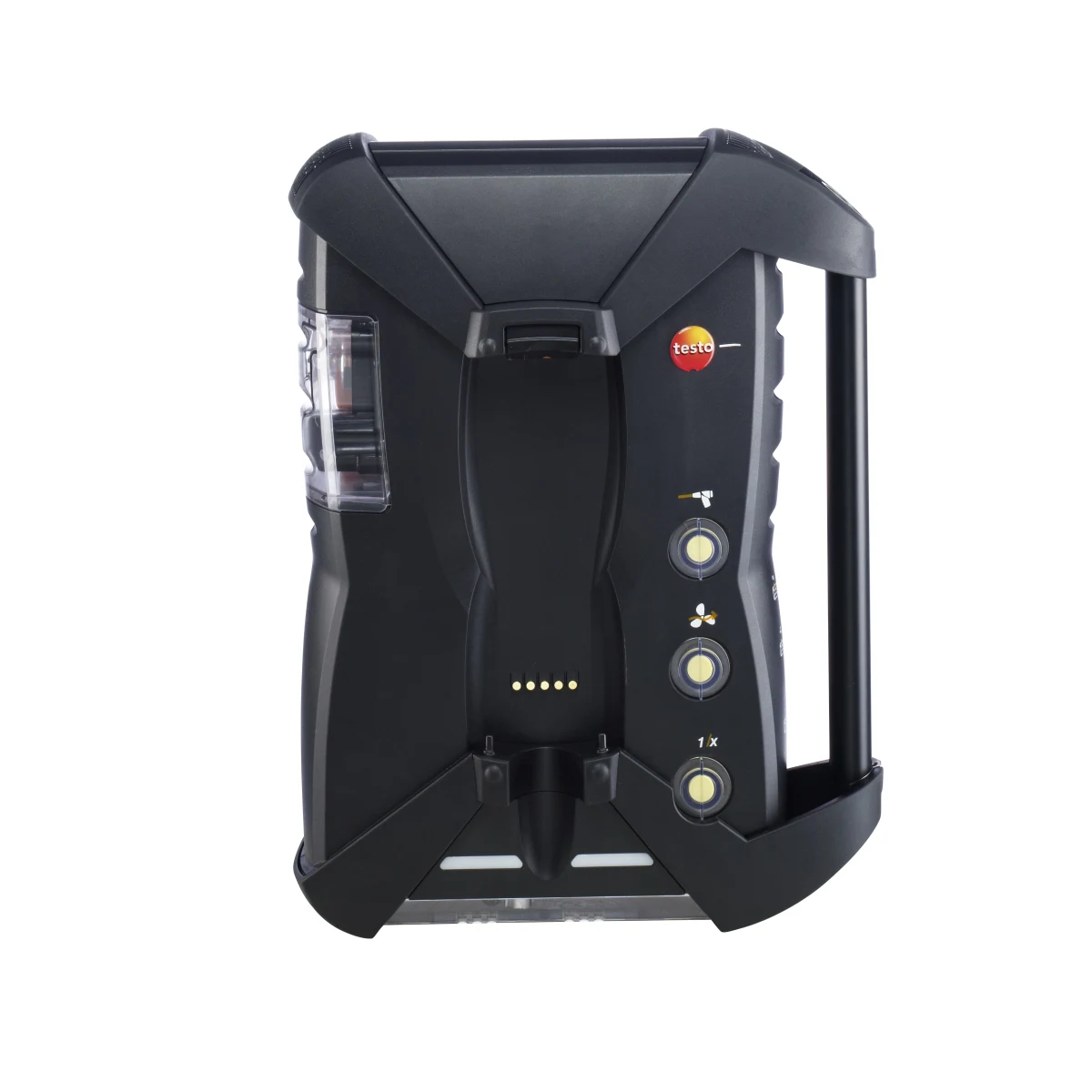

The testo 350 is testo’s benchmark emission measurement system for industry. It consists of an analyser box with up to 6 configurable gas sensors, integrated gas conditioning and condensate trap, and a detachable control unit that communicates via Bluetooth or the testo data bus, so it can be operated away from the box.
Thanks to dilution for all sensors with factor 5, it can measure without time limits even at high gas concentrations. Sensors and wear parts are easily replaced on site, and the closed housing with impact protection withstands the harshest industrial environments. It is operated with the control unit or with testo easyEmission software.
| testo reference | Version |
|---|---|
| 0632 3510 | Complete analyser: control unit, analyser box with O₂, CO, NO and NO₂, 335 mm probe, Bluetooth printer, data bus cable, filters and case |
| 0632 3511 | testo 350 control unit (spare; does not work on its own) |
See the specifications table for technical data.
Price on request: add it to your quote request and we will reply with price and lead time.
| Reference | 0632 3510 (complete analyser) |
|---|---|
| Brand | testo |
| Model | testo 350 |
| Type | Portable emission analysis system |
| Sensors | Up to 6 sensors: O₂, CO/H₂, low CO, NO, low NO, NO₂, SO₂, low SO₂, H₂S, CO₂ (IR), CxHy |
| O₂ | 0 to 25 vol.% |
| CO con compensación de H₂ | 0 to 10,000 ppm |
| Optional sensors | NO 0-4,000 ppm; NO₂ 0-500 ppm; SO₂ 0-5,000 ppm; CO₂ (IR) 0-50 vol.%; CxHy (methane 100-40,000 ppm) |
| Temperature | Type K -200 to +1,370 ºC; type S 0 to +1,760 ºC |
| Differential pressure | -40 to +40 hPa / -200 to +200 hPa |
| Velocity | 0 to 40 m/s (with Pitot tube) |
| Memory | 250,000 readings |
| Power supply | Battery (5 h); 100-240 V AC; 11-40 V DC input |
| Protection rating | IP40 |
| Operating temperature | -5 to +45 ºC |
| Dimensions | 330 x 128 x 438 mm (analyser box) |
| Weight | 4.8 kg (analyser box) |
| Standards | DIN EN 50379-1/-2 (TÜV certificate testo 350 V2010) |
