Price on request
testo 549i high-pressure gauge Smart Probe: wireless -1 to 60 bar pressure gauge that screws directly onto the service port and sends the pressure via Bluetooth to your phone or testo analysers; two units plus two testo 115i make a complete analyser.
Request your quote with no obligation.
Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.

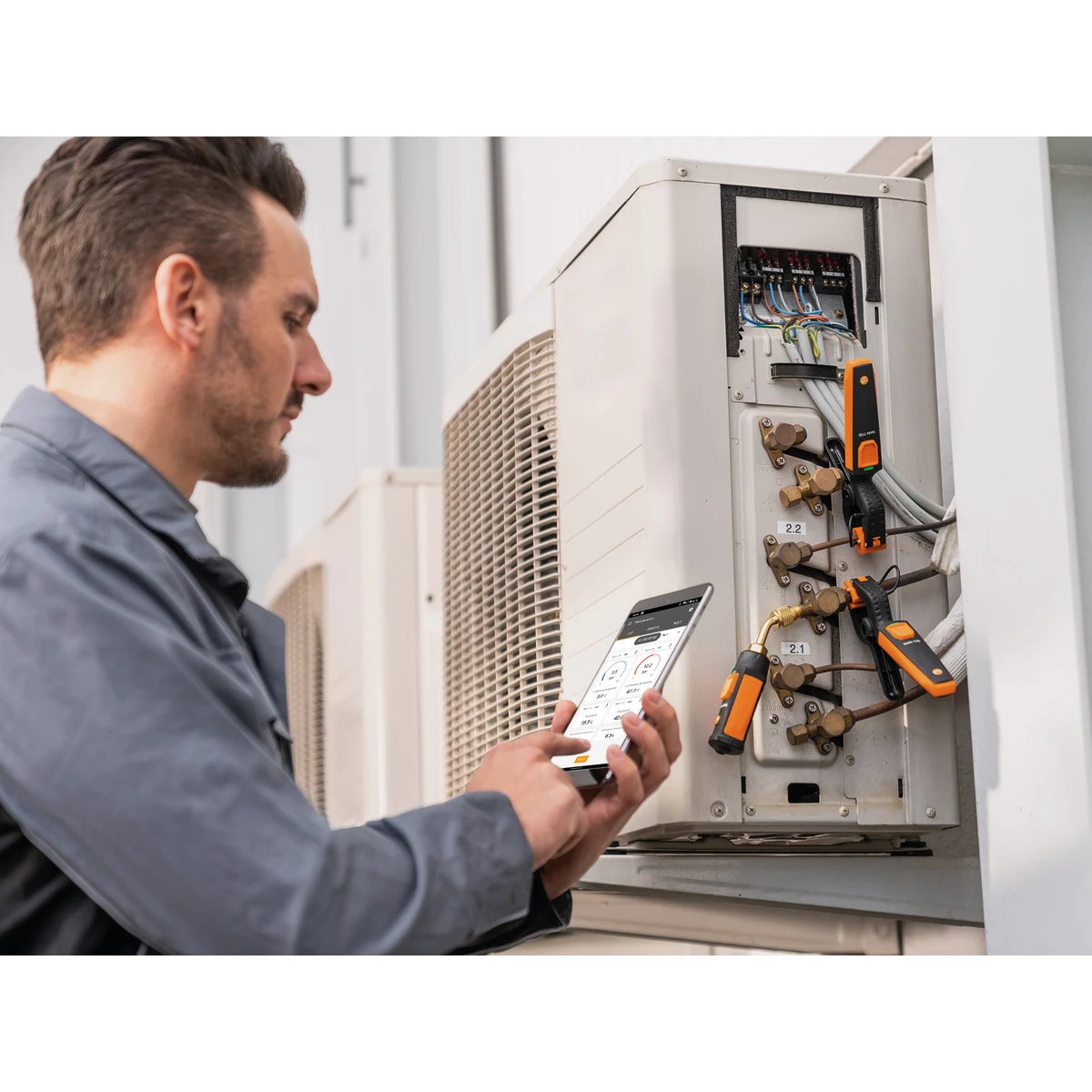

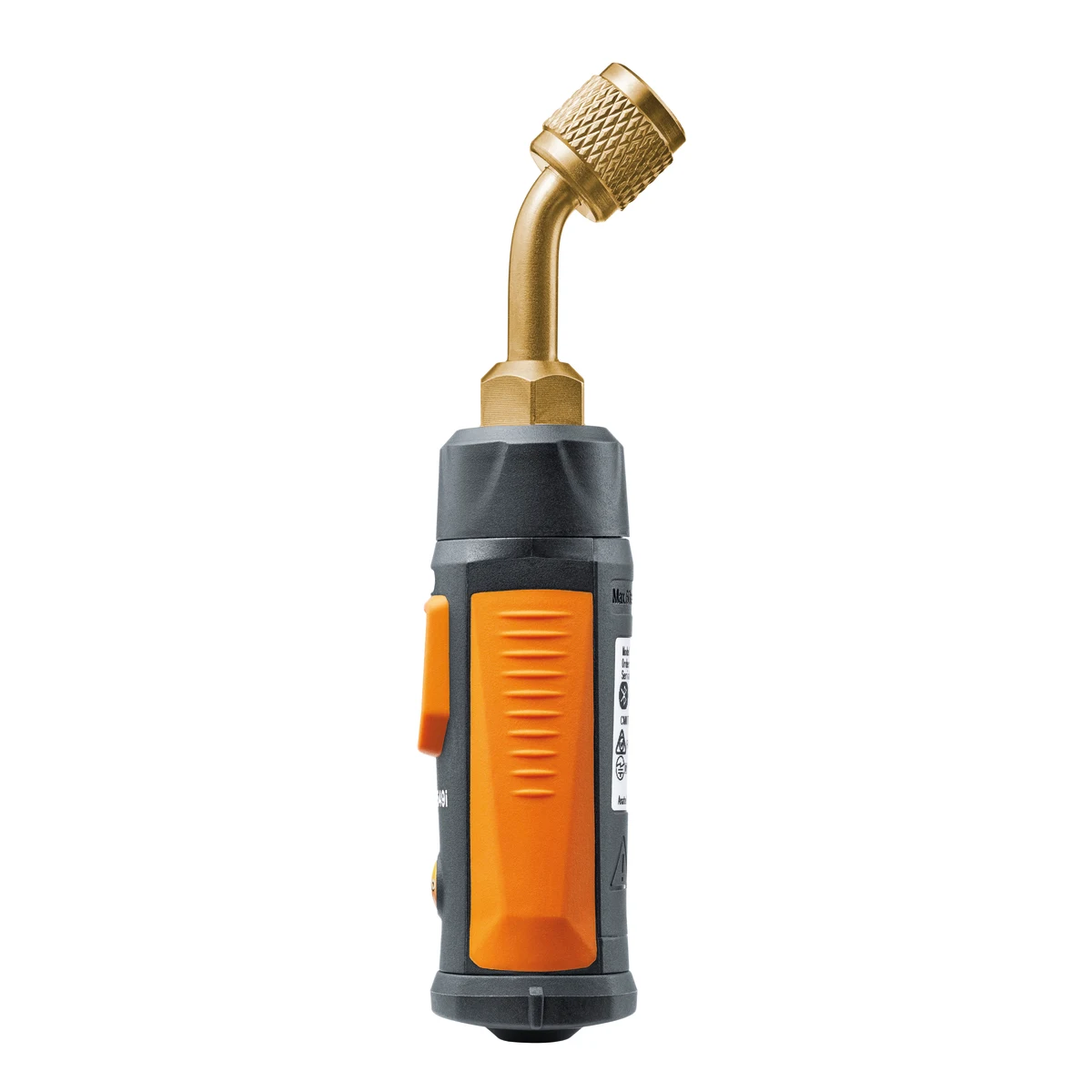

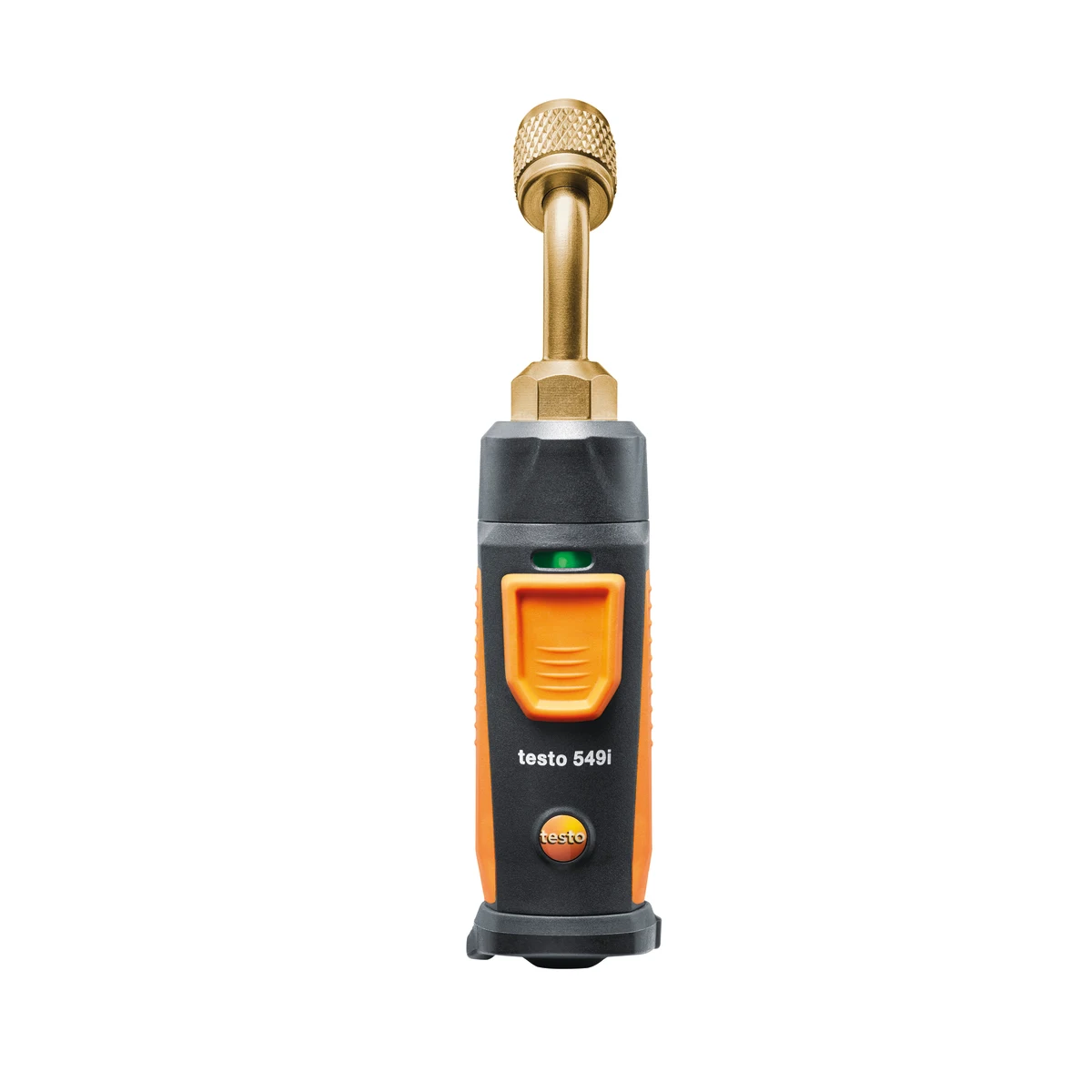

The testo 549i is a pressure Smart Probe that connects directly to the system’s service port (7/16″ UNF), without hoses, and transmits the reading via Bluetooth to the testo Smart App or testo refrigeration analysers.
With two testo 549i and two testo 115i clamp thermometers you have a complete wireless refrigeration analyser that calculates superheat and subcooling on your phone. It is also useful for pressure and leak tests.
See the specifications table for technical data.
Price on request: add it to your quote request and we will reply with price and lead time.
| Weight | 0,157 kg |
|---|---|
| Reference | 0560 2549 02 |
| Brand | testo |
| Model | testo 549i |
| Type | High-pressure gauge (Smart Probe) |
| Pressure | -1 to +60 bar (±0.5% fs); 0.01 bar resolution; 65 bar overload |
| Connection | 7/16" UNF |
| Refrigerants | CFC, HFC, HCFC, N, H₂O, CO₂ media |
| Connectivity | Bluetooth (100 m); testo Smart App and testo analysers |
| Power supply | 3 AAA batteries, 130 h |
| Dimensions | 125 x 32 x 31 mm |
| Weight | 157 g |
