testo 872s thermal imager: 320 x 240 pixel camera (640 x 480 with SuperResolution), 50 mK, laser marker, up to +650 °C, Bluetooth and WLAN with App.
Request your quote with no obligation.
testo 872s thermal imager
Price on request
Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.
Description

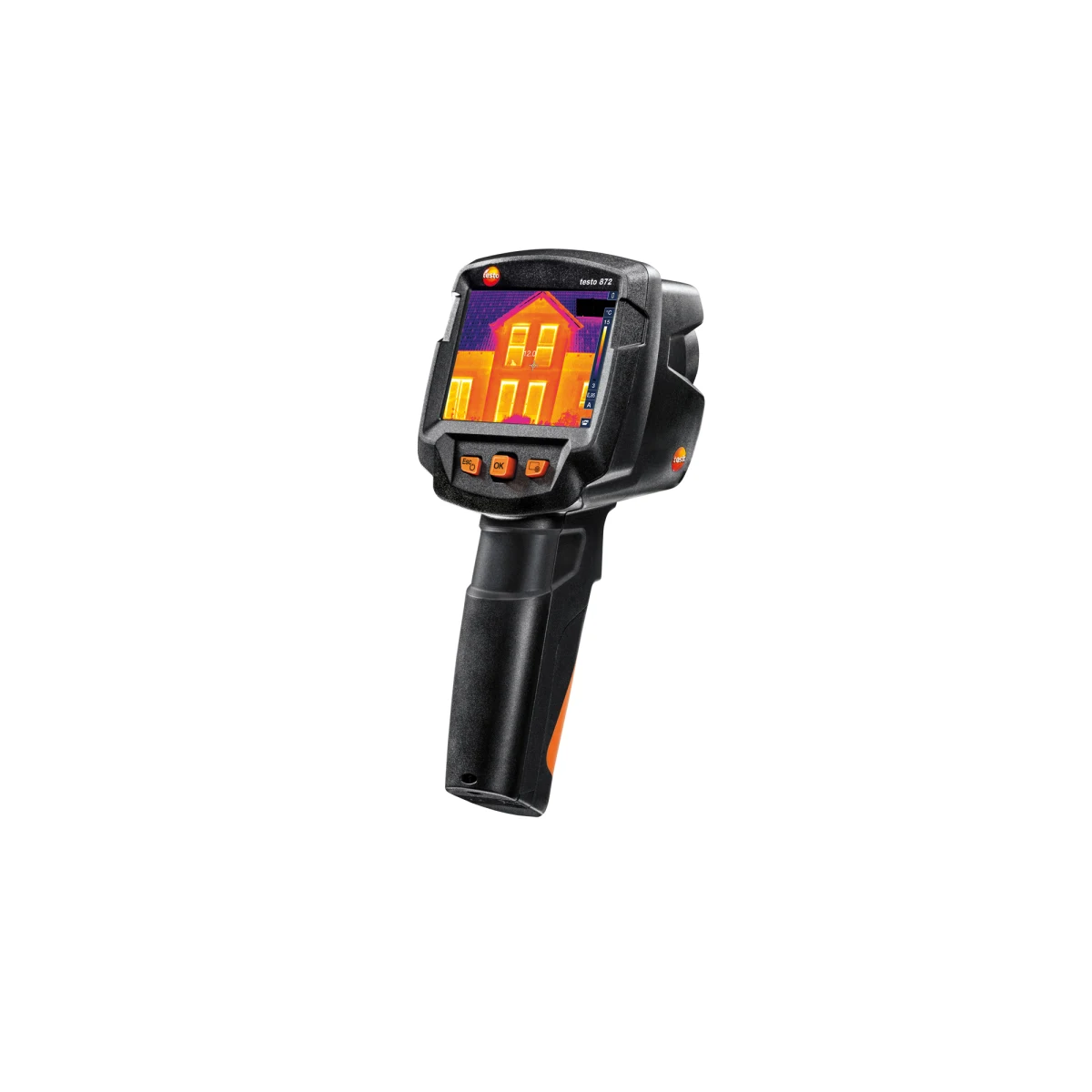

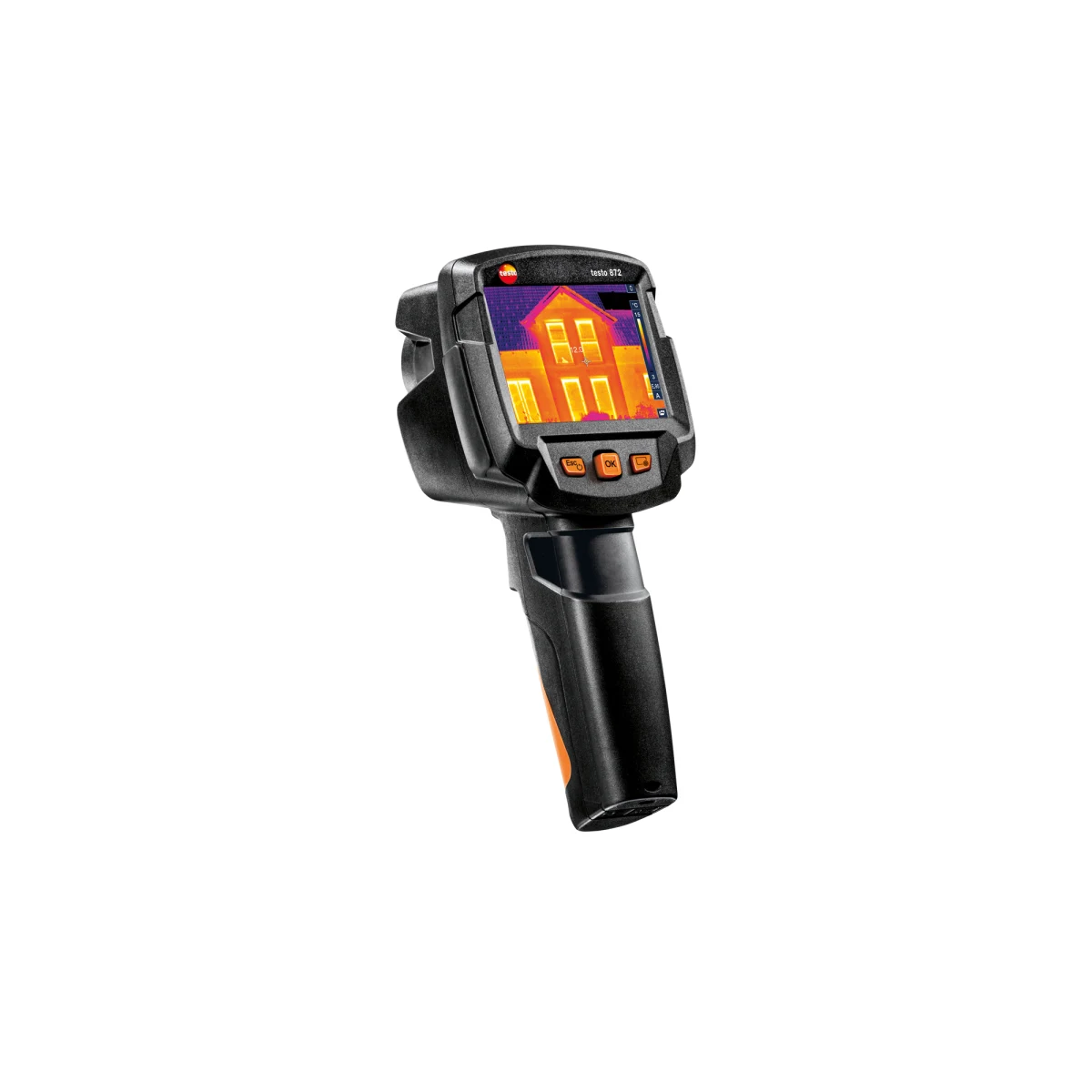

testo 872s thermal imager
The testo 872s is the most complete model of the fixed-focus series: 320 x 240 pixels (640 x 480 with testo SuperResolution), 50 mK sensitivity and a laser marker that is also visible in the thermal image, so you know exactly where you are measuring.

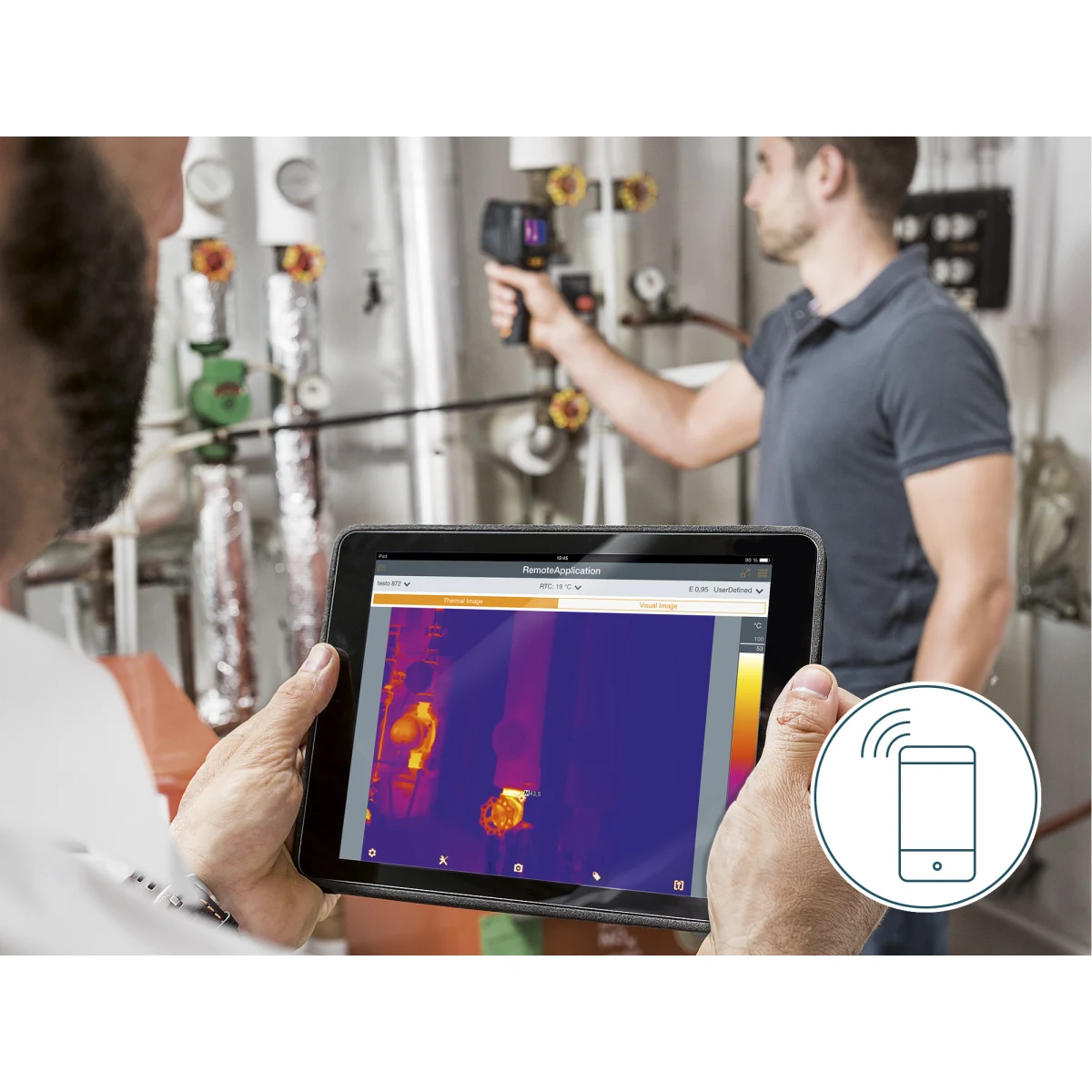

It adds a 42° x 30° wide-angle field of view, ten colour palettes, digital zoom, min/max by area and all testo assistants (ε-Assist, ScaleAssist, IFOV warner). Via Bluetooth it integrates readings from the testo 605i thermohygrometer and testo 770-3 clamp meter, and via WLAN it communicates with the testo Thermography App.
Key features
- 320 x 240 pixels (640 x 480 with SuperResolution)
- 50 mK thermal sensitivity

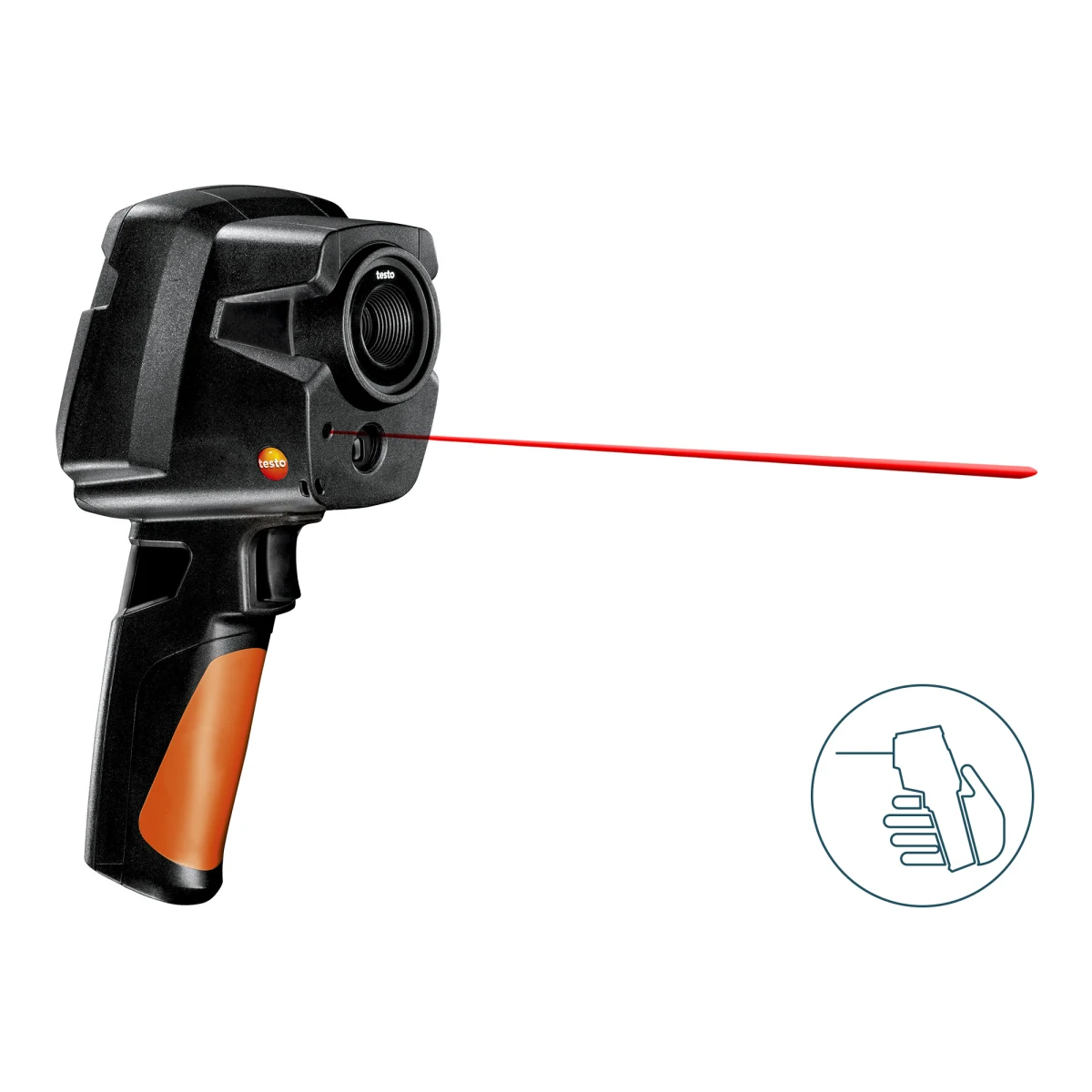

- Laser marker visible in the thermal image
- 42° x 30° field of view
- Bluetooth with testo 605i and testo 770-3
- 5 MP digital camera and WLAN with App
Applications
- Preventive electrical and mechanical maintenance
- Air conditioning, refrigeration and heating
- Building inspection: thermal bridges, leaks and damp
- Process and installation monitoring
Scope of delivery
- testo 872s thermal imager
- USB cable and power supply/charger
- Lithium-ion battery
- 3 testo ε-Marker markers
- Carrying case
- Conformity report
- testo IRSoft software, free download (not included in delivery)
See the specifications table for technical data.
Downloads
- testo 872s data sheet (PDF, 2.3 MB)
- testo 872s instruction manual (PDF, 1.2 MB)
- testo 865s-872s brochure (PDF, 3.6 MB)
Price on request: add it to your quote request and we will reply with price and lead time.
Specifications
| Weight | 0,510 kg |
|---|---|
| Reference | 0560 8721 |
| Brand | testo |
| Model | testo 872s |
| Type | Fixed-focus thermal imager |
| Infrared resolution | 320 x 240 pixels (640 x 480 with testo SuperResolution) |
| Thermal sensitivity | 50 mK (< 0.05 °C) |
| Field of view | 42° x 30°; fixed focus; minimum focus distance < 0.5 m |
| Resolución geométrica (IFOV) | 2.3 mrad (SuperResolution 1.3 mrad) |
| Frecuencia de actualización | 9 Hz |
| Spectral range | 7.5 to 14 µm |
| Rango de medición | -30 to +100 °C and 0 to +650 °C |
| Exactitud | ±2 °C or ±2% of m.v. |
| Emissivity | 0.01 to 1 |
| Digital camera | Yes, 5 MP; laser marker (635 nm, class 2) |
| Display | 3.5" (8.9 cm) TFT, 320 x 240 pixels |
| Analysis functions | Mean value, cold and hot spot, Delta T, min/max by area, solar, electrical and humidity modes, testo ε-Assist, IFOV warner, testo ScaleAssist; 10 palettes; 2x/4x zoom |
| Connectivity | USB 2.0 Micro B; WLAN with testo Thermography App; Bluetooth for testo 605i and testo 770-3 |
| Memory | 2.8 GB internal; .bmt and .jpg formats |
| Protection rating | IP54 |
| Power supply | Replaceable fast-charging lithium-ion battery; 4 h operating time |
| Operating temperature | -15 to +50 °C |
| Dimensions | 219 x 96 x 95 mm |
| Weight | 510 g |
| Standards | RED 2014/53/EU and EMC Directive 2014/30/EU |
