testo modular flue gas probes, shafts and filters: testo flue gas sampling probes with modular handle and interchangeable shafts from 180 to 700 mm, up to 1,000 ºC, flexible and compact probes, and spare particle filters.
Request your quote with no obligation.
Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.
testo modular flue gas probes consist of a handle with hose and an interchangeable shaft, so a single set can measure in small or large-diameter flues, at 500 ºC or up to 1,000 ºC, or reach difficult points with the flexible shaft.
This page lists the complete probes, separate shafts, basic compact probes and spare particle filters. Tell us your analyser model and we will confirm the compatible reference.
| testo reference | Version |
|---|---|

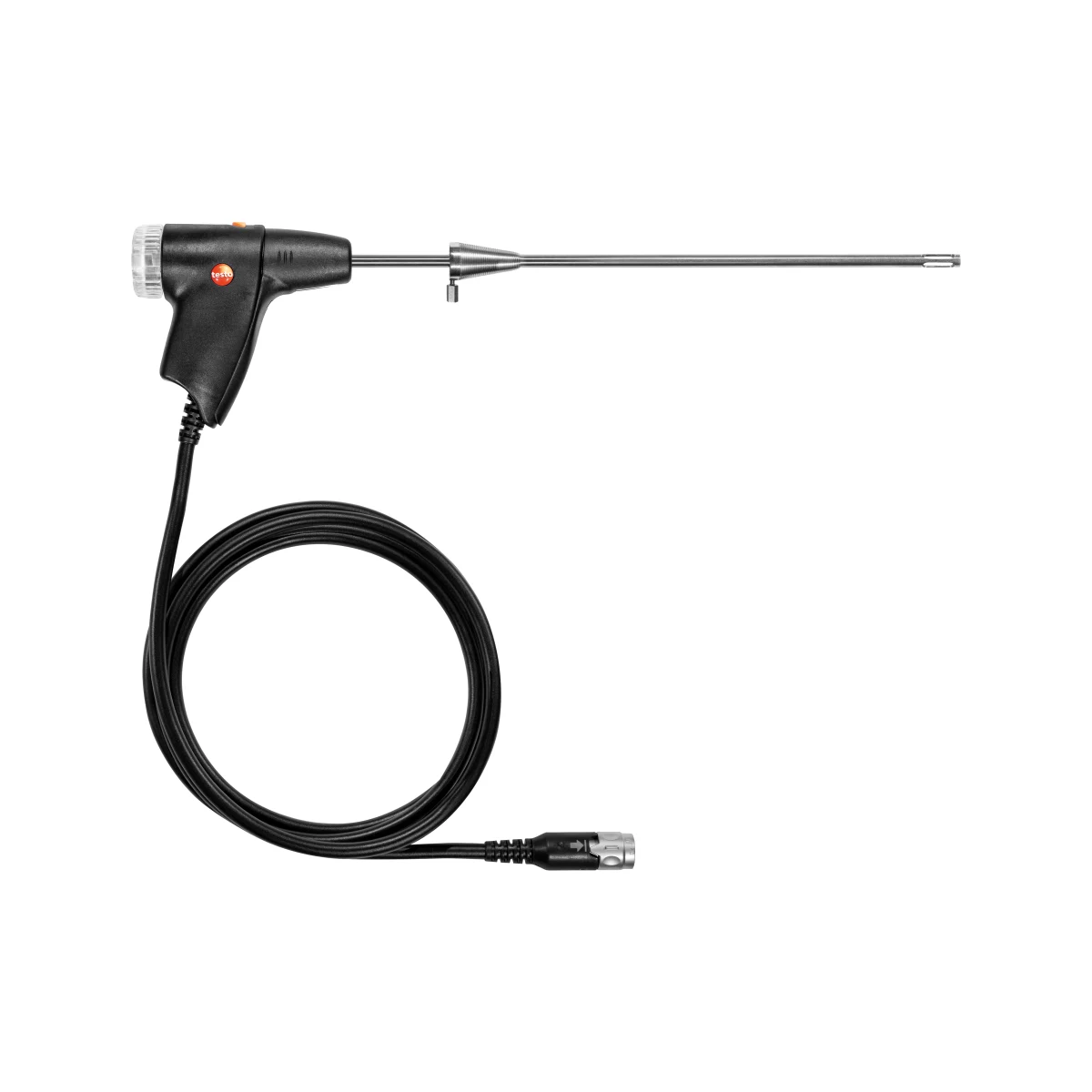

| 0600 9760 | Modular probe 180 mm, Ø 8 mm, Tmax 500 ºC, 2.2 m hose |
| 0600 9761 | Modular probe 300 mm, Ø 8 mm, Tmax 500 ºC |
| 0600 9762 | Modular probe 180 mm, Ø 6 mm, Tmax 500 ºC |
| 0600 9763 | Modular probe 300 mm, Ø 6 mm, Tmax 500 ºC |
| 0600 9766 | Modular probe 335 mm, Ø 8 mm, Tmax 500 ºC |
| 0600 9767 | Modular probe 700 mm, Ø 8 mm, Tmax 500 ºC |
| 0600 8764 | Modular probe 335 mm, Ø 8 mm, Tmax 1,000 ºC |
| 0600 8765 | Modular probe 700 mm, Ø 8 mm, Tmax 1,000 ºC |

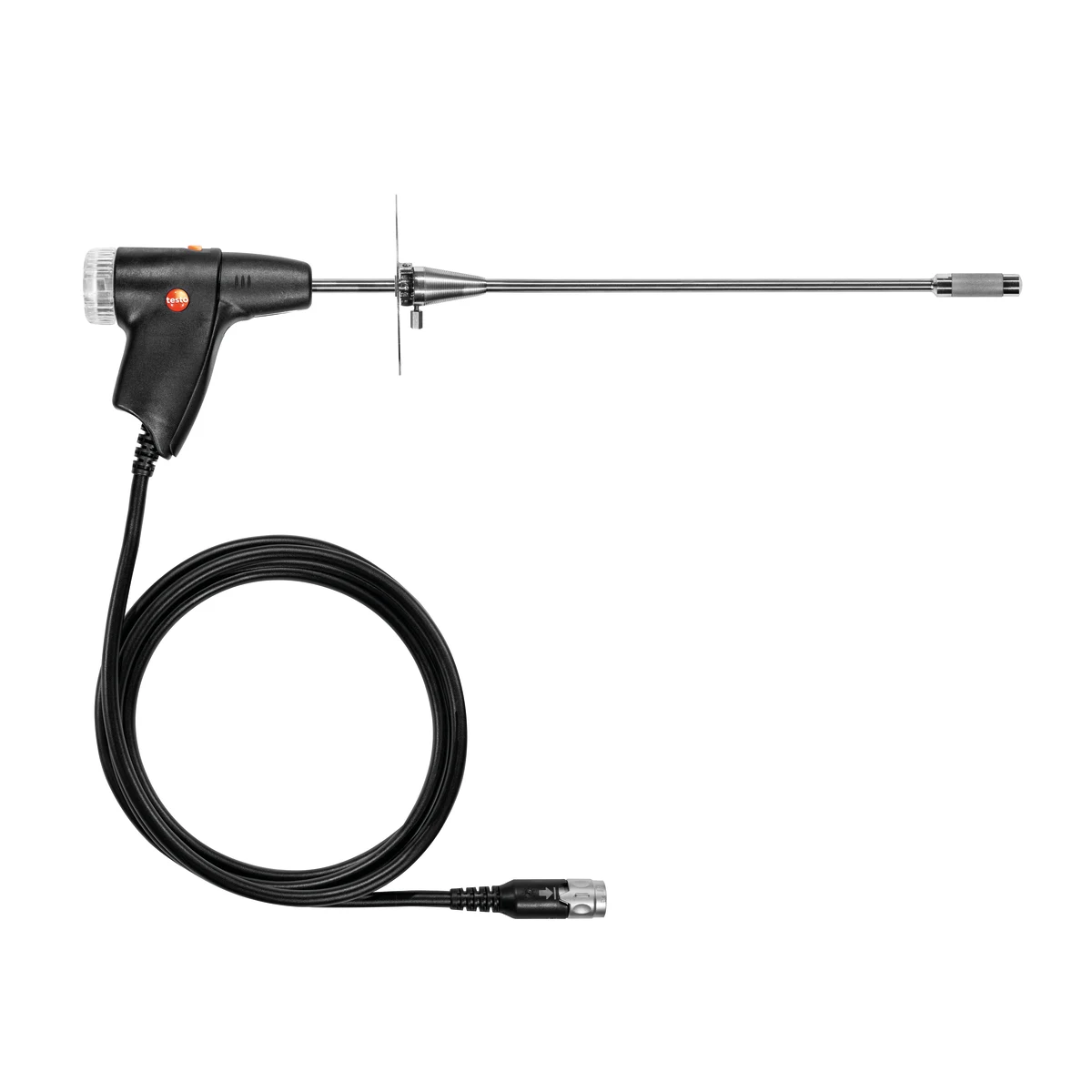

| 0600 8766 | Modular probe with pre-filter 335 mm, Ø 14 mm, Tmax 1,000 ºC |
| 0600 8767 | Modular probe with pre-filter 700 mm, Ø 14 mm, Tmax 1,000 ºC |

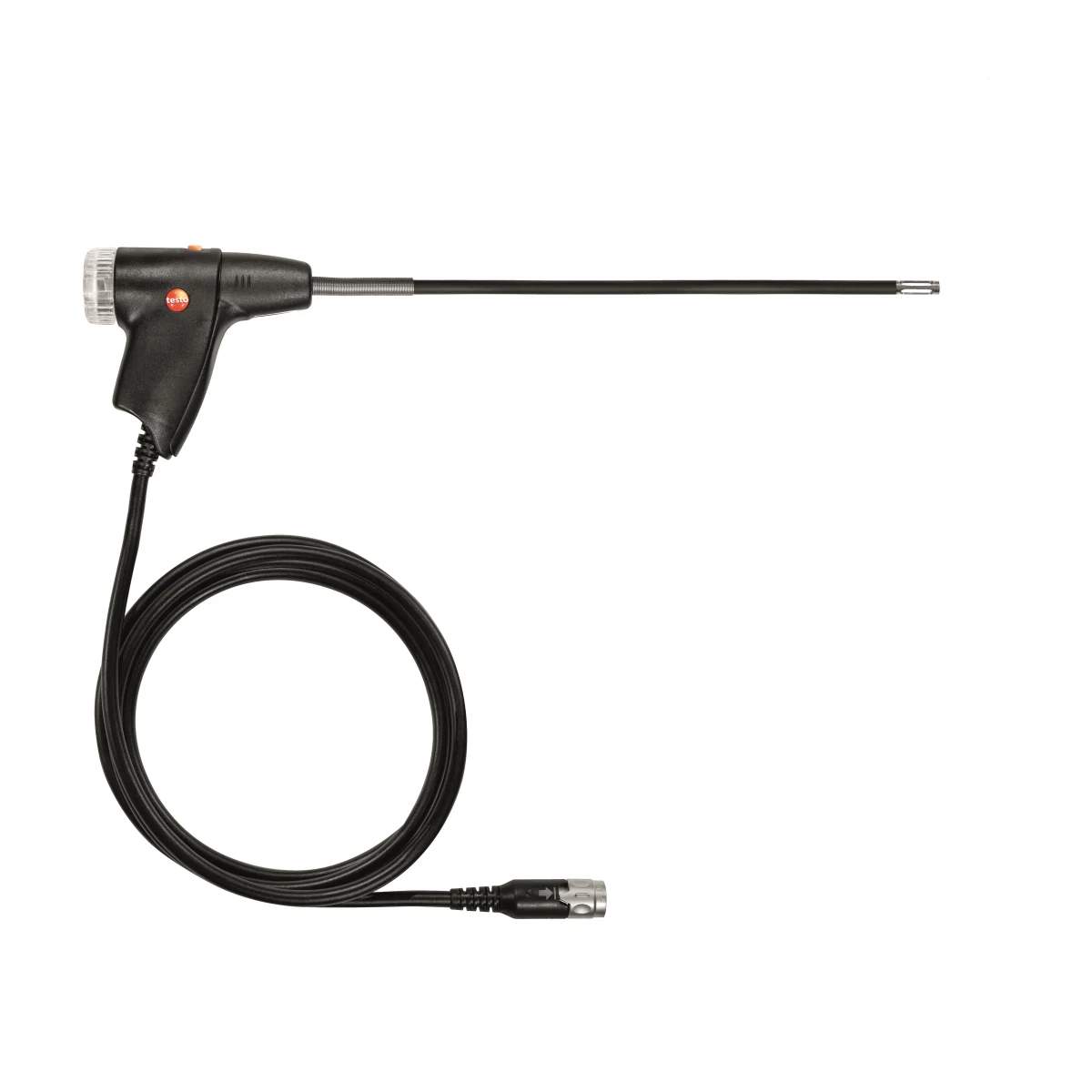

| 0600 9770 | Flexible flue gas probe |
| 0600 9740 | Basic compact probe 180 mm, Ø 6 mm, Tmax 500 ºC |
| 0600 9741 | Basic compact probe 300 mm, Ø 6 mm, Tmax 500 ºC |
| 0600 9780 / 9781 / 9782 / 9783 | Modular probes for testo 330i (180 or 300 mm, Ø 8 or 6 mm) |
| 0554 9760 | Shaft 180 mm, Ø 8 mm, Tmax 500 ºC |
| 0554 9761 | Shaft 300 mm, Ø 8 mm, Tmax 500 ºC |

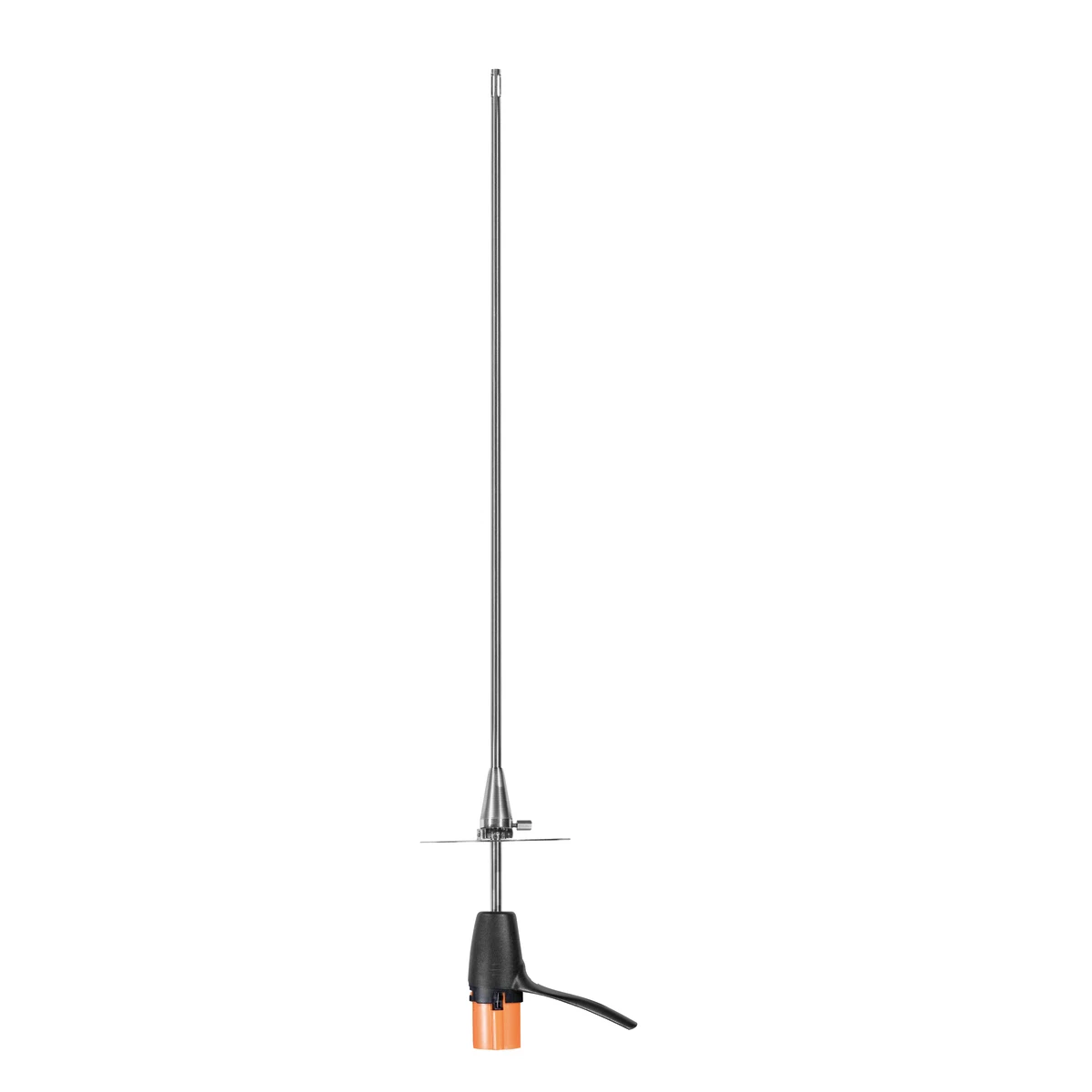

| 0554 8764 | Shaft 335 mm with probe cone, Ø 8 mm, Tmax 1,000 ºC |
| 0554 8765 | Shaft 700 mm with probe cone, Ø 8 mm, Tmax 1,000 ºC |
| 0554 9770 | Flexible shaft for modular probes |
| 0554 5763 | Multi-hole shaft 180 mm, Ø 8 mm, for average CO |
| 0554 5762 | Multi-hole shaft 300 mm, Ø 8 mm, for average CO |
| 0554 3381 | Spare particle filters (20 pcs) |
| 0554 3371 | Spare particle filters for condensate trap (10 pcs) |
| 0554 3372 | Spare sintered filter (2 pcs) |
See the specifications table for technical data.
Price on request: add it to your quote request and we will reply with price and lead time.
| Reference | 0600 9760 (modular probe 180 mm, Ø 8 mm) |
|---|---|
| Brand | testo |
| Type | Flue gas sampling probes, shafts and filters |
| Compatible with | testo 300, testo 320, testo 330 and testo 380 (check compatibility of each reference) |
| Length | 180, 300, 335 and 700 mm |
| Diameter | 6, 8 and 14 mm |
| Max. temperature | 500 ºC or 1,000 ºC depending on shaft |
| Cable length | 2.2 m (modular probe 0600 9760) |
