TSB-AC-175 CONTINUOUS AUTOMATIC TRAY SEALER

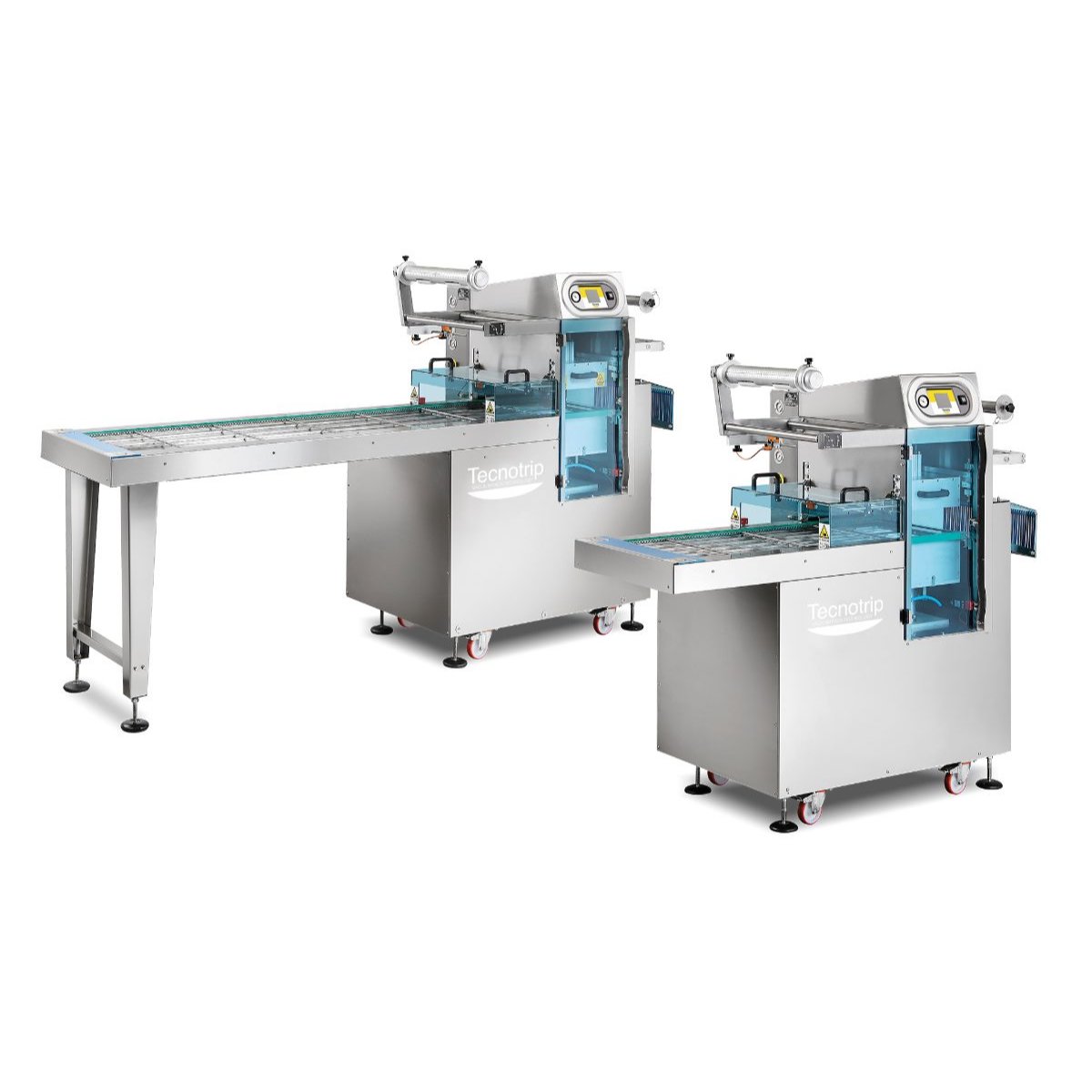

Tecnotrip TSB-AC-175 continuous automatic tray sealer (left, long loading line) next to the TSB-AC-70

TSB-AC-175 CONTINUOUS AUTOMATIC TRAY SEALER

Price on request

TSB-AC-175 continuous automatic tray sealer with a long loading line for large production: sealing only, vacuum and gas (MAP) or vacuum and Skin. 2 to 10 cycles/minute.

Request a no-obligation quote.

Add to quote
Download technical data sheet (PDF, 160 KB)
Request a quote on WhatsApp

Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.

SKU: TSB-AC-175 Categories: , ,

Description

TSB-AC-175 continuous automatic tray sealer for large production

The Tecnotrip TSB-AC-175 is a continuous automatic tray sealer for preformed trays, designed for large production runs that need maximum capacity and a continuous workflow. Its longer loading line holds more trays at once. It packs with sealing only, vacuum and inert gas (MAP) or vacuum with Skin effect.

Advantages

  • 2 to 10 cycles/minute in continuous operation.
  • Long loading line: 5 × 1750 mm loading area.
  • Easy-to-use digital programmer with sensor-controlled vacuum and 30 programs.
  • Easy, intuitive mould change.
  • Busch 100 m³/h vacuum pump.
  • Trays up to 100 mm deep; film reel Ø 300 mm, 430 to 470 mm wide.
  • Easy cleaning and maintenance. Dimensions 2890 × 890 × 1650 mm, 490 kg; 400 V three-phase, 4 kW.

Tecnotrip reference: TSB-AC-175.

For somewhat smaller production runs, see the more compact TSB-AC-70.

Technical data sheet · TSB-AC-175 CONTINUOUS AUTOMATIC TRAY SEALER

PDF · 160 KB · Main data, models and dimensions.

Open PDFDownload

Specifications

Model

TSB-AC-175
Brand

Tecnotrip
Type

Continuous automatic tray sealer for preformed trays
Packing

Sealing only, vacuum + gas (MAP) or vacuum + Skin
Speed

2–10 cycles/min
Dimensions

2890 × 890 × 1650 mm
Weight

490 kg
Loading area

5 × 1750 mm
Power supply

400 V · 50 Hz · three-phase
Power

4 kW
Vacuum pump

Busch 100 m³/h
Control panel

Digital programmer, sensor-controlled vacuum, 30 programs
Max. tray depth

100 mm
Film (width / max. reel diameter)

430–470 mm / Ø 300 mm
Air consumption

9/12 Nl/min
