AKO Darwin extended-front controller with switches (1, 2 or 3 relays): AKO panel-mounted electronic controller with extended front (136 x 29 mm cut-out) including main and light switches; 1, 2 and 3 relay versions.
Request your quote with no obligation.
Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.

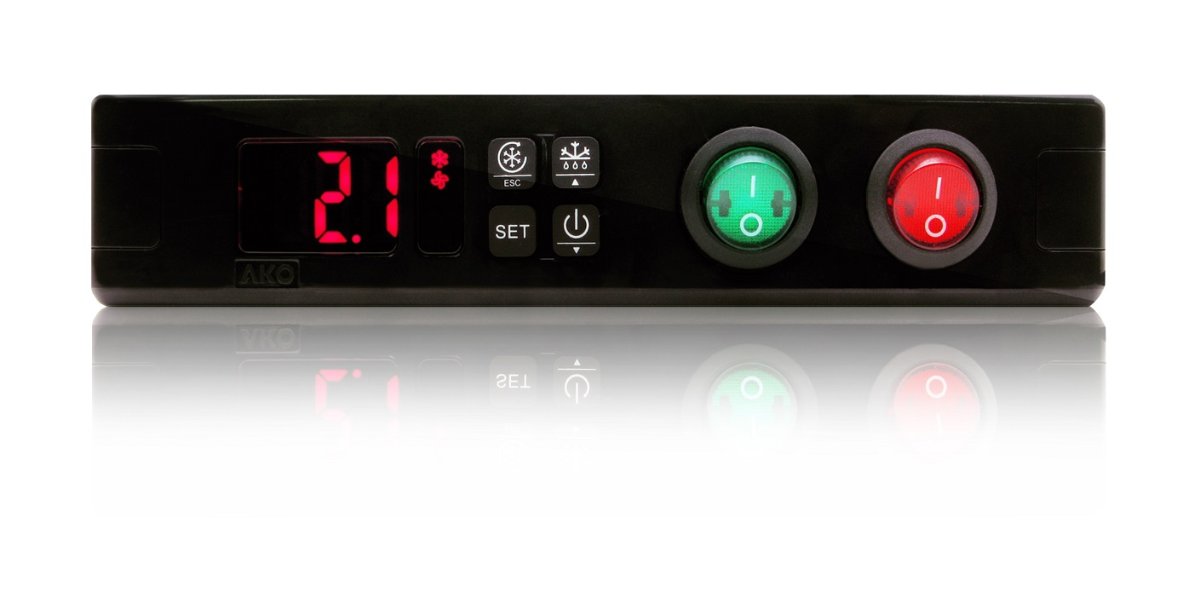

The extended-front version of AKO Darwin controllers has two switches on the front, so a single unit replaces the thermostat and switches found in many display cases, bottle coolers and cabinets. It fits a 136 x 29 mm cut-out and is available with 1, 2 or 3 relays, with a configuration wizard, ECO function and digital inputs for remote activation.
| AKO reference | Version |
|---|---|
| AKO-D10123 | 1 x 16 A SPST relay, 230 V~ |
| AKO-D10223 | 2 relays (16 A + 8 A auxiliary), 230 V~ |
| AKO-D10323 | 3 relays (16 A + 6 A fans + 8 A auxiliary), 230 V~ |
See the specifications table for technical data.
Price on request: add it to your quote request and we will reply with price and lead time.
| Reference | AKO-D10323 |
|---|---|
| Brand | AKO |
| Range | AKOCONTROL Darwin |
| Relays | 1, 2 or 3 depending on version |
| Power supply | 230 V~ 50/60 Hz |
| Mounting | Panel, with fixing clips |
| Panel cut-out | 136 x 29 mm |
| Front dimensions | 181 x 38 mm |
| Protection rating | IP50 |
| Probes | NTC/PTC selectable (1 NTC probe included) |
| Measuring range | NTC -50.0 to 99.9 ºC; PTC -50.0 to 150 ºC |
| Resolution | 0.1 ºC |
| Display | Red, 3 digits with sign and status LEDs |
| Operating temperature | -10 to 50 ºC, humidity < 90% |
| Connection | Screw terminals, cables up to 2.5 mm² |
