Baxtran BVP low-profile platform: low-profile 600 or 1,500 kg platform with 6 mm checker plate and integrated ramps. Indicator not included.
Request your no-obligation quote.
BAXTRAN BVP LOW-PROFILE PLATFORM WITH INTEGRATED RAMPS
Price on request
Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.
Description
Baxtran BVP low-profile platform: low-profile 600 or 1,500 kg platform with 6 mm checker plate and integrated ramps

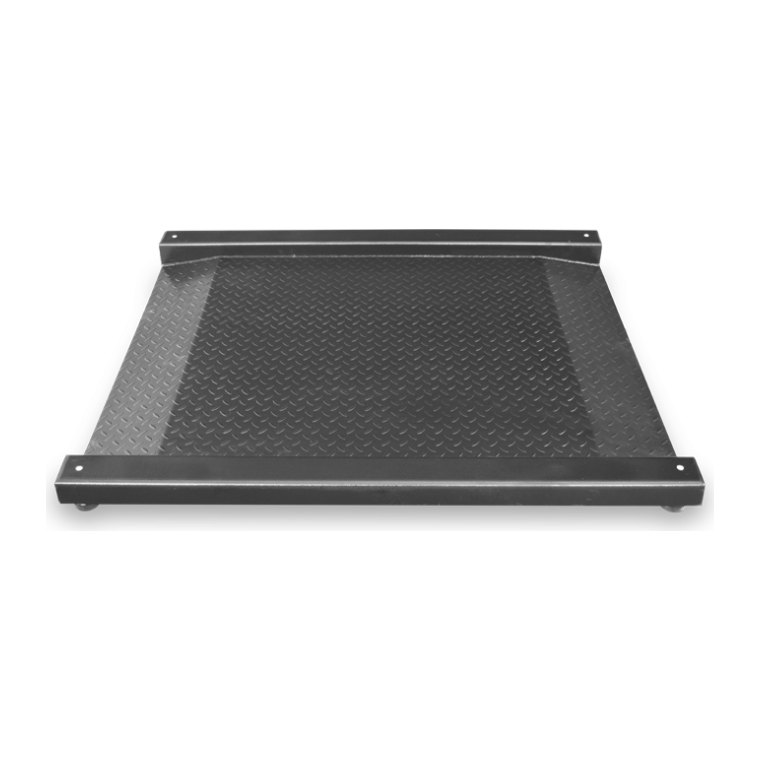

The BVP is a low-profile platform with ramps built into the weighing surface, made of 6 mm black-enamelled checker plate.
It uses nickel-plated steel OIML R-60 class C load cells rated IP68, an IP66 ABS junction box and adjustable feet with top access. Legal for trade.
Capacities of 600 and 1,500 kg on 1000 × 1000 and 1200 × 1200 mm. Supplied without indicator: combine it with the Baxtran weight indicator that best suits the job.
Construction and standard equipment
- 6 mm black-enamelled checker plate
- Ramps integrated in the weighing surface
- Nickel-plated steel OIML R-60 C IP68 load cells; IP66 ABS junction box
- Adjustable feet with top access
Standards
Legal for trade; OIML R-60 class C load cells.
Versions and Baxtran references
| Baxtran ref. | Capacity (kg) | Division (g) | Platform (mm) |
|---|---|---|---|
| 260642 | 600 | 200 | 1000 × 1000 |
| 260643 | 1,500 | 500 | 1000 × 1000 |
| 260644 | 600 | 200 | 1200 × 1200 |
| 260645 | 1,500 | 500 | 1200 × 1200 |
Applications
Warehouses, dispatch and distribution: legal-for-trade pallet weighing with a pallet truck, no pit needed.
See all weighing platforms. José Bernad is an authorised Baxtran distributor: request your no-obligation quote.
Specifications
| Model | BVP |
|---|---|
| Brand | Baxtran |
| Type | Legal-for-trade low-profile platform with integrated ramps |
| Capacity | 600 kg or 1,500 kg |
| Division | 200 g (600 kg) · 500 g (1,500 kg) |
| Platform | 1000 × 1000 or 1200 × 1200 mm |
| Construction | 6 mm black-enamelled checker plate, integrated ramps |
| Load cells | 4 nickel-plated steel OIML R-60 class C, IP68; IP66 ABS junction box |
| Indicator | Not included (chosen separately) |
| Standards | Legal for trade; OIML R-60 class C load cells. |
| Baxtran references | 260642 · 260643 · 260644 · 260645 |
