Baxtran BVS pit-mountable weighing platform: 4-load-cell platform for surface or pit mounting, 600 to 3,000 kg, legal for trade. Indicator not included.
Request your no-obligation quote.
BAXTRAN BVS PIT-MOUNTABLE WEIGHING PLATFORM
Price on request
Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.
Description
Baxtran BVS pit-mountable weighing platform: 4-load-cell platform for surface or pit mounting, 600 to 3,000 kg, legal for trade

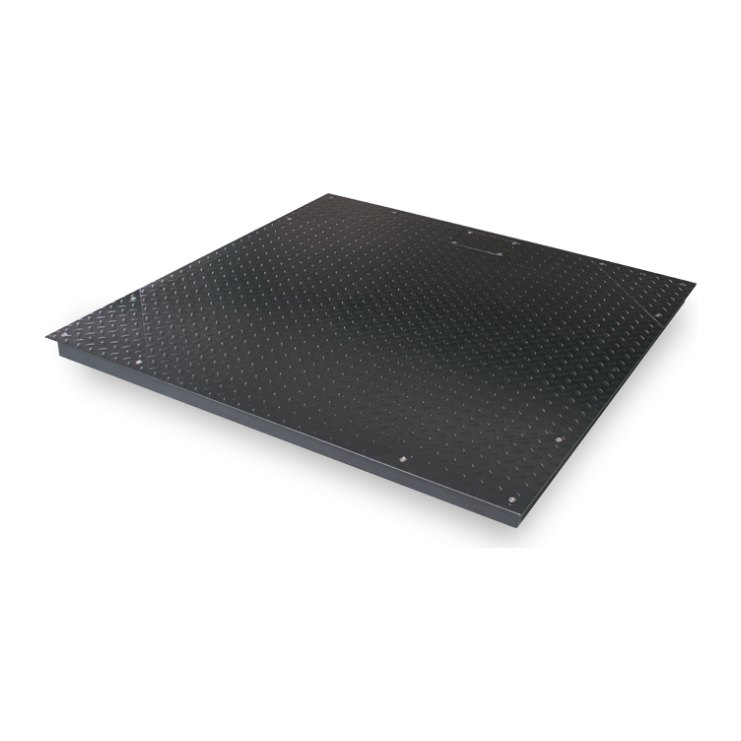

The BVS is a 4-load-cell platform for surface or pit mounting, with a hot-rolled U-profile frame and a 5/7 mm black-enamelled checker plate.
Each load cell (IP67 steel OIML R-60) can be accessed individually without lifting the platform. IP66 ABS junction box and adjustable feet. Legal for trade.
600 to 3,000 kg on platforms from 1000 × 1000 to 2000 × 1500 mm. Supplied without indicator: combine it with the Baxtran weight indicator that best suits the job.
Construction and standard equipment
- 5/7 mm steel checker plate
- Hot-rolled U-profile frame, black enamelled
- Surface or pit mounting; individual access to each load cell
- 4 IP67 OIML R-60 steel load cells; IP66 ABS junction box
Standards
Legal for trade; OIML R-60 load cells.
Versions and Baxtran references
| Baxtran ref. | Capacity (kg) | Division (g) | Platform (mm) |
|---|---|---|---|
| 261528 | 600 | 200 | 1000 × 1000 |
| 261529 | 1,500 | 500 | 1000 × 1000 |
| 260252 | 1,500 | 500 | 1200 × 1200 |
| 260253 | 3,000 | 1,000 | 1200 × 1200 |
| 260254 | 1,500 | 500 | 1500 × 1200 |
| 260255 | 3,000 | 1,000 | 1500 × 1200 |
| 260256 | 1,500 | 500 | 1500 × 1500 |
| 260257 | 3,000 | 1,000 | 1500 × 1500 |
| 260258 | 1,500 | 500 | 2000 × 1500 |
| 260259 | 3,000 | 1,000 | 2000 × 1500 |
Applications
Warehouses, heavy industry, logistics, recycling and agriculture: intensive legal-for-trade weighing of pallets and loads.
See all weighing platforms. José Bernad is an authorised Baxtran distributor: request your no-obligation quote.
Specifications
| Model | BVS |
|---|---|
| Brand | Baxtran |
| Type | 4-load-cell platform for surface or pit mounting, 600 to 3,000 kg, legal for trade |
| Capacity | 600 to 3,000 kg |
| Division | 200 g to 1 kg depending on capacity |
| Platform | From 1000 × 1000 to 2000 × 1500 mm |
| Construction | 5/7 mm checker plate, hot-rolled U-profile, black enamel; surface or pit mounted |
| Load cells | 4 steel OIML R-60, IP67; IP66 ABS junction box |
| Indicator | Not included (chosen separately) |
| Standards | Legal for trade; OIML R-60 load cells. |
| Baxtran references | 261528 · 261529 · 260252 · 260253 · 260254 · 260255 · 260256 · 260257 · 260258 · 260259 |
