Baxtran MTZ weighing platform: 4-load-cell 1,500 or 3,000 kg platform with 3.5 mm checker plate, legal for trade. Indicator not included.
Request your no-obligation quote.
BAXTRAN MTZ 3.5 MM CHECKER PLATE WEIGHING PLATFORM LEGAL FOR TRADE
Price on request
Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.
Description
Baxtran MTZ weighing platform: 4-load-cell 1,500 or 3,000 kg platform with 3.5 mm checker plate, legal for trade

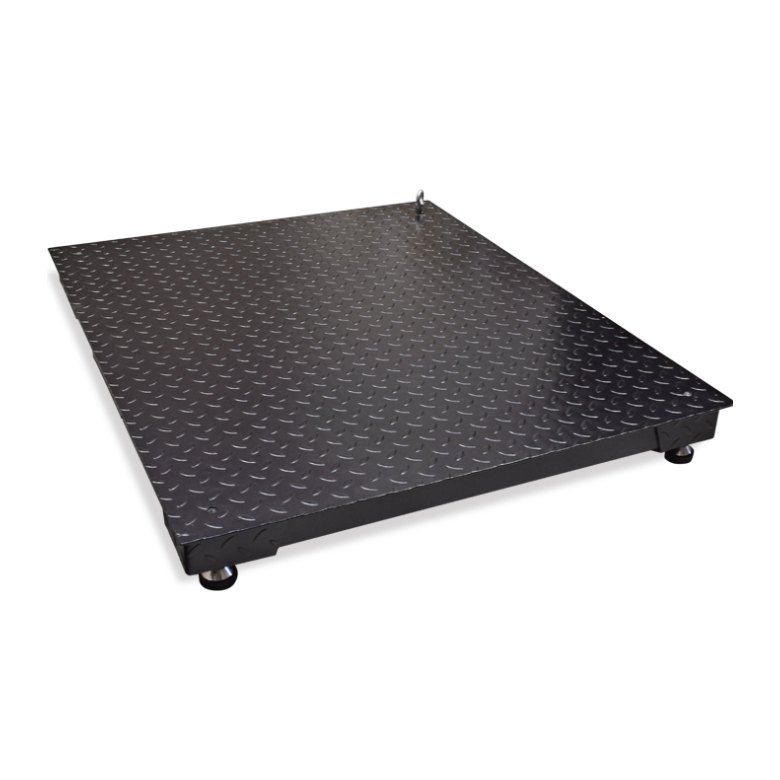

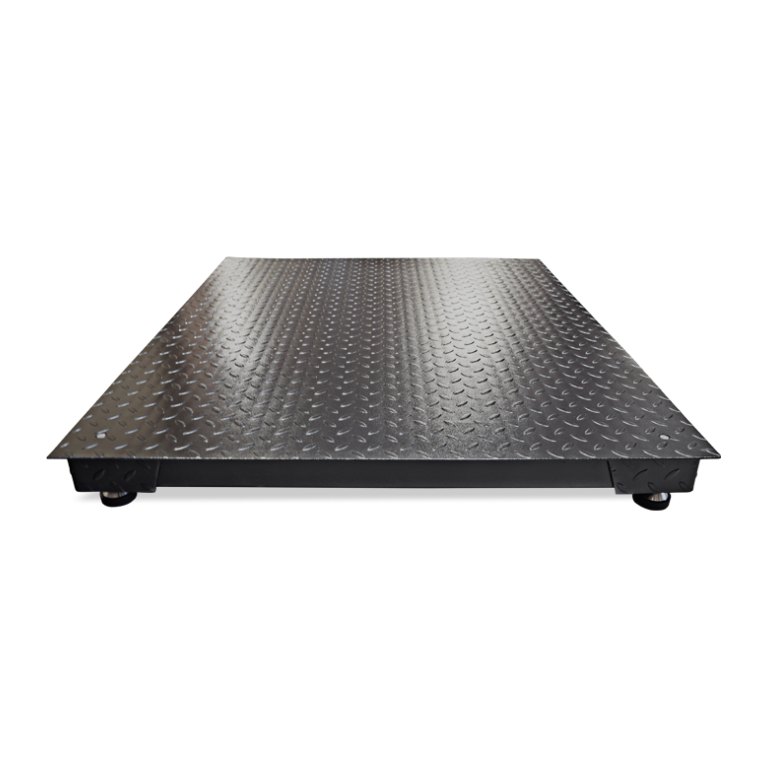

The MTZ is a 4-load-cell platform of 1,500 or 3,000 kg with a 3.5 mm black-enamelled checker top plate, in four sizes from 1200 × 1000 to 1500 × 1500 mm.
It uses IP66 OIML R-60 C3 steel load cells and is legal for trade. IP66 ABS junction box, adjustable feet and 4 m cable.
It is the platform used in NFZ scales. Supplied without indicator: combine it with the Baxtran weight indicator that best suits the job.
Construction and standard equipment
- Steel structure with 3.5 mm black-enamelled checker plate
- 4 IP66 OIML R-60 C3 steel load cells
- IP66 ABS junction box
- Adjustable feet and 4 m cable
Standards
Legal for trade; OIML R-60 C3 load cells.
Versions and Baxtran references
| Baxtran ref. | Capacity (kg) | Division (g) | Platform (mm) |
|---|---|---|---|
| 261267 | 1,500 | 500 | 1200 × 1000 |
| 261268 | 3,000 | 1,000 | 1200 × 1000 |
| 261269 | 1,500 | 500 | 1200 × 1200 |
| 261270 | 3,000 | 1,000 | 1200 × 1200 |
| 261271 | 1,500 | 500 | 1500 × 1200 |
| 261272 | 3,000 | 1,000 | 1500 × 1200 |
| 261273 | 1,500 | 500 | 1500 × 1500 |
| 261274 | 3,000 | 1,000 | 1500 × 1500 |
Applications
Warehouses, dispatch, industry and agriculture: weighing pallets and loads with legal validity.
See all weighing platforms. José Bernad is an authorised Baxtran distributor: request your no-obligation quote.
Specifications
| Model | MTZ |
|---|---|
| Brand | Baxtran |
| Type | 4-load-cell weighing platform, legal for trade |
| Capacity | 1,500 kg or 3,000 kg |
| Division | 500 g (1,500 kg) · 1 kg (3,000 kg) |
| Platform | 1200 × 1000, 1200 × 1200, 1500 × 1200 and 1500 × 1500 mm |
| Construction | Steel with 3.5 mm black-enamelled checker plate; surface mounted |
| Load cells | 4 steel OIML R-60 C3, IP66; IP66 ABS junction box |
| Cable | 4 m |
| Indicator | Not included (chosen separately) |
| Standards | Legal for trade; OIML R-60 C3 load cells. |
| Baxtran references | 261267 · 261268 · 261269 · 261270 · 261271 · 261272 · 261273 · 261274 |
