EVA-9-11 automatic vacuum packer by Tecnotrip: vacuum, sealing and vacuum + gas (MAP), chamber 1175 × 665 × 300 mm, pump Busch 250 m³/h (300 m³/h option).
Request a no-obligation quote.
EVA-9-11 AUTOMATIC VACUUM PACKER
Price on request
Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.
Description

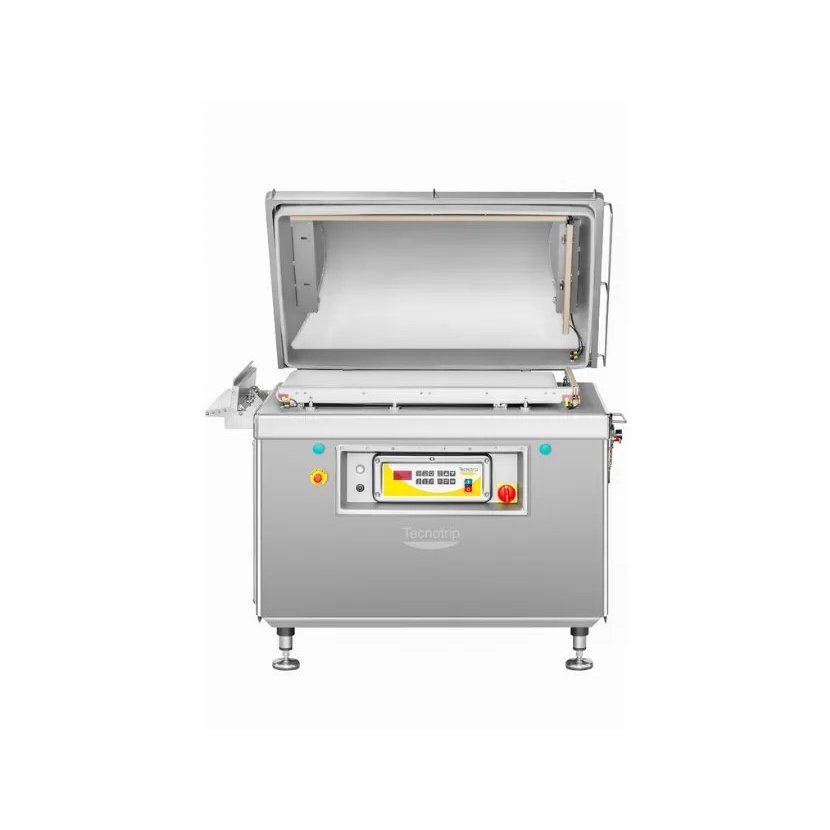

EVA-9-11 automatic vacuum packer
The EVA-9-11 is a single chamber vacuum packer with automatic lid and unloading: at the push of a button it closes the lid, packs and ejects the product by conveyor. It synchronises with Tecnotrip’s pre-feeder and shrink tanks to form an automatic line.
Ideal for slaughterhouses, cutting rooms, cured sausage and fish factories with large production runs of bulky products.
Advantages
- Packing: Vacuum, sealing and vacuum + gas (MAP).
- Chamber: 1175 × 665 × 300 mm.
- Sealing bars: 2 or 3 bars in several configurations.
- Sealing types: Single, single + excess trimming, double and bi-active + excess trimming.
- Vacuum pump: Busch 250 m³/h (300 m³/h option).
- Control panel: Digital sensor-controlled programmer, 30 programs, conveyor operation and speed control.
- Format: external dimensions 1455 × 940 × 1135 mm, weight 550 kg, power supply 220/380 V · 50/60 Hz · three-phase.
- Removable conveyor for cleaning, with adjustable height.
- Inert gas flushing (MAP) option.
Tecnotrip reference: EVA-9-11.
See also our other automatic vacuum packers.
Specifications
| Weight | 550 kg |
|---|---|
| Model | EVA-9-11 |
| Brand | Tecnotrip |
| Type | Single chamber vacuum packer with automatic lid and unloading |
| Packing | Vacuum, sealing and vacuum + gas (MAP) |
| External dimensions | 1455 × 940 × 1135 mm |
| Chamber | 1175 × 665 × 300 mm |
| Sealing bars | 2 or 3 bars in several configurations |
| Sealing types | Single, single + excess trimming, double and bi-active + excess trimming |
| Vacuum pump | Busch 250 m³/h (300 m³/h option) |
| Control panel | Digital sensor-controlled programmer, 30 programs, conveyor operation and speed control |
| Cycles per minute | 2–3 |
| Power | 7.5 kW |
| Power supply | 220/380 V · 50/60 Hz · three-phase |
| Compressed air | 6 bar |
