EVDA-20 AUTOMATIC VACUUM PACKING AND SHRINK LINE

Description

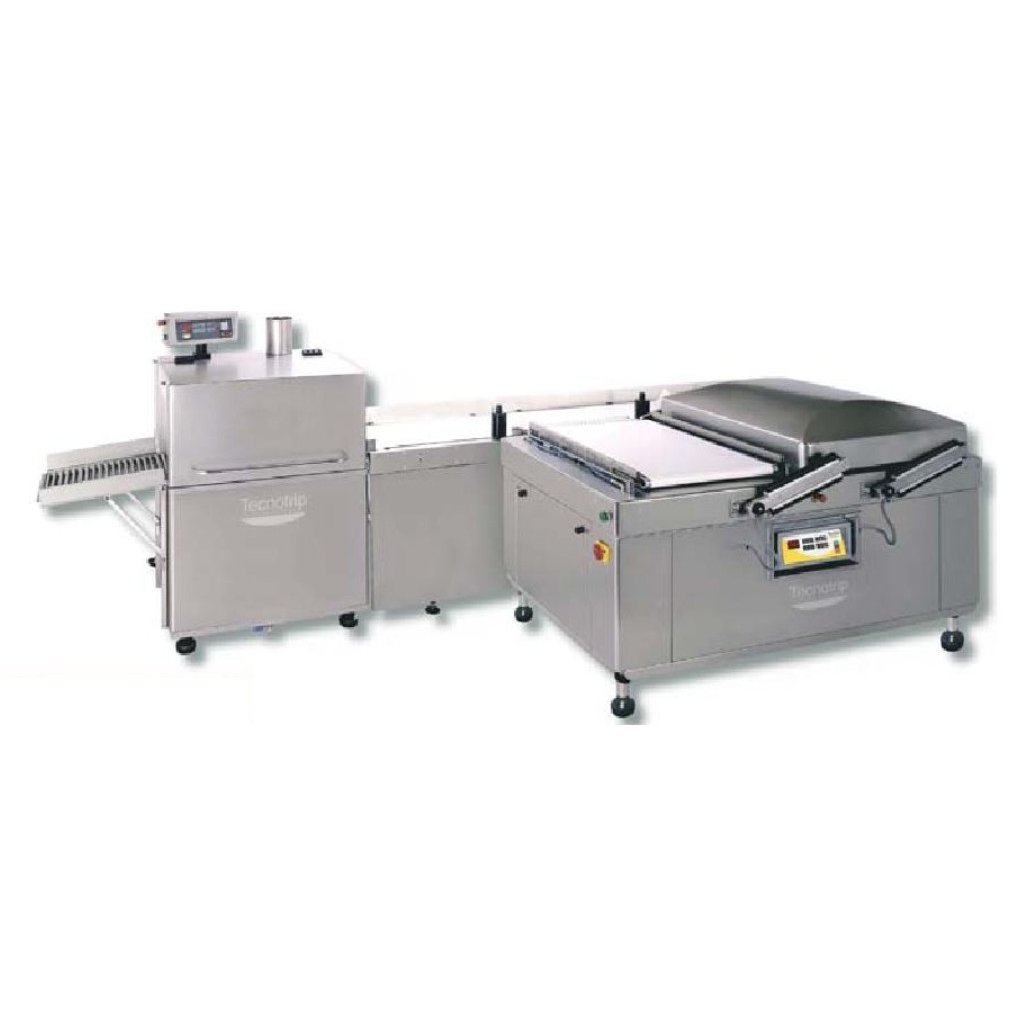

EVDA-20 automatic vacuum packing and shrink line

Automatic vacuum packing and shrink line made up of the EVDA-20 double chamber vacuum packer, the CT-3000/400 conveyor and an RET-A-4 or RET-A-4-11 automatic shrink tank, for large production runs with products of all shapes and sizes.

How the line works

1. Each EVDA-20 chamber has its own belt; the evacuation timer lets you choose whether products leave the machine automatically at the end of the cycle.
2. The CT-3000/400 conveyor, synchronised with the packer, carries the packs to the shrink tank.
3. A sensor at the tank inlet detects each pack and starts the shrink cycle: infeed, hot water immersion, draining and outfeed.
4. The TSA bag dryer can be fitted at the tank outlet so packs go straight to weighing and labelling.

Units in the line

• EVDA-20: Automatic double chamber vacuum packer.
• CT-3000/400: Conveyor.
• RET-A-4: Automatic shrink tank.
• RET-A-4-11: High-capacity automatic shrink tank (alternative).
• TSA: Bag dryer (optional).

Ideal for slaughterhouses, cured sausage and fish factories, cheese makers, packing centres and caterers with large production runs.

Line configuration (tank model, dryer, moulds and options of each unit) on request. Data according to Tecnotrip data sheets.
