Mainca FC-25 hydraulic sausage filler with a 25-litre cylinder, adjustable speed and pressure, automatic piston decompression and 3 stainless steel nozzles as standard. Three-phase or single-phase.
Request your no-obligation quote.
MAINCA FC-25 HYDRAULIC SAUSAGE FILLER
Price on request
Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.
Description

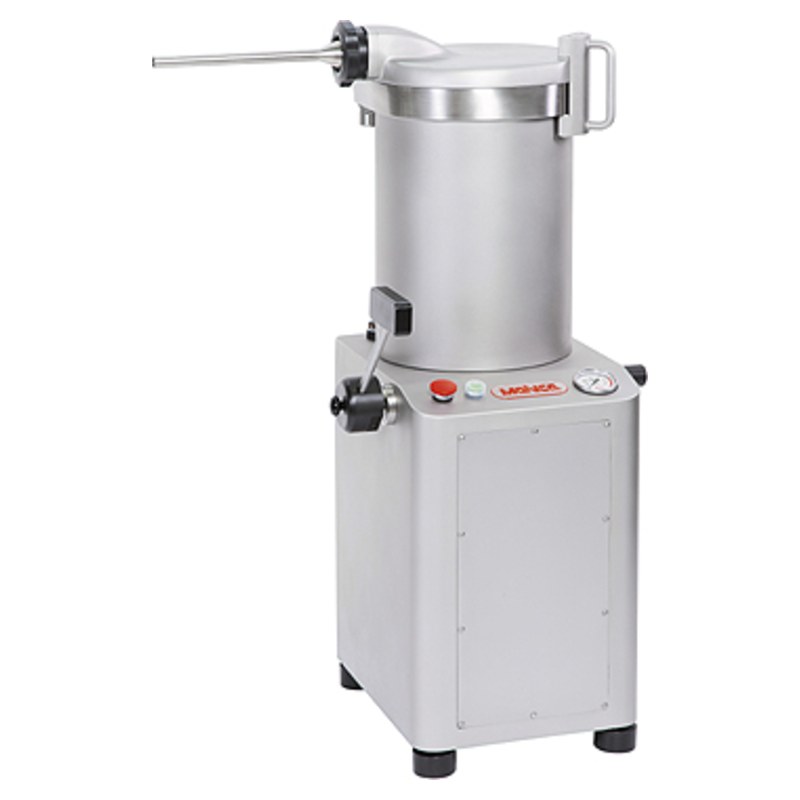

Mainca FC-25 hydraulic sausage filler, 25 litres
The FC-25 is a hydraulic piston filler with a 25 litres cylinder, designed for medium production. The hydraulic unit, with an independent oil tank, is built to work at 120 bar through long sessions.

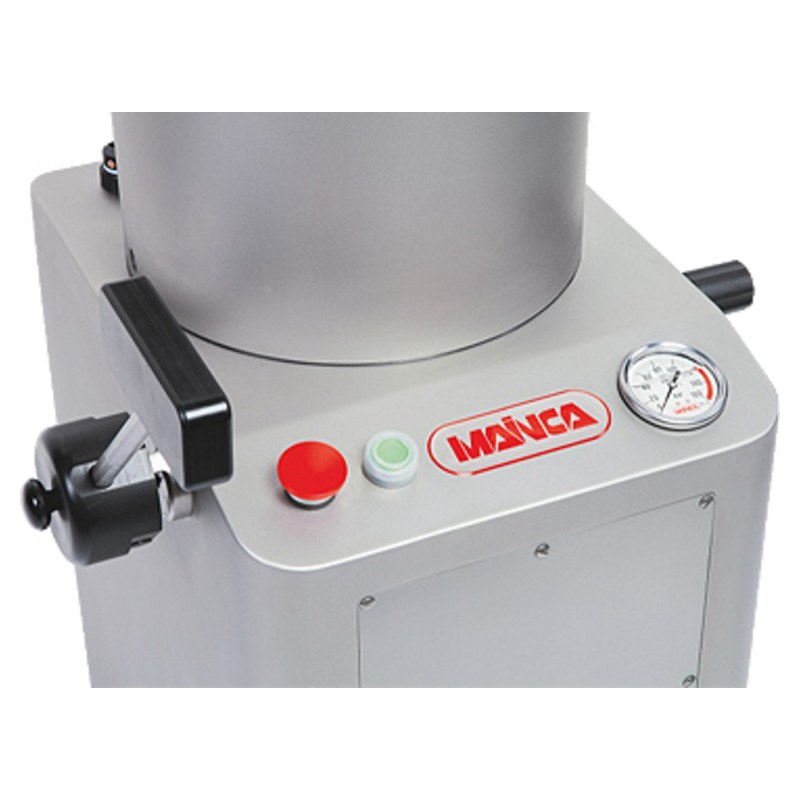

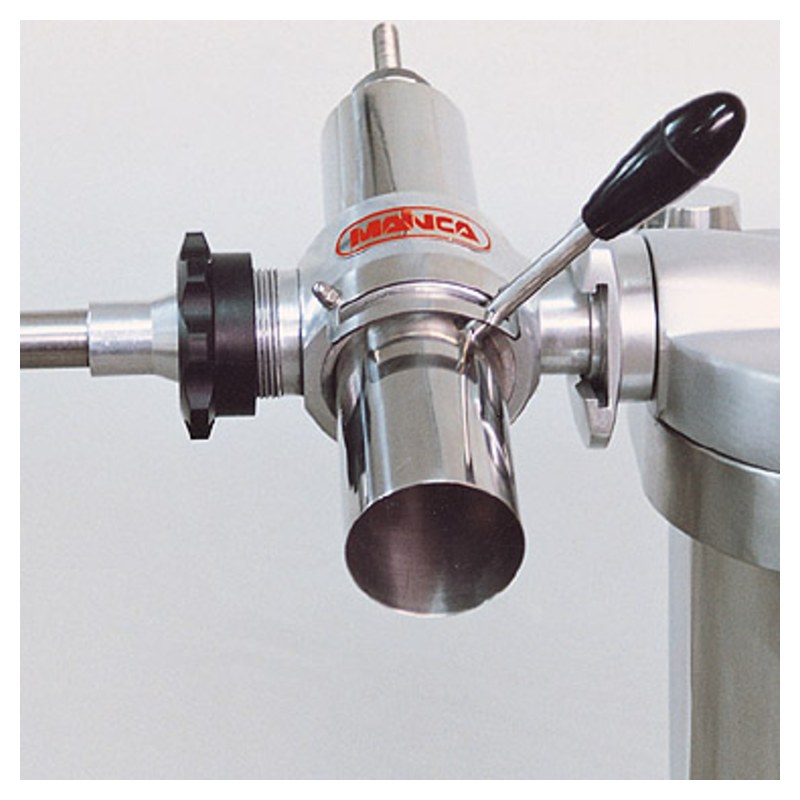

Speed and pressure are set with a knob. When the knee lever is released the piston decompresses automatically and stops the flow through the nozzle. The smooth outlet avoids smearing the meat or dulling its colour.
Advantages
- Fixed cylinder with honed bore and individually fitted piston: maximum tightness and precision.
- Ergonomic, height-adjustable knee lever.
- Supplied with 3 stainless steel nozzles, Ø 15, 20 and 30 mm; Ø 12 and 43 mm optional.
- Easily removed piston for cleaning.
- The single-phase version comes with a forced-ventilation kit as standard.
- AISI 304 stainless steel construction with anodised aluminium lid and piston. Overall height 1,133 mm, net weight 129 kg.
Versions and options

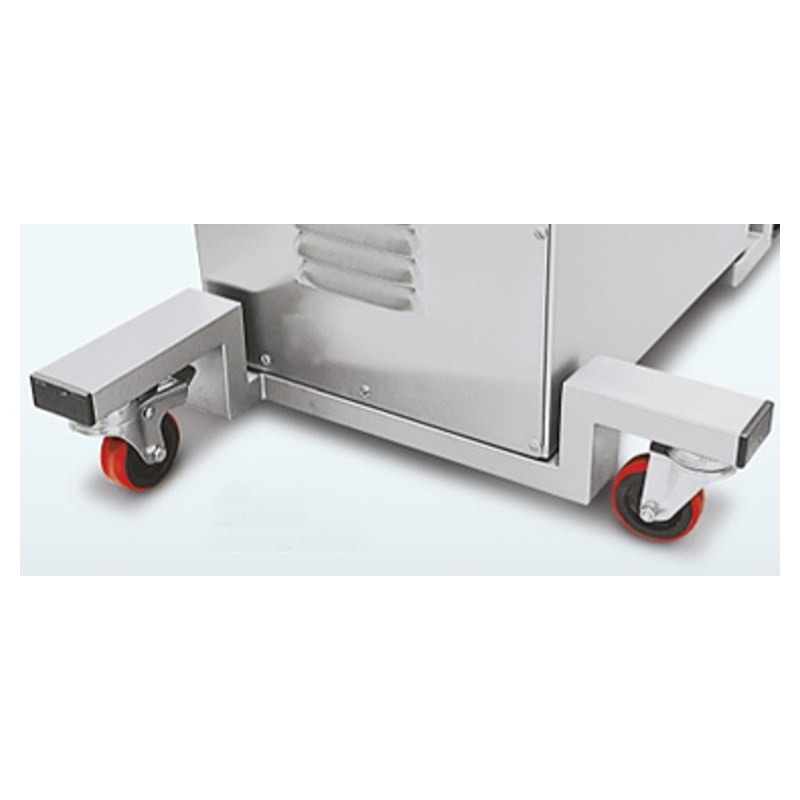

Three-phase motor 1.75 HP (1.29 kW, 230/400 V 50 Hz) — ref. 1FC25R — or single-phase 2.5 HP (1.84 kW, 230 V 50 Hz) — ref. 1FC25A. Options: Stainless steel piston, stainless steel lid and piston, automatic start/stop (three-phase), automatic piston return, wheels or wheels with anti-tip stand, knee-lever lock, manual portioner, dosing valve, Ø 24 mm kofta attachment, PR-360 portioner-twister.
José Bernad is an authorised Mainca distributor: request your no-obligation quote.
Specifications
| Model | FC-25 |
|---|---|
| Brand | Mainca |
| Type | Hydraulic piston sausage filler |
| Cylinder capacity | 25 l |
| Three-phase motor | 1.75 HP · 1.29 kW · 230/400 V 50 Hz |
| Single-phase motor | 2.5 HP · 1.84 kW · 230 V 50 Hz |
| Hydraulic unit | Independent oil tank; works at 120 bar |
| Standard nozzles | 3 stainless steel: Ø 15, 20 and 30 mm |
| Optional nozzles | Ø 12 and 43 mm |
| Knee lever | Ergonomic, height-adjustable |
| Automatic piston return | Optional |
| Versions (Mainca ref.) | 1FC25R three-phase · 1FC25A single-phase |
| Overall height | 1,133 mm |
| Net weight | 129 kg |
| Construction | AISI 304 stainless steel; anodised aluminium lid and piston |
| Options | Stainless steel piston · stainless steel lid and piston · automatic start/stop (three-phase) · automatic piston return · wheels or wheels with anti-tip stand · knee-lever lock · manual portioner · dosing valve · Ø 24 mm kofta attachment · PR-360 portioner-twister |
