testo 176 data logger: professional loggers with 2 million readings, ±0.2 ºC Pt100 sensors or up to 4 thermocouples, humidity and pressure, rugged housing (IP68 on the T1) and up to 8 years battery life.
Request your quote with no obligation.
testo 176 high-performance data logger (T1, T2, T3, T4, H1, H2, P1)
Price on request
Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.
Description

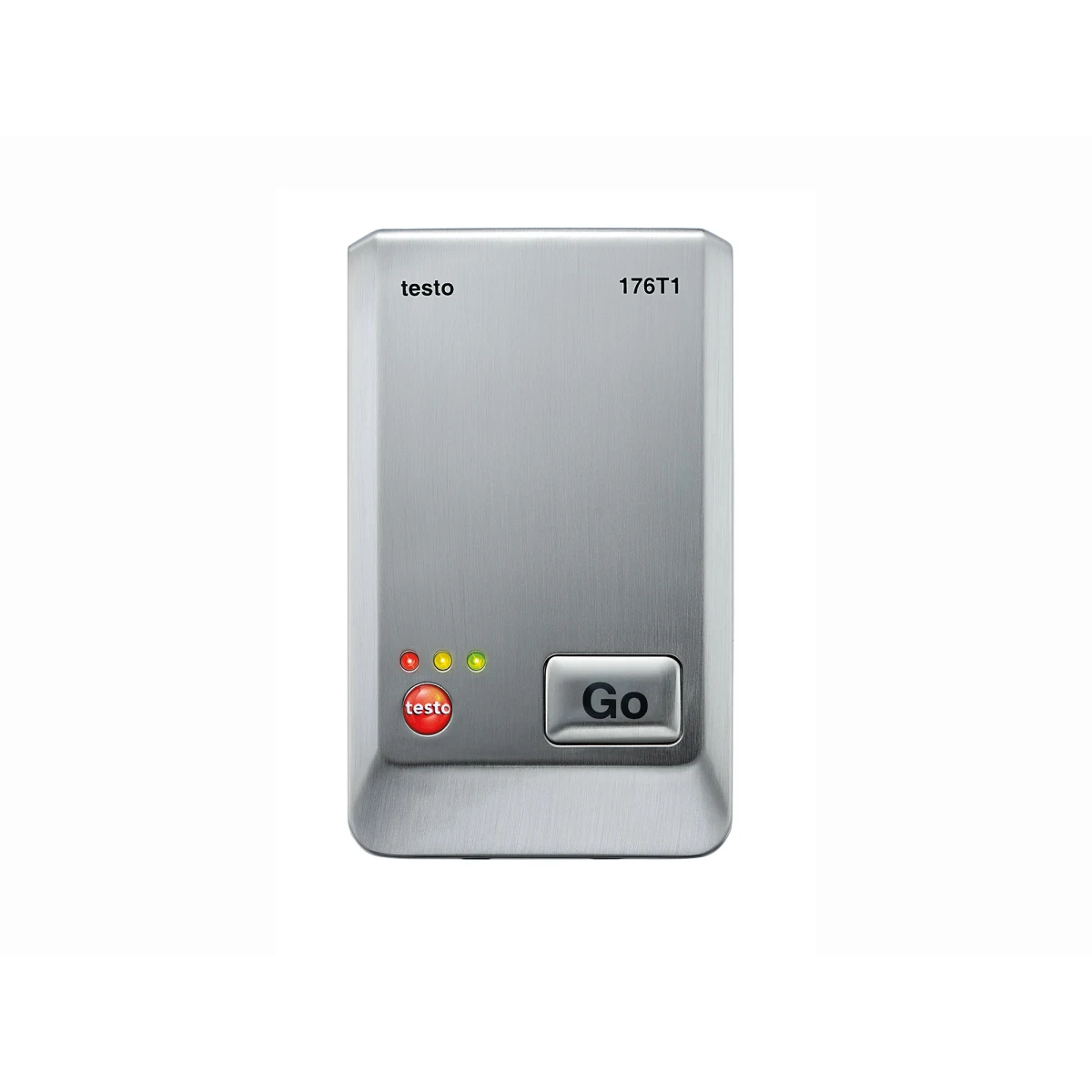

testo 176 data logger
The testo 176 range is testo’s high-performance logger series: 2 million reading memory, intervals from 1 second, high-precision Pt100 sensors (±0.2 ºC) and up to 4 thermocouple channels for thermal processes, autoclaves or validation of ovens and chambers.
The T1 version has an IP68 (1 m) waterproof housing and a lithium battery lasting up to 8 years. The H1/H2 versions log humidity and temperature, and the P1 adds absolute pressure. Read-out via USB or SD card and analysis with testo ComSoft.
Key features
- 2 million reading memory
- ±0.2 ºC Pt100 with 0.01 ºC resolution
- Up to 4 thermocouples (K, T, J) from -200 to +1,000 ºC
- Humidity and absolute pressure (H1, H2, P1)
- T1 with IP68 waterproof housing
- Up to 8 years battery life; USB and SD card
Applications

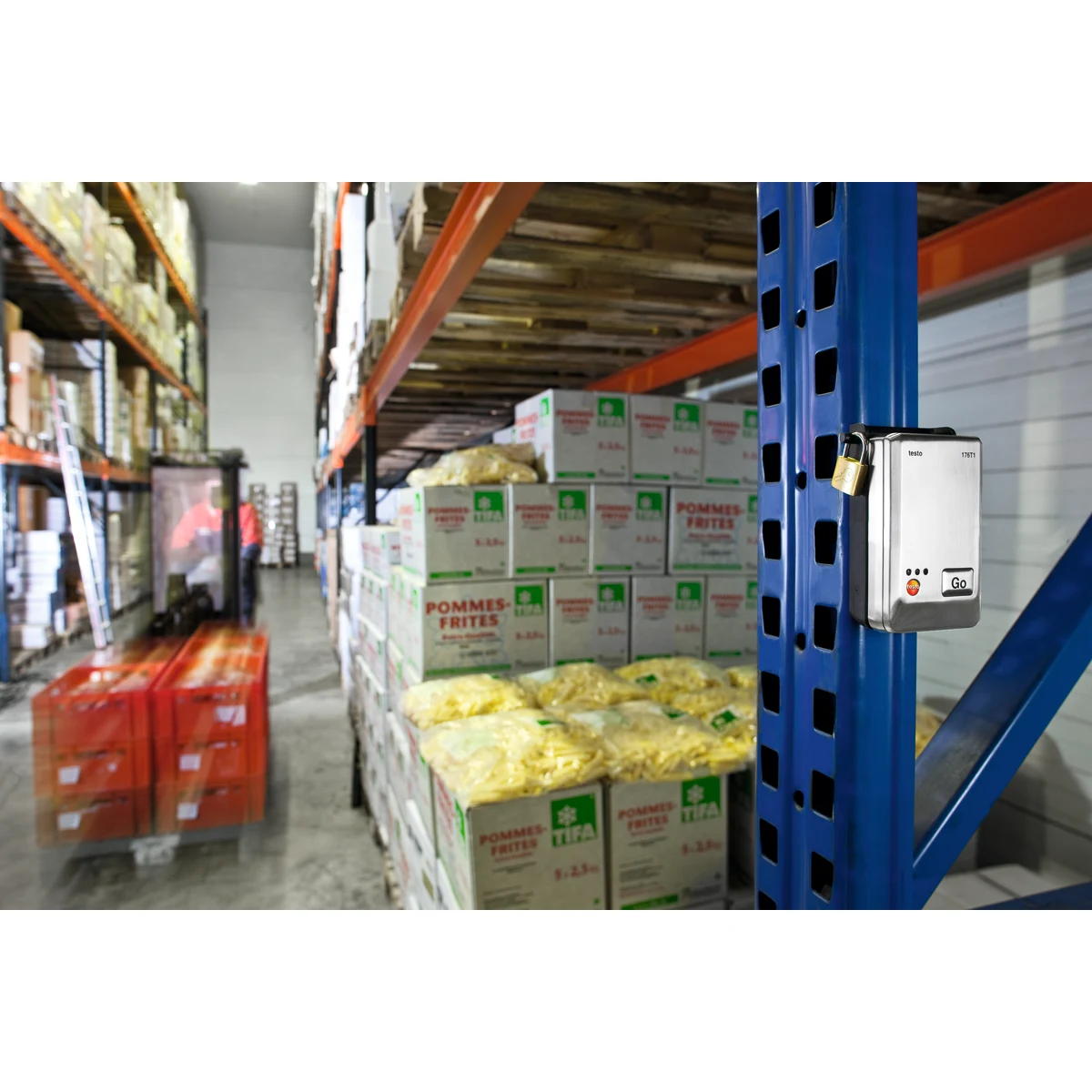

- Validation of chambers, ovens and autoclaves
- Thermal processes in the food industry
- Laboratories and pharma
- HVAC and environmental monitoring
Versions and references
| testo reference | Version |
|---|---|
| 0572 1761 | testo 176 T1: internal Pt100, IP68 housing |
| 0572 1762 | testo 176 T2: 2 external Pt100 probes, LCD display |
| 0572 1763 | testo 176 T3: 4 thermocouple channels |
| 0572 1764 | testo 176 T4: 4 thermocouple channels with LCD display |
| 0572 1765 | testo 176 H1: humidity and temperature with LCD display |
| 0572 1766 | testo 176 H2: high-performance humidity and temperature |
| 0572 1767 | testo 176 P1: pressure, temperature and humidity |
See the specifications table for technical data.
Downloads
- testo 176 T1 / T2 data sheet (PDF, 493 KB)
- testo 176 instruction manual (PDF, 4.4 MB)
Price on request: add it to your quote request and we will reply with price and lead time.
Specifications
| Weight | 0,39 kg |
|---|---|
| Reference | 0572 1761 (testo 176 T1) |
| Brand | testo |
| Model | testo 176 T1 / T2 / T3 / T4 / H1 / H2 / P1 |
| Type | High-performance data logger with display |
| Channels | T1: internal Pt100; T2: 2 external Pt100; T3/T4: 4 thermocouples; H1/H2: humidity and temperature; P1: pressure, humidity and temperature |
| Measuring range | T1: -35 to +70 ºC; T2: -100 to +400 ºC; T3/T4 type K: -200 to +1,000 ºC; P1: 600 to 1,100 mbar |
| Accuracy | Pt100: ±0.2 ºC; thermocouple: ±0.3 ºC (-100 to +70 ºC) |
| Resolution | 0.01 ºC (Pt100); 0.1 ºC (thermocouple) |
| Measuring interval | 1 s to 24 h |
| Memory capacity | 2,000,000 readings |

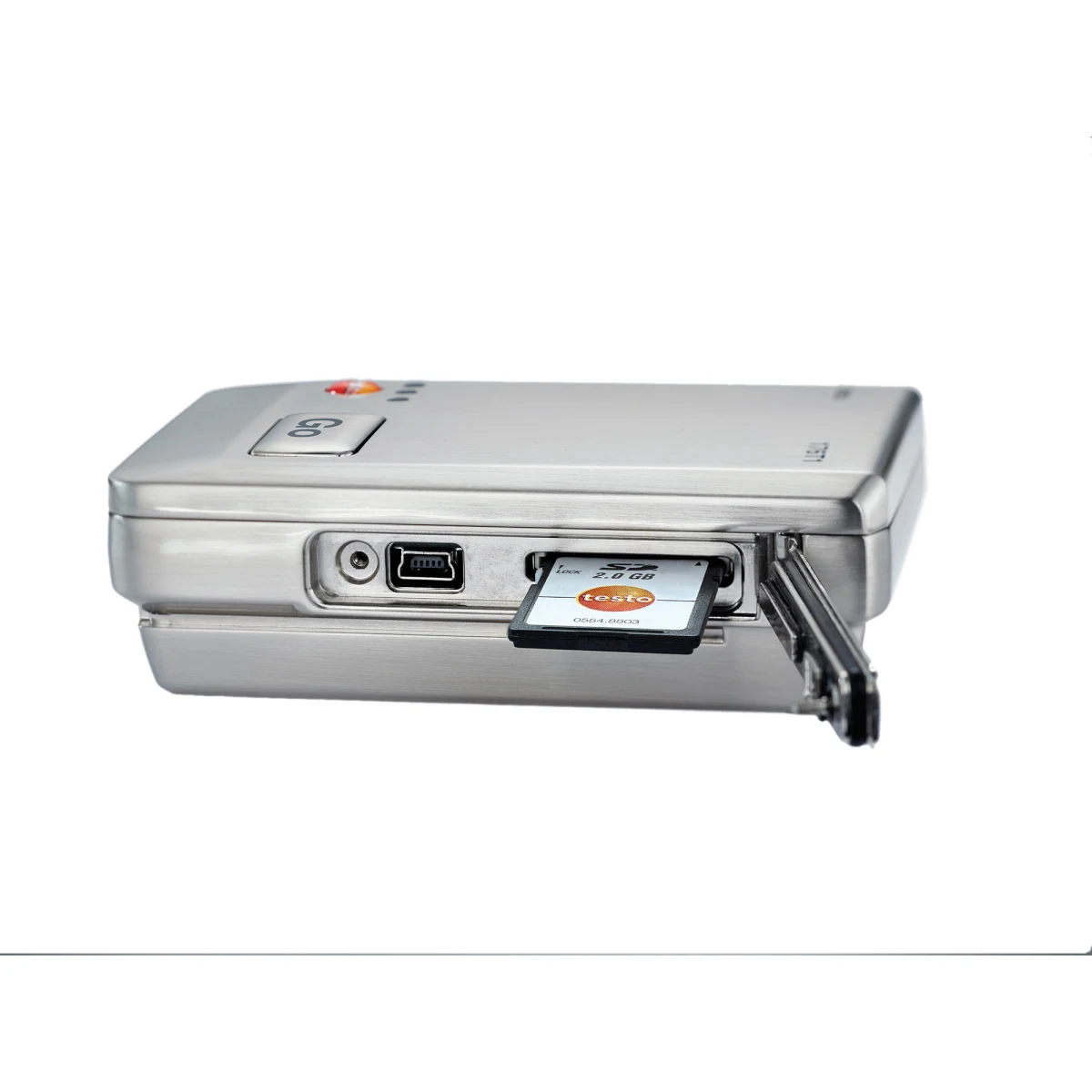

| Interface | Mini USB and SD card slot |
| Protection rating | IP68 up to 1 m (T1) |
| Power supply | TL-5903 lithium battery; up to 8 years (15 min interval) |
| Dimensions | 103 x 63 x 33 mm (T1) |
| Weight | 390 g (T1) |
| Standards | EN 12830; EU Directive 2014/30/EU; 2011/65/EU |
