testo 510 differential pressure meter (set): pocket 0 to 100 hPa meter with 0.01 hPa resolution and velocity calculation with Pitot tube; set with silicone hose, adapter and case.
Request your quote with no obligation.
testo 510 differential pressure meter (set)
Price on request
Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.
Description
testo 510 differential pressure meter

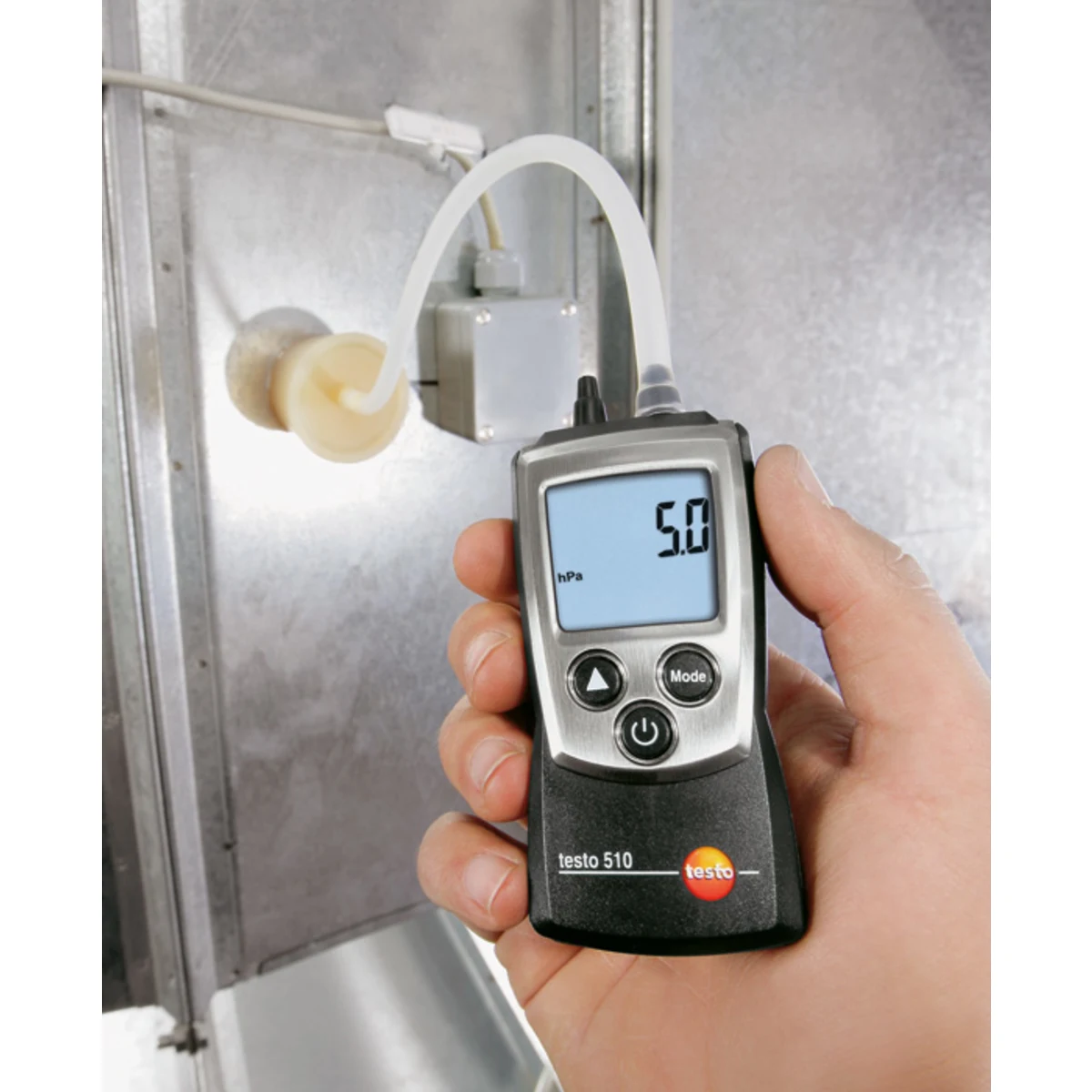

The testo 510 is a pocket digital manometer for measuring differential pressure from 0 to 100 hPa on HVAC systems, filters, burners and gas pressure. With a Pitot tube it also calculates air velocity in ducts.

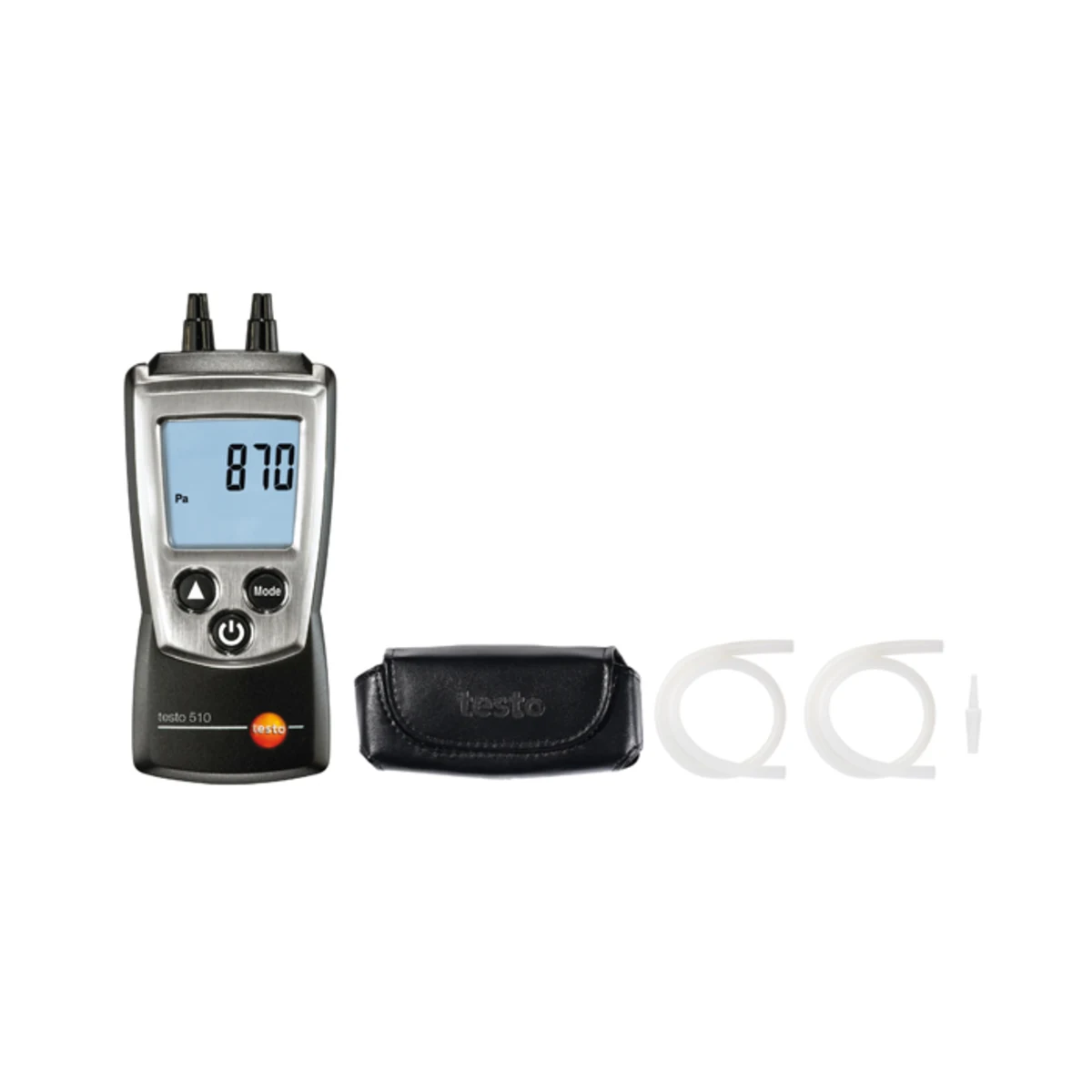

It displays multiple pressure units, is very light (90 g) and comes as a set with silicone hose, nozzle adapter, protective cap and belt case.
Key features
- 0 to 100 hPa range with 0.01 hPa resolution
- Air velocity with Pitot tube (optional)
- 10 selectable units
- Compact: 90 g with cap and batteries
- Set with silicone hose and case
Applications
- Filters and HVAC
- Gas pressure and burners
- Cleanrooms and pressure differences between rooms
See the specifications table for technical data.
Downloads
- testo 510 product brochure (PDF, 331 KB)
- testo 510 instruction manual (multilingual) (PDF, 1.1 MB)
Price on request: add it to your quote request and we will reply with price and lead time.
Specifications
| Weight | 0,09 kg |
|---|---|
| Reference | 0563 0510 (set) |
| Brand | testo |
| Model | testo 510 |
| Type | Pocket differential pressure meter |
| Measuring range | 0 to 100 hPa |
| Accuracy | ±0.03 hPa (0 to 0.30 hPa); ±0.05 hPa (0.31 to 1 hPa); ±(0.1 hPa + 1.5% of reading) (1.01 to 100 hPa) |
| Resolution | 0.01 hPa |
| Units | hPa, mbar, Pa, mmH₂O, inH₂O, inHg, mmHg, psi, m/s, fpm |
| Protection rating | IP40 |
| Power supply | 2 AAA batteries, 50 h |
| Dimensions | 119 x 46 x 25 mm |
| Weight | 90 g |
Related products
-

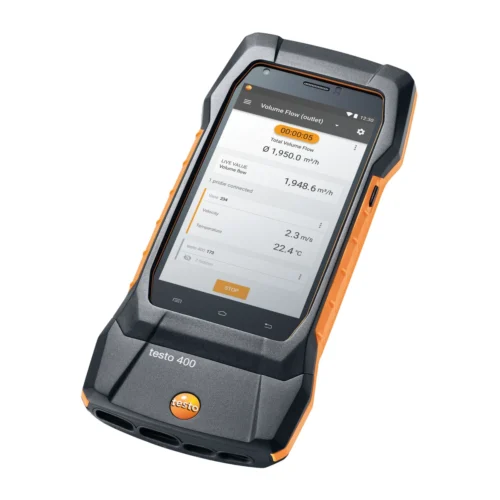

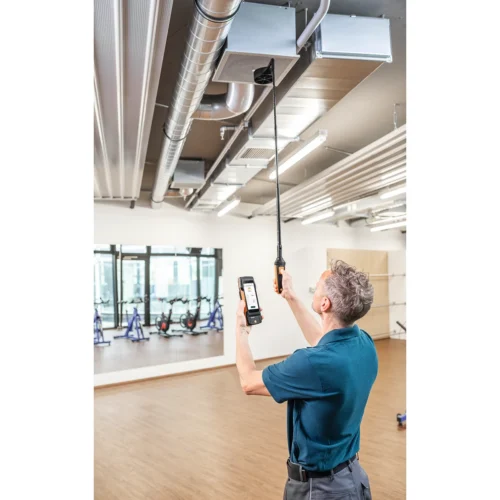

Humidity & indoor climatetesto 400 universal HVAC and IAQ instrument
-

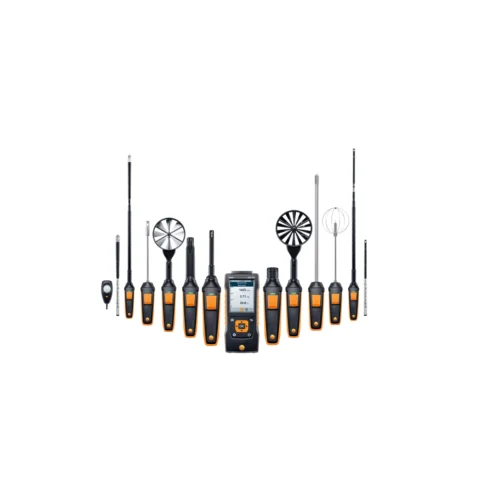

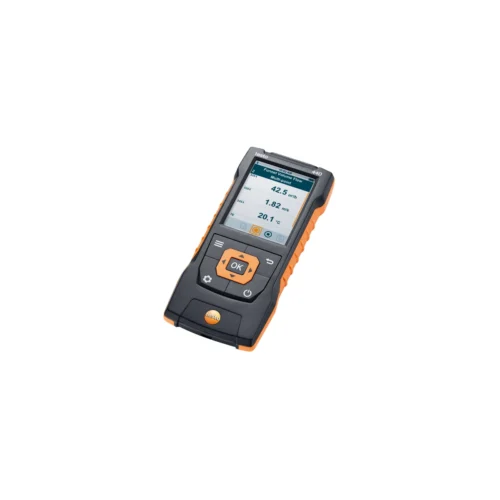

Humidity & indoor climatetesto 440 multifunction HVAC instrument
-

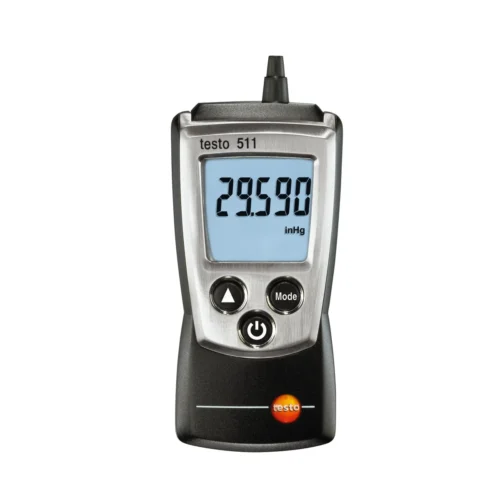

Pressure gauges & differential pressuretesto 511 absolute pressure meter
