ULTRA 1000 BOLLARD

Description

ULTRA 1000 bollard: 1-metre protection for heavy-load traffic

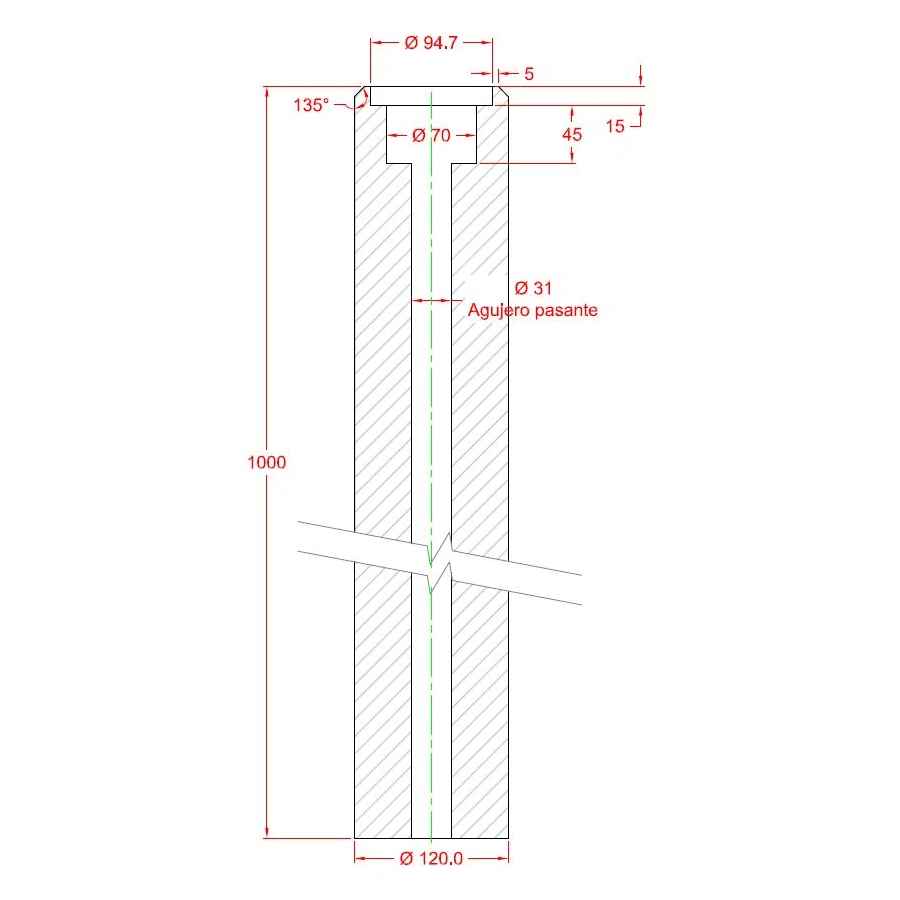

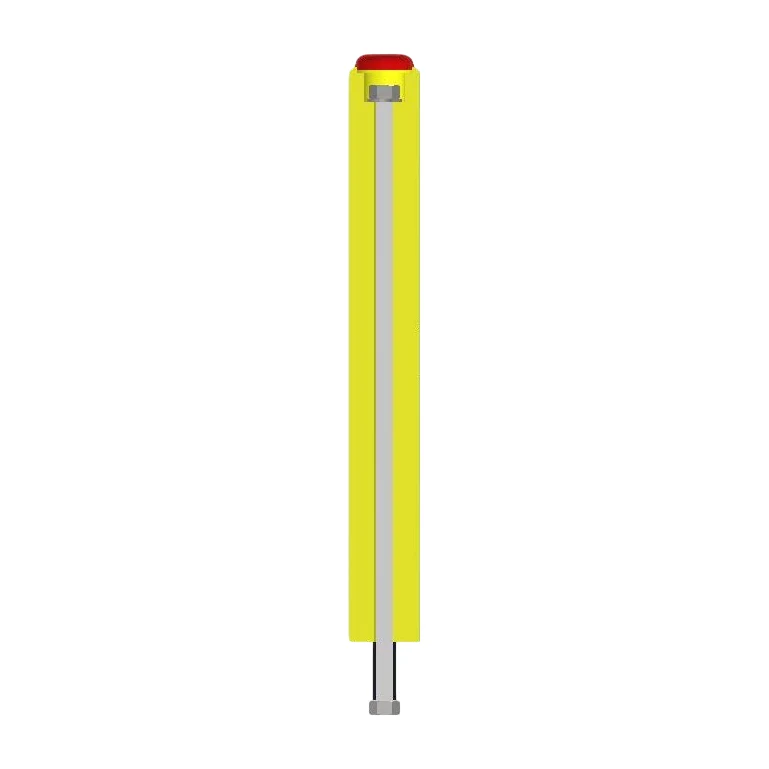

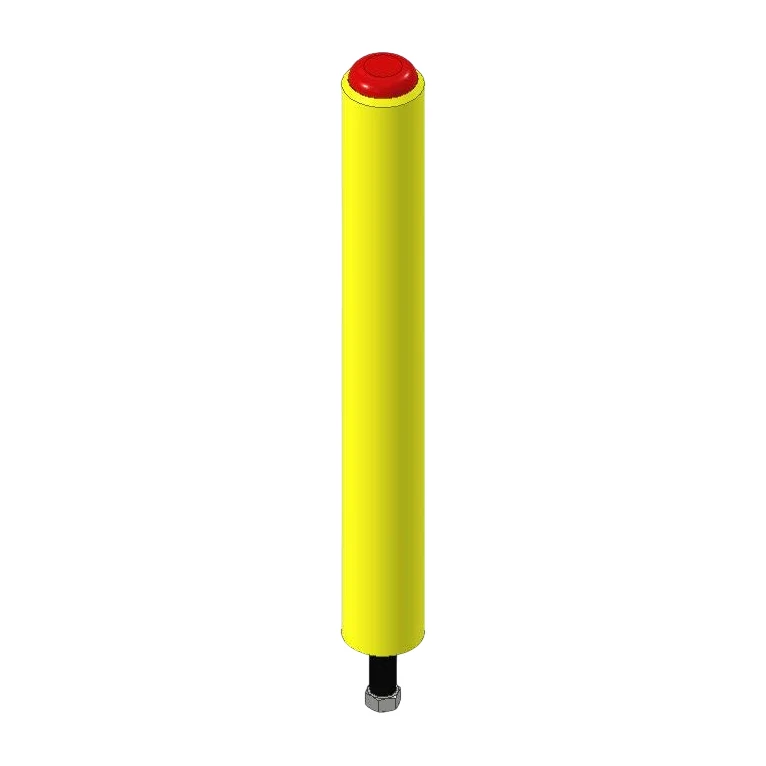

The ULTRA 1000 bollard is used in industries where heavy loads are moved at high speed. It is 1,000 mm high with a diameter of 120 mm, has a high-density polyethylene solid body and a core made of a class 8.8 steel rod, Ø 30 mm. Its great versatility means it can be used to protect any element: walls, doors, pillars, shelving or machinery.

It is designed so that, when it receives a force greater than the resistance it offers, the rod bends without damaging the floor or the anchoring. The rod can then be easily replaced without any building work.

Technical specifications

• Height: 1,000 mm
• Diameter: Ø 120 mm
• Solid body: high-density polyethylene
• Core: class 8.8 steel rod, Ø 30 mm
• Anchoring: PVC housing and metal nut, with a 150 mm shank
• Suitable for: pallet trucks, stackers and forklifts
• Marking: CE
• Suitable for food use
• Made in Spain

Advantages

• ✔ 1 metre high: the tallest bollard in our security bollard range
• ✔ Designed for pallet trucks, stackers and forklifts
• ✔ If an impact exceeds its resistance, the rod bends, not the floor or the anchoring
• ✔ The rod can be replaced without building work
• ✔ Can protect any element of the facility

Applications

Protection of pillars, walls, doors, shelving and machinery in industrial buildings, warehouses and loading areas where pallet trucks, stackers or forklifts move heavy loads at high speed.

Comparison with our other bollard ranges

• ULTRA Range: high-density polyethylene solid body with an 8.8 steel core and Ø 120 mm, in two heights: ULTRA 1000 (1,000 mm, this bollard) and ULTRA 500 (500 mm). For industries where heavy loads are moved at high speed with pallet trucks, stackers or forklifts.
• Plus Range, Top Range and Basic Range: polyethylene and polypropylene bollards, 250 and 450 mm high, in complete versions and with 1, 2 or 4 outlets. Designed for industries where the loads moved are not too heavy and mostly handled with manual pallet trucks.

See all models in ULTRA Range and in Security bollards.

Frequently asked questions

What is the difference between the ULTRA 500 and the ULTRA 1000?

Only the height: the ULTRA 500 is 500 mm high and the ULTRA 1000 is 1,000 mm high. Both have a diameter of 120 mm, a high-density polyethylene solid body, a class 8.8 steel rod core, Ø 30 mm, and the same anchoring.

How does the ULTRA 1000 bollard differ from the Basic, Top and Plus ranges?

In construction and use. The ULTRA 1000 has a high-density polyethylene solid body with a class 8.8 steel rod core, Ø 30 mm, and is designed for heavy loads moved at high speed. The Basic, Top and Plus ranges are 250 and 450 mm high and are designed for loads that are not too heavy, mostly moved with manual pallet trucks.

Which vehicles is it suitable for?

It is suitable for areas with pallet truck, stacker and forklift traffic.

What happens if the bollard takes a very hard hit?

When it receives a force greater than the resistance it offers, the steel rod bends without damaging the floor or the anchoring. The rod is easily replaced, without any building work.

How is it anchored to the floor?

With an anchoring system made of a PVC housing and a metal nut, with a 150 mm shank.

What is the price?

The ULTRA 1000 bollard is sold on request. For information and prices, please contact [email protected].
