Price on request

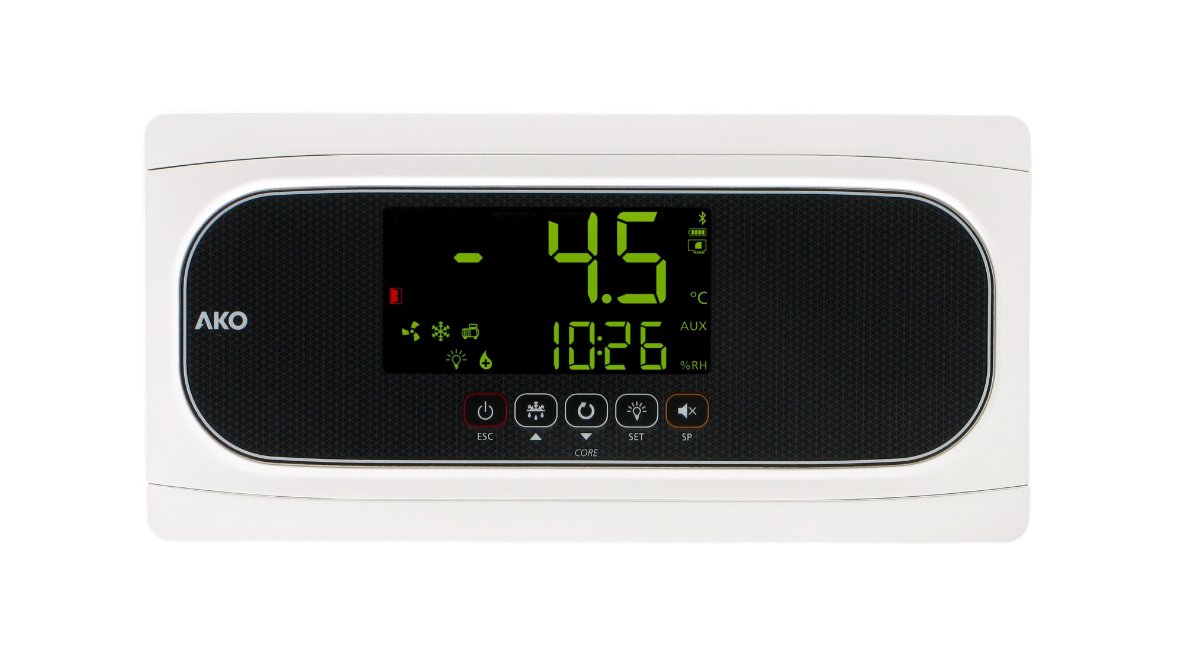

AKOCORE AKO-16624 temperature and humidity controller for cold rooms: AKO controller for storage, ripening, drying and curing rooms: controls temperature and humidity with 7 relays and an analogue output for humidification.
Request your quote with no obligation.
Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.
The AKOCORE AKO-16624 controls both temperature and humidity in the room. It works with a neutral zone for cooling and heating and for humidification and dehumidification, or in temperature-only mode. It is AKO’s solution for storage and ripening rooms, drying and curing rooms, wine cellars or flower rooms, with a four-step start-up wizard.
| AKO reference | Version |
|---|---|
| AKO-16624 | Temperature and humidity controller, 100-240 V~ |
See the specifications table for technical data.
Price on request: add it to your quote request and we will reply with price and lead time.
| Reference | AKO-16624 |
|---|---|
| Brand | AKO |
| Range | AKOCORE |
| Power supply | 100-240 V~ 50/60 Hz |
| Power consumption | 10 VA (240 V~) |
| Relays | 7 voltage-free (COOL, FAN, DEF, HUMID, AUX 1, AUX 2, AUX 3) |
| DEF and AUX 1 relays | SPDT 20 A; NO 15 (15) A / NC 15 (13) A 250 V~ |
| COOL, FAN, HUMID and AUX 3 relays | SPST 16 A; 12 (9) A 250 V~ |
| Temperature probe | NTC |
| Humidity input | 4-20 mA (0-100% RH) |
| Analogue output | 4-20 mA / 0-10 V |
| Measuring range | -50.0 ºC to 99.9 ºC |
| Resolution | 0.1 ºC |
| Accuracy | ±1 ºC |
| Protection rating | IP65 |
| Dimensions | 290 x 141 x 84.4 mm (W x H x D) |
| Operating temperature | -10 ºC to 50 ºC |
| Communications | Modbus; CAMM module; AKONET.Cloud |
