Baxtran BRT weigh beams: pair of 1,500 or 3,000 kg weigh beams in painted or stainless steel, without indicator. Indicator not included.
Request your no-obligation quote.
BAXTRAN BRT WEIGH BEAMS (PAIR)
Price on request
Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.
Description

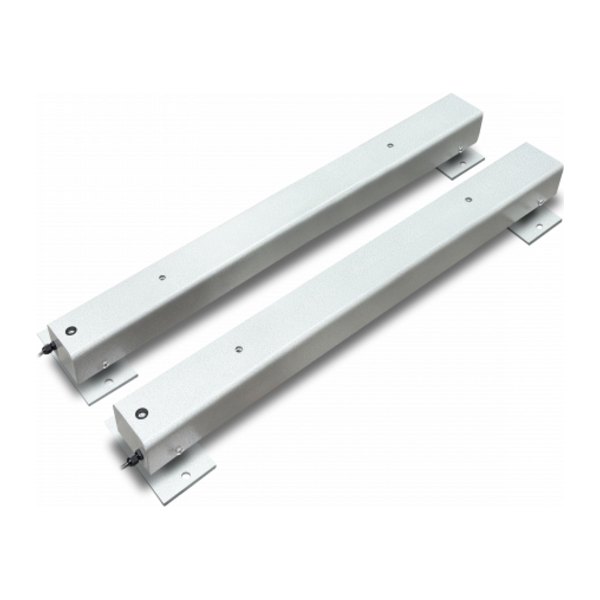

Baxtran BRT weigh beams: pair of 1,500 or 3,000 kg weigh beams in painted or stainless steel, without indicator
The BRT are weigh beams supplied in pairs to place under pallets, tanks, cages or structures and weigh them where they stand. Also in stainless steel with IP68 stainless load cells.
Height-adjustable feet, IP66 ABS junction box and 2 m of cable per beam to a single connector. Painted steel beams use IP67 nickel-plated steel OIML R-60 load cells.
There are legal-for-trade and non-legal references (see table). Supplied without indicator: combine it with the Baxtran weight indicator that best suits the job.
Construction and standard equipment
- Pair of beams with adjustable feet
- IP67 nickel-plated steel OIML R-60 load cells (IP68 stainless on stainless beams)
- IP66 ABS junction box
- 2 m cable per beam with single connector
Standards
References 260206, 260208, 260210 and 260211 legal for trade; OIML R-60 load cells.
Versions and Baxtran references
| Baxtran ref. | Capacity (kg) | Division (g) | Material | Beam (mm) | Legal for trade |
|---|---|---|---|---|---|
| 260206 | 1,500 | 500 | Painted steel | 1250 × 100 | Yes |
| 260207 | 1,500 | 500 | Painted steel | 1250 × 100 | No |
| 260208 | 3,000 | 1,000 | Painted steel | 1250 × 100 | Yes |
| 260209 | 3,000 | 1,000 | Painted steel | 1250 × 100 | No |
| 260210 | 1,500 | 500 | Stainless steel | 1250 × 100 | Yes |
| 260211 | 3,000 | 1,000 | Stainless steel | 1250 × 100 | Yes |
Supplied in pairs.
Applications
Livestock, warehouses, industry and construction: weighing irregular or oversized loads without a fixed platform.
See all weighing platforms. José Bernad is an authorised Baxtran distributor: request your no-obligation quote.
Specifications
| Model | BRT |
|---|---|
| Brand | Baxtran |
| Type | Weigh beams (pair), without indicator |
| Capacity | 1,500 kg or 3,000 kg |
| Size of each beam | 1250 × 100 mm |
| Construction | Painted steel or stainless steel; adjustable feet |
| Load cells | IP67 nickel-plated steel OIML R-60 (IP68 stainless on stainless beams); IP66 ABS junction box |
| Cable | 2 m per beam, single connector |
| Indicator | Not included (chosen separately) |
| Standards | References 260206, 260208, 260210 and 260211 legal for trade; OIML R-60 load cells. |
| Baxtran references | 260206 · 260207 · 260208 · 260209 · 260210 · 260211 |
