Baxtran XFI weigh beams: pair of 3,000 kg weigh beams with IP68 load cells, handles, wheels and battery BR15 LCD indicator. 800 and 1250 mm lengths.
Request your no-obligation quote.
BAXTRAN XFI 3,000 KG WEIGH BEAMS WITH LCD INDICATOR
Price on request
Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.
Description

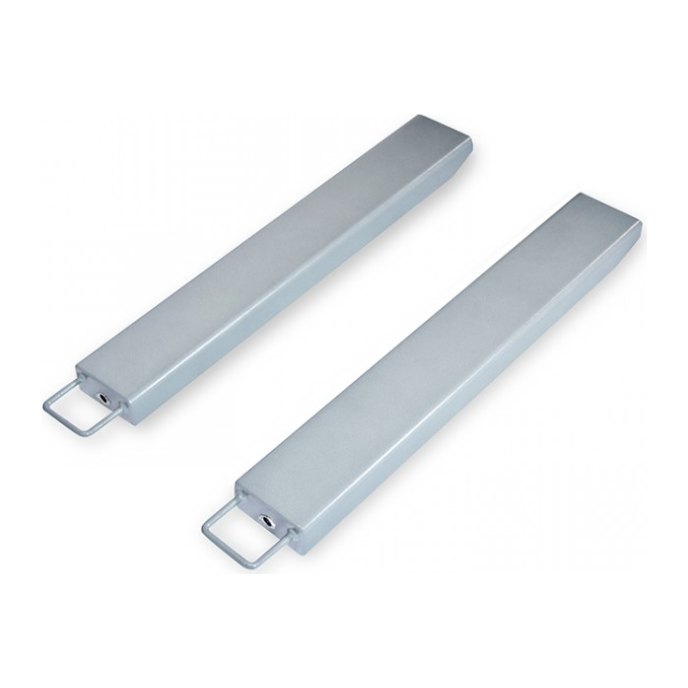

Baxtran XFI weigh beams: pair of 3,000 kg weigh beams with BR15 LCD indicator
The XFI is a pair of weigh beams of 3,000 kg with 1 kg division that go under any load to weigh it without a fixed platform.
Made of painted steel, with an open underside, handles and wheels to move them and rigid adjustable feet. They use IP68 aluminium load cells and interconnecting cables with connector.
They pair with the BR15 indicator: 30 mm backlit LCD, RS232 output and a battery lasting up to 120 hours, with accumulation, animal hold and limit checking. Lengths of 800 and 1250 mm.
Construction and standard equipment
- Pair of painted steel beams with handles and wheels
- IP68 aluminium load cells and rigid adjustable feet
- BR15 ABS indicator (IP54) with 6-digit 30 mm backlit LCD and 6 V/4 Ah battery lasting up to 120 h
- Interconnecting cables with connector and RS232 output
Functions
Zero, tare, gross/net, accumulation and totalisation, piece counting, limit checkweighing with visual and audible alarm, four hold modes (including moving-animal weighing and peak value), three conversion speeds and configurable gravity. Units kg, t, g and lb.
Versions and Baxtran references
| Baxtran ref. | Capacity (kg) | Division (g) | Beam (mm) |
|---|---|---|---|
| 260741 | 3,000 | 1,000 | 800 × 120 |
| 260742 | 3,000 | 1,000 | 1250 × 120 |
Supplied in pairs.
Applications
Livestock farms, warehouses, building sites and industry that need to weigh loads in different places or of special sizes.
See all floor scales. José Bernad is an authorised Baxtran distributor: request your no-obligation quote.
Specifications
| Model | XFI |
|---|---|
| Brand | Baxtran |
| Type | Weigh beams (pair) with indicator |
| Capacity | 3,000 kg |
| Division | 1 kg |
| Size of each beam | 800 × 120 mm or 1250 × 120 mm |
| Construction | Painted steel, open underside, handles and wheels, rigid adjustable feet |
| Load cells | Aluminium, IP68 |
| Indicator | BR15 (ABS, IP54), 6-digit 30 mm backlit LCD |
| Power supply | Mains adapter 110-240 V AC and 6 V/4 Ah battery (up to 120 h) |
| Connectivity | RS232 for PC or printer |
| Baxtran references | 260741 · 260742 |
