EVC-26 automatic vacuum packer by Tecnotrip: vacuum, sealing and vacuum + gas (MAP), chamber 1020 × 1145 × 305 mm, pump Busch 1 × 250 or 2 × 250 m³/h.
Request a no-obligation quote.
EVC-26 AUTOMATIC VACUUM PACKER
Price on request
Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.
Description

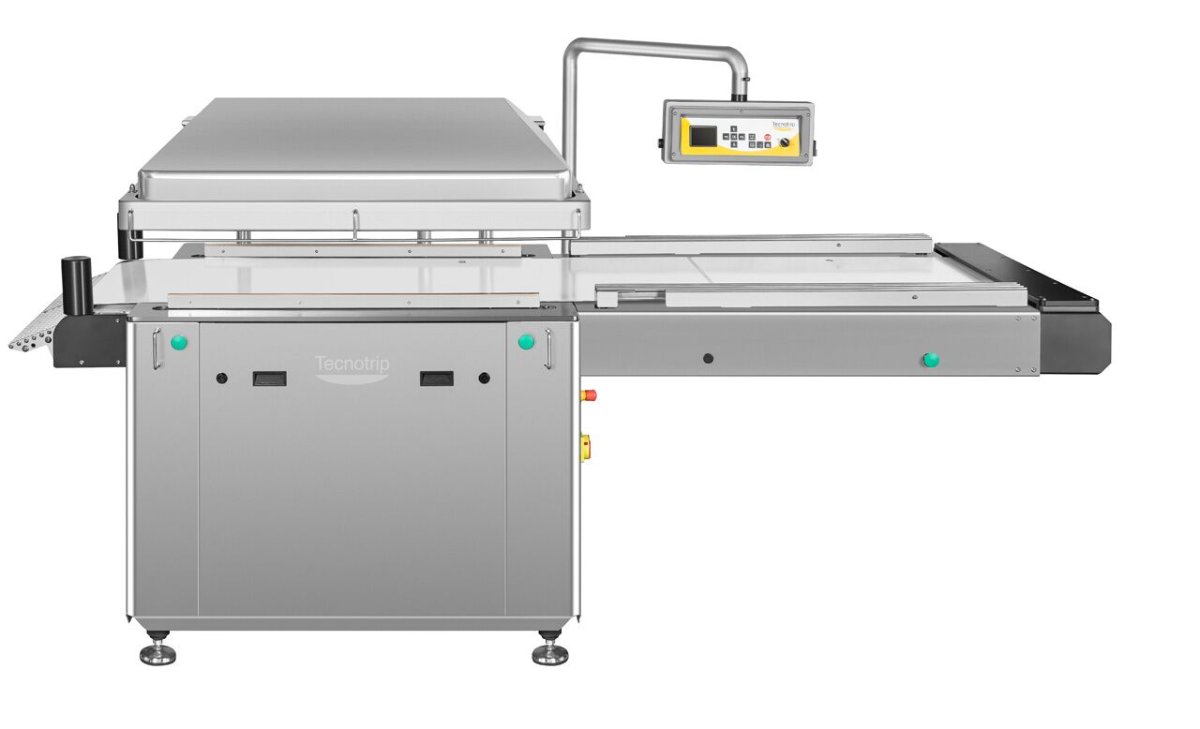

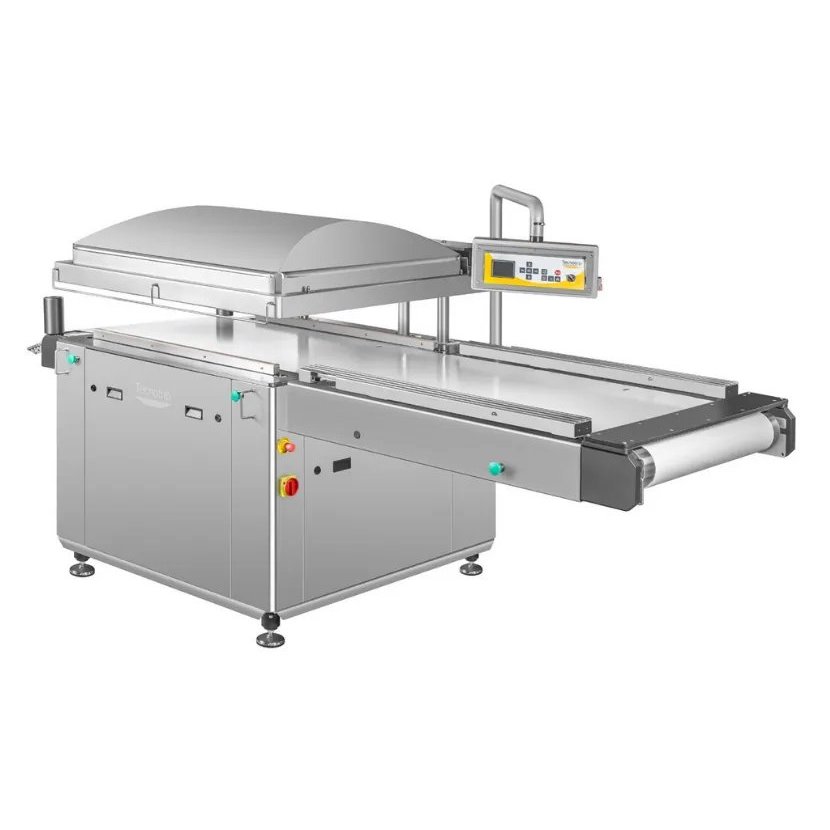

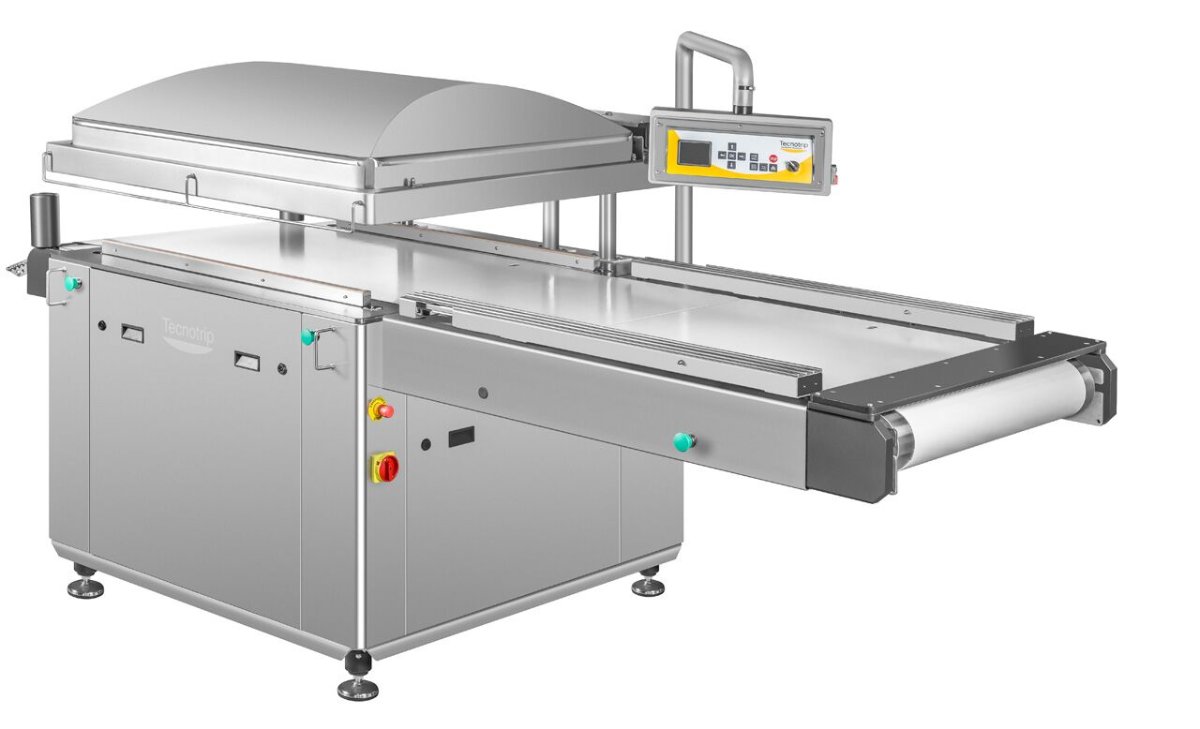

EVC-26 automatic vacuum packer
The EVC-26 is a chamber vacuum packer with automatic conveyor loading and unloading, designed to be integrated into fully automatic lines and synchronised with shrink tunnels. While the cycle runs, bags are placed on the other side of the chamber.
Ideal for slaughterhouses, cured sausage and fish factories with large production runs of medium and large products.
Advantages
- Packing: Vacuum, sealing and vacuum + gas (MAP).
- Chamber: 1020 × 1145 × 305 mm.
- Sealing bars: 2 bars of 1000 mm.
- Sealing types: Single, single + excess trimming and double (individually adjustable).
- Vacuum pump: Busch 1 × 250 or 2 × 250 m³/h.
- Control panel: Digital sensor-controlled programmer, 30 programs, smart vacuum control and vacuum check.
- Options: Bag excess pre-cutting.
- Format: external dimensions 2950 × 1275 × 1500 mm, weight 950 kg, power supply 380 V · 50/60 Hz · three-phase.

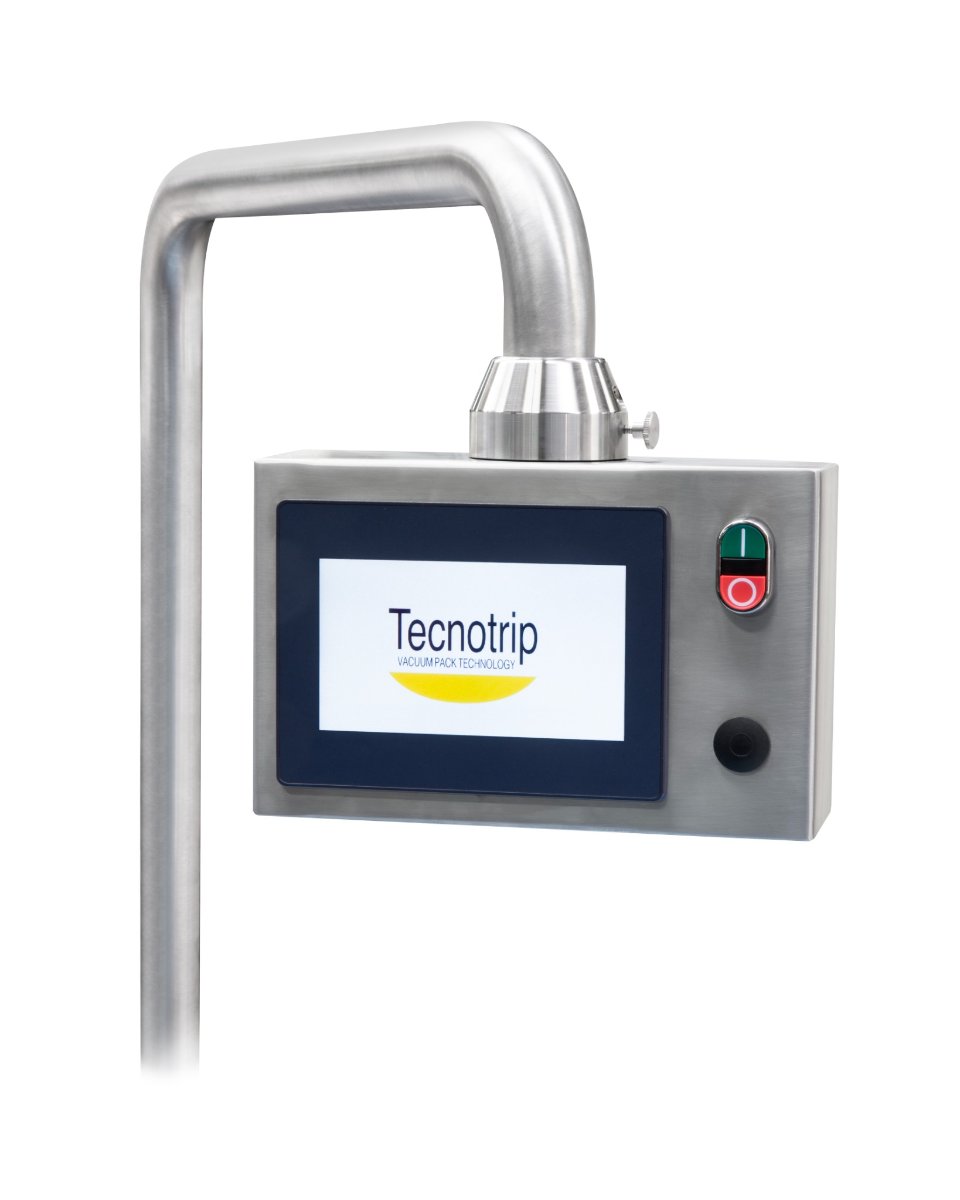

- Extendable, swivelling control panel.
- Easy cleaning and maintenance.
Tecnotrip reference: EVC-26.
See also our other automatic vacuum packers.
Specifications
| Weight | 950 kg |
|---|---|
| Model | EVC-26 |
| Brand | Tecnotrip |
| Type | Chamber vacuum packer with automatic conveyor loading and unloading |
| Packing | Vacuum, sealing and vacuum + gas (MAP) |
| External dimensions | 2950 × 1275 × 1500 mm |
| Chamber | 1020 × 1145 × 305 mm |
| Sealing bars | 2 bars of 1000 mm |
| Sealing types | Single, single + excess trimming and double (individually adjustable) |
| Vacuum pump | Busch 1 × 250 or 2 × 250 m³/h |
| Control panel | Digital sensor-controlled programmer, 30 programs, smart vacuum control and vacuum check |
| Cycles per minute | 2–3 |
| Power | 15 kW |
| Power supply | 380 V · 50/60 Hz · three-phase |
| Compressed air | 6 bar |
| Options | Bag excess pre-cutting |
