EVD-16 DOUBLE CHAMBER VACUUM PACKER

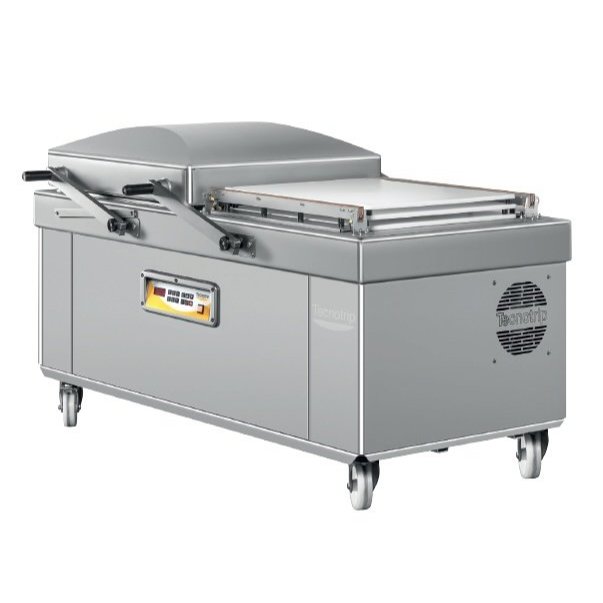

Tecnotrip EVD-16 double chamber vacuum packer

EVD-16 DOUBLE CHAMBER VACUUM PACKER

Price on request

EVD-16 double chamber vacuum packer by Tecnotrip: vacuum, sealing and vacuum + gas (MAP), chamber 2 × 820 × 825 × 225 mm, pump 150 or 250 m³/h (Busch; 150 m³/h also Rietschle).

Request a no-obligation quote.

Add to quote
Download technical data sheet (PDF, 175 KB)
Request a quote on WhatsApp

Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.

SKU: EVD-16 Categories: , ,

Description

EVD-16 double chamber vacuum packer

The EVD-16 is a manual double chamber vacuum packer with large 820 × 825 mm chambers, for large production runs that need speed, flexibility and advanced control of vacuum and gas.

Ideal for cured sausage and fish factories, cheese makers, packing centres and caterers with medium and large production runs.

Advantages

  • Packing: Vacuum, sealing and vacuum + gas (MAP).
  • Chamber: 2 × 820 × 825 × 225 mm.
  • Sealing bars: 2 bars of 655 mm in each chamber.
  • Sealing types: Single, single + excess trimming and double (individually adjustable).
  • Vacuum pump: 150 or 250 m³/h (Busch; 150 m³/h also Rietschle).
  • Control panel: Digital sensor-controlled programmer, 30 programs.
  • Format: weight 720 kg, power supply 220/380 V · 50/60 Hz · three-phase.
  • Easy cleaning and maintenance.

Tecnotrip reference: EVD-16.

See also our other double chamber vacuum packers.

Technical data sheet · EVD-16 DOUBLE CHAMBER VACUUM PACKER

PDF · 175 KB · Main data, models and dimensions.

Open PDFDownload

Specifications

Weight 720 kg
Model

EVD-16
Brand

Tecnotrip
Type

Double chamber vacuum packer
Packing

Vacuum, sealing and vacuum + gas (MAP)
Chamber

2 × 820 × 825 × 225 mm
Sealing bars

2 bars of 655 mm in each chamber
Sealing types

Single, single + excess trimming and double (individually adjustable)
Vacuum pump

150 or 250 m³/h (Busch; 150 m³/h also Rietschle)
Control panel

Digital sensor-controlled programmer, 30 programs
Power

4 / 7.5 kW
Power supply

220/380 V · 50/60 Hz · three-phase
