EVD-19-11 DOUBLE CHAMBER VACUUM PACKER

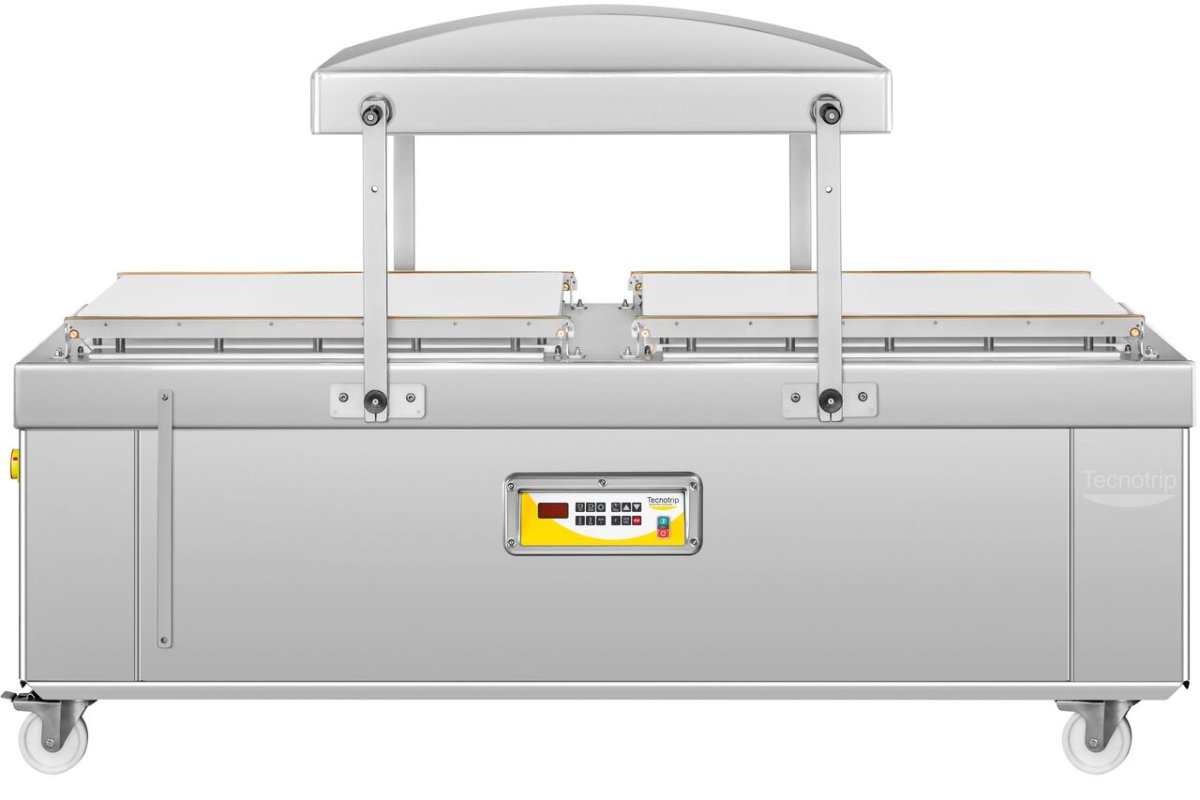

Tecnotrip EVD-19-11 double chamber vacuum packer

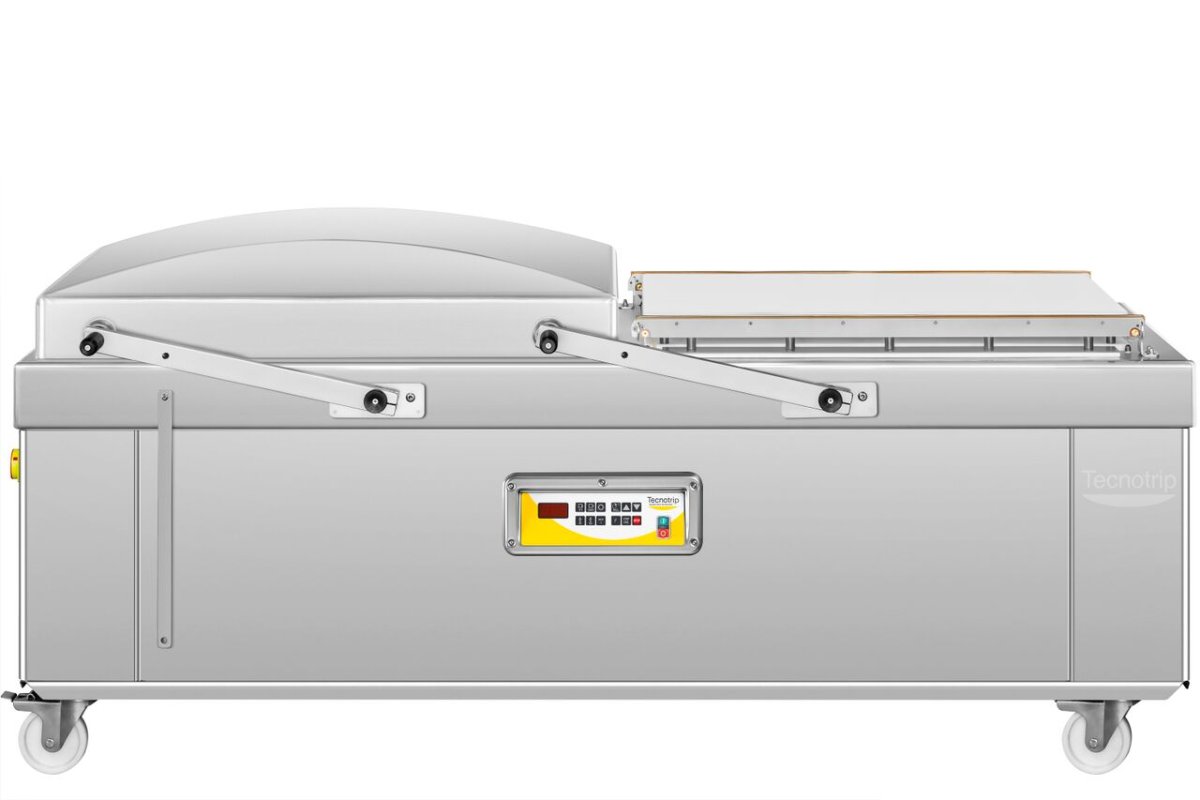

Tecnotrip EVD-19-11 double chamber vacuum packer, view 2

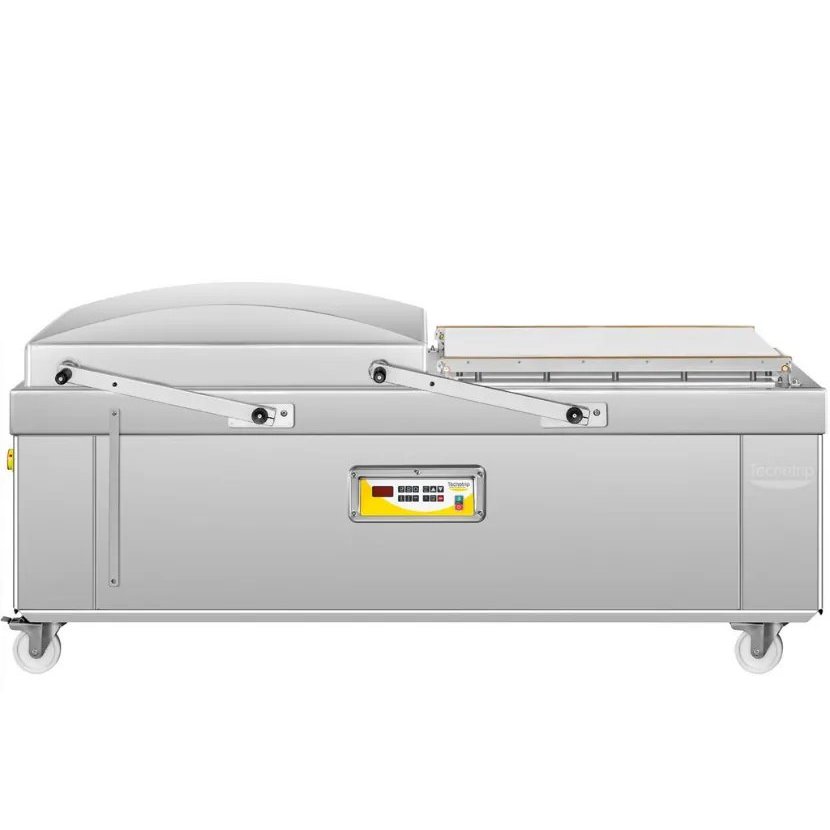

Tecnotrip EVD-19-11 double chamber vacuum packer, view 3

EVD-19-11 DOUBLE CHAMBER VACUUM PACKER

Price on request

EVD-19-11 double chamber vacuum packer by Tecnotrip: vacuum, sealing and vacuum + gas (MAP), chamber 1255 × 925 × 245 mm, pump Busch 300 m³/h.

Request a no-obligation quote.

Add to quote
Download technical data sheet (PDF, 155 KB)
Request a quote on WhatsApp

Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.

SKU: EVD-19-11 Categories: , ,

Description

EVD-19-11 double chamber vacuum packer

The EVD-19-11 is Tecnotrip’s largest double chamber vacuum packer, with 1255 × 925 mm chambers, a 300 m³/h pump and automatic lid, for very large and demanding production runs.

Ideal for plants with very large production runs working with all kinds of packs and products.

Advantages

  • Packing: Vacuum, sealing and vacuum + gas (MAP).
  • Chamber: 1255 × 925 × 245 mm.
  • Sealing bars: 2 bars in each chamber, two configurations.
  • Sealing types: Single, single + excess trimming and double (individually adjustable).
  • Vacuum pump: Busch 300 m³/h.
  • Control panel: Digital sensor-controlled programmer, 30 programs.
  • Options: Automatic lid.
  • Format: external dimensions 2540 × 1060 × 1135 mm, weight 1000 kg, power supply 220/380 V · 50/60 Hz · three-phase.
  • Prepared for inert gas flushing (MAP).
  • Easy cleaning and maintenance.

Tecnotrip reference: EVD-19-11.

See also our other double chamber vacuum packers.

Technical data sheet · EVD-19-11 DOUBLE CHAMBER VACUUM PACKER

PDF · 155 KB · Main data, models and dimensions.

Open PDFDownload

Specifications

Weight 1000 kg
Model

EVD-19-11
Brand

Tecnotrip
Type

Double chamber vacuum packer
Packing

Vacuum, sealing and vacuum + gas (MAP)
External dimensions

2540 × 1060 × 1135 mm
Chamber

1255 × 925 × 245 mm
Sealing bars

2 bars in each chamber, two configurations
Sealing types

Single, single + excess trimming and double (individually adjustable)
Vacuum pump

Busch 300 m³/h
Control panel

Digital sensor-controlled programmer, 30 programs
Power supply

220/380 V · 50/60 Hz · three-phase
Options

Automatic lid
