Mainca CM-14 benchtop bowl cutter with a 14-litre bowl (± 9 kg), two knife speeds combinable with two bowl speeds and a head for 3 or 6 knives. Designed for pilot plants and artisan production.
Request your no-obligation quote.
MAINCA CM-14 BOWL CUTTER
Price on request
Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.
Description

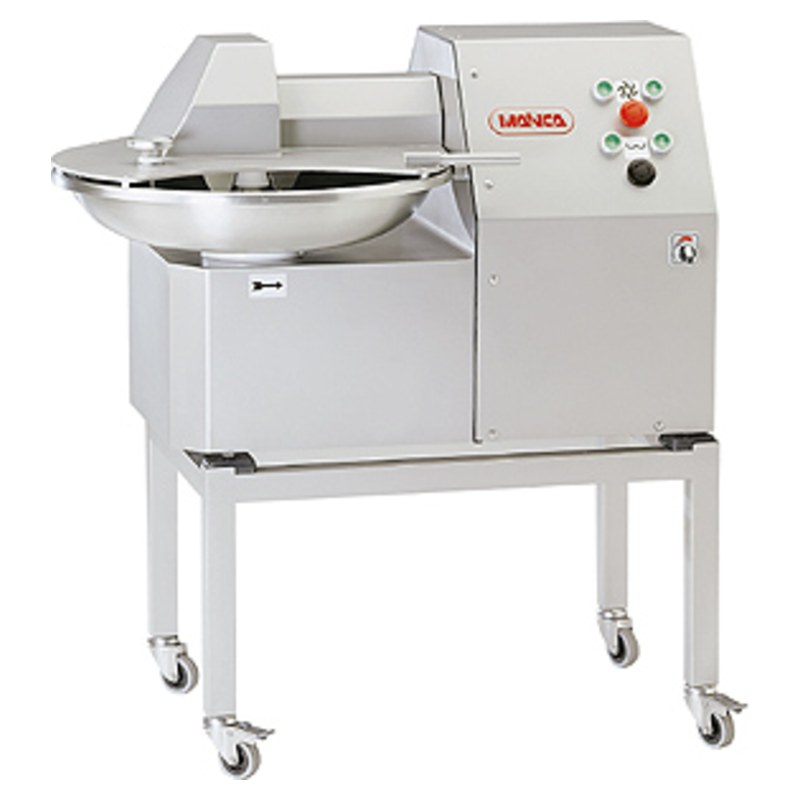

Mainca CM-14 benchtop bowl cutter, 14 litres
The CM-14 is Mainca’s most compact bowl cutter: it works on a bench with a 14-litre bowl (± 9 kg) and takes you from a coarse cut to a fine emulsion on the same machine. It is the right size for pilot plants, workshops and artisan production.
It has two independent motors, one for the knives and one for the bowl, each with two speeds that can be combined: knives at 1,500 or 3,000 rpm and bowl at 10 or 20 rpm. This lets you match the cut to each recipe and keep better control of the batter temperature.
Advantages

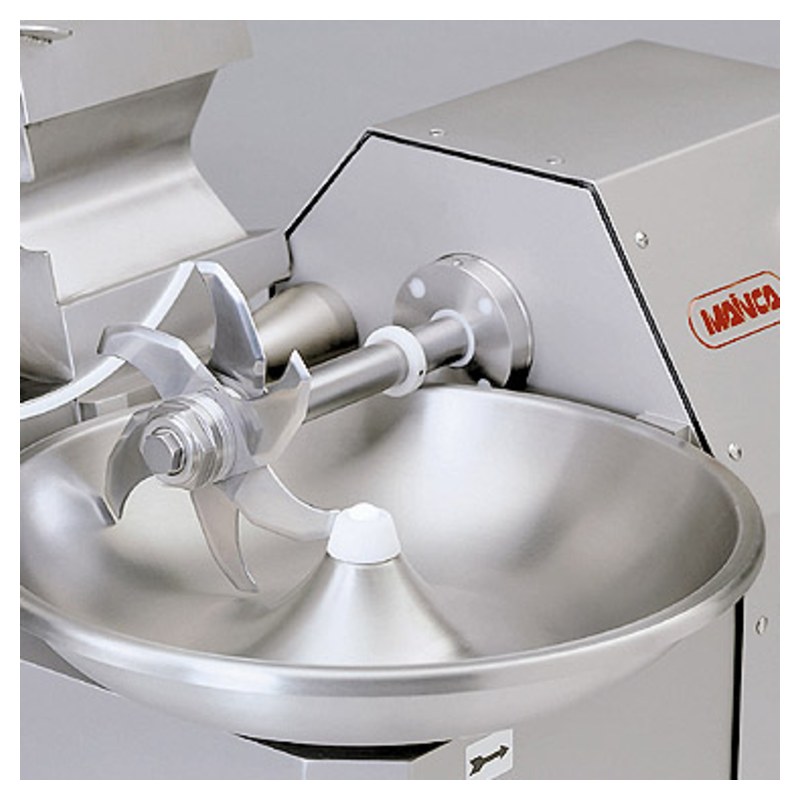

- Head for 3 or 6 knives; supplied with 3.
- Clean cut and homogeneous batter, with high absorption capacity in emulsions. Suitable for frozen meat.
- Safety: the knives brake when the lid is lifted, emergency stop button and thermally protected motors.
- Switch for emptying and washing the bowl and a thermometer to monitor product temperature.
- AISI 304 stainless steel construction. Base footprint 700 × 480 mm, net weight 110 kg.
Versions and options
Three-phase in three voltages: 1CM14R (400 V, 50 Hz), 1CM14O (230 V, 50 Hz) and 1CM14J (200 V, 50/60 Hz). Options: 6-knife set, transparent soundproof tilting lid, complete additional 3-knife head and wheeled stand of 80 × 45 × 42 cm.
If you need more capacity, see the CM-21 (22 litres) and the CM-41 (40 litres).
José Bernad is an authorised Mainca distributor: request your no-obligation quote.
Specifications
| Model | CM-14 |
|---|---|
| Brand | Mainca |
| Type | Benchtop bowl cutter |
| Bowl capacity | 14 l (± 9 kg) |
| Knife motor | 2.5 / 3.5 HP · 1.84 / 2.57 kW |
| Knife speed | 1,500 / 3,000 rpm |
| Bowl motor | 0.12 / 0.20 HP · 0.09 / 0.15 kW |
| Bowl speed | 10 / 20 rpm |
| Knives | 3 as standard · head for 3 or 6 |
| Thermometer | Included |
| Power supply | Three-phase 400 V, 230 V or 200 V (depending on version) |
| Versions (Mainca ref.) | 1CM14R 400 V 50 Hz · 1CM14O 230 V 50 Hz · 1CM14J 200 V 50/60 Hz |
| Net weight | 110 kg |
| Base footprint | 700 × 480 mm |
| Construction | AISI 304 stainless steel |
| Safety | Knife brake when the lid is lifted · emergency stop button · thermally protected motors |
| Options | 6 knives · transparent soundproof tilting lid · additional 3-knife head · wheeled stand (80 × 45 × 42 cm) |
