Mainca CM-41 floor-standing bowl cutter with a 40-litre bowl (± 25 kg), a 6.62 / 8.09 kW two-speed knife motor and two combinable bowl speeds. Robust and reliable for medium production.
Request your no-obligation quote.
MAINCA CM-41 BOWL CUTTER
Price on request
Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.
Description
Mainca CM-41 40-litre bowl cutter for medium production

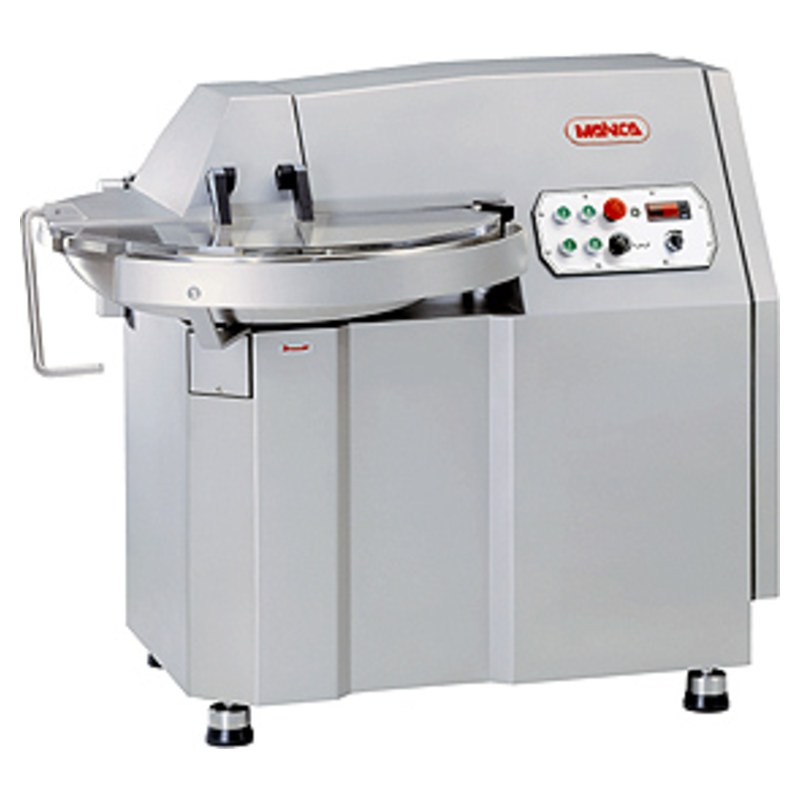

The CM-41 is Mainca’s standard bowl cutter for medium production: a floor-standing machine with a 40-litre bowl (± 25 kg) that works from a coarse cut to a fine emulsion.
The knife motor delivers 9 / 11 HP (6.62 / 8.09 kW) at 1,500 or 3,000 rpm, and the bowl turns at 10 or 20 rpm. The four combinations let you fine-tune the cut and control batter temperature.
Advantages

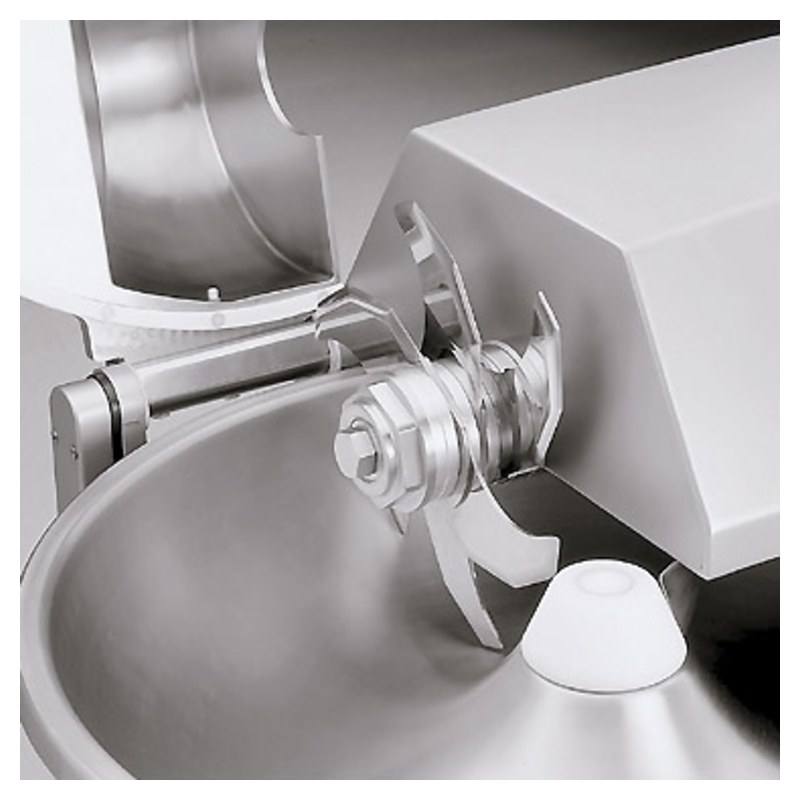

- Head for 3 or 6 knives; supplied with 3.
- Clean cut and homogeneous batter, with high absorption capacity in emulsions. Suitable for frozen meat.
- Safety: the knives brake when the lid is lifted, emergency stop button and thermally protected motors.
- Switch for emptying and washing the bowl and a digital thermometer.
- AISI 304 stainless steel construction. Base footprint 900 × 640 mm, net weight 320 kg.
Versions and options
Three-phase in three voltages: 1CM41R (400 V, 50 Hz), 1CM41O (230 V, 50 Hz) and 1CM41VT (200 V, 50 Hz). Options: 6-knife set and complete additional 3-knife head.
If you need variable knife speed and mixing speeds, see the CM-41S, with the same 40-litre bowl. For more volume, the CM-75S (75 litres).
José Bernad is an authorised Mainca distributor: request your no-obligation quote.
Specifications
| Model | CM-41 |
|---|---|
| Brand | Mainca |
| Type | Floor-standing bowl cutter |
| Bowl capacity | 40 l (± 25 kg) |
| Knife motor | 9 / 11 HP · 6.62 / 8.09 kW |
| Knife speed | 1,500 / 3,000 rpm |
| Bowl motor | 0.47 / 0.68 HP · 0.35 / 0.50 kW |
| Bowl speed | 10 / 20 rpm |
| Knives | 3 as standard · head for 3 or 6 |
| Thermometer | Digital |
| Power supply | Three-phase 400 V, 230 V or 200 V (depending on version) |
| Versions (Mainca ref.) | 1CM41R 400 V 50 Hz · 1CM41O 230 V 50 Hz · 1CM41VT 200 V 50 Hz |
| Net weight | 320 kg |
| Base footprint | 900 × 640 mm |
| Construction | AISI 304 stainless steel |
| Safety | Knife brake when the lid is lifted · emergency stop button · thermally protected motors |
| Options | 6 knives · additional 3-knife head |
