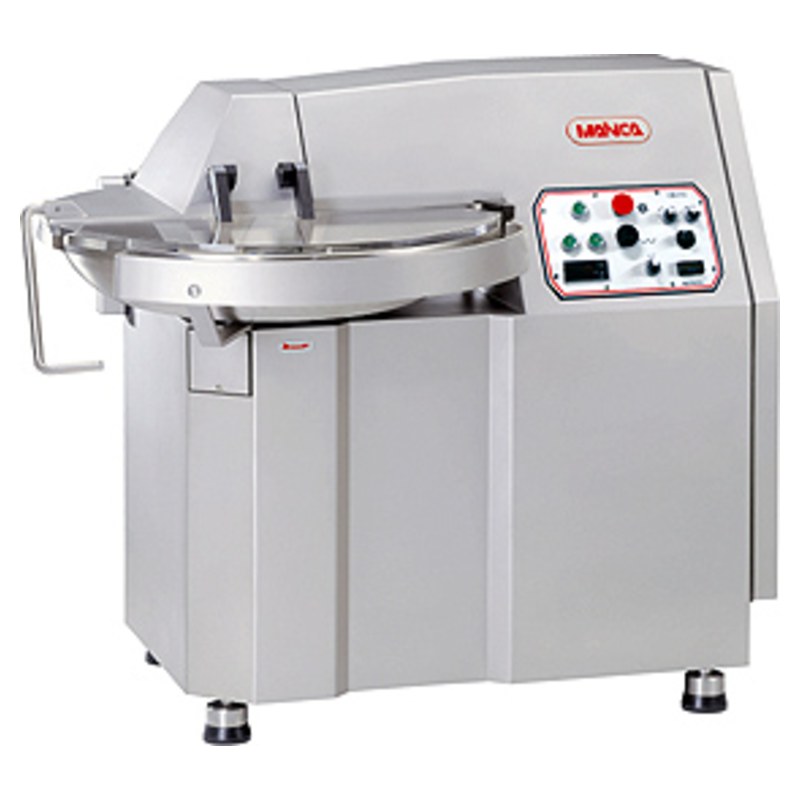

Mainca CM-41S bowl cutter with a 40-litre bowl (± 25 kg) and variable knife speed from 1,000 to 3,600 rpm (12.5 HP with frequency inverter), two bowl speeds and two reversible mixing speeds. Upgraded version of the CM-41.
Request your no-obligation quote.
Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.
The CM-41S is the upgraded version of the CM-41: the same 40-litre bowl (± 25 kg) and base, but with the knife motor driven by a frequency inverter. Cutting speed is adjusted continuously between 1,000 and 3,600 rpm to fine-tune each recipe.
Besides cutting, it offers two reversible mixing speeds, 80 and 150 rpm, which turn the knives forwards or backwards to mix without cutting the product. The bowl turns at 10 or 20 rpm.
Three-phase in three voltages: 1CM41RF (400 V, 50 Hz), 1CM41OF (230 V, 50 Hz) and 1CM41VF (200 V, 50 Hz). Options: 6-knife set and complete additional 3-knife head.
For larger production, the CM-75S offers a 75-litre bowl and up to 5,000 rpm.
José Bernad is an authorised Mainca distributor: request your no-obligation quote.
| Model | CM-41S |
|---|---|
| Brand | Mainca |
| Type | Floor-standing variable-speed bowl cutter |
| Bowl capacity | 40 l (± 25 kg) |
| Knife motor | 12.5 HP · 9.19 kW with frequency inverter |
| Knife speed | Variable from 1,000 to 3,600 rpm |
| Mixing | 2 reversible speeds: 80 and 150 rpm |
| Bowl motor | 0.47 / 0.68 HP · 0.35 / 0.50 kW |
| Bowl speed | 10 / 20 rpm |

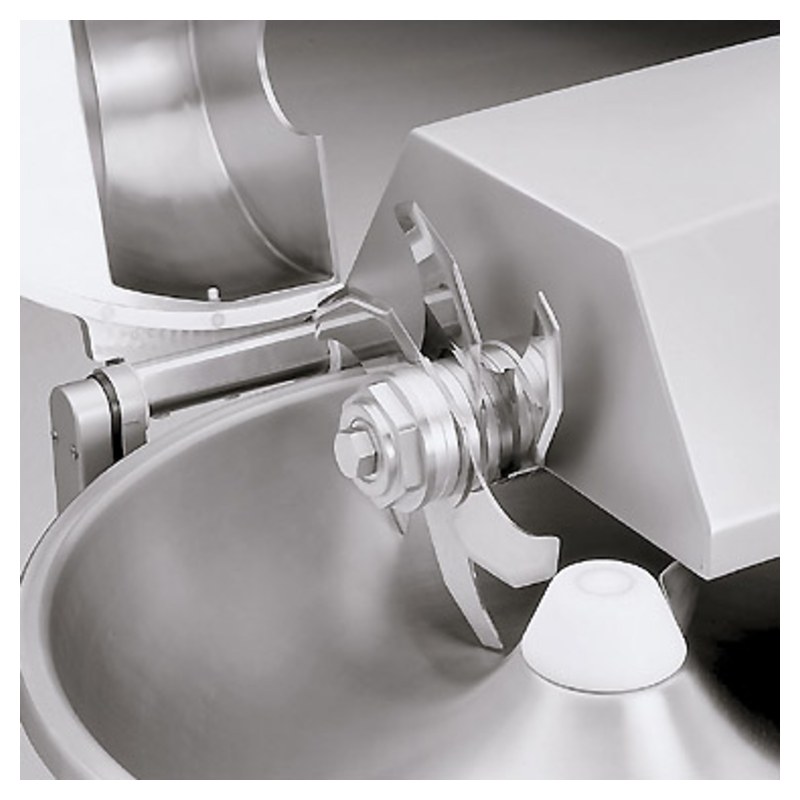

| Knives | 3 as standard · head for 3 or 6 |
| Thermometer | Digital |
| Power supply | Three-phase 400 V, 230 V or 200 V (depending on version) |
| Versions (Mainca ref.) | 1CM41RF 400 V 50 Hz · 1CM41OF 230 V 50 Hz · 1CM41VF 200 V 50 Hz |
| Net weight | 330 kg |
| Base footprint | 900 × 640 mm |
| Construction | AISI 304 stainless steel |

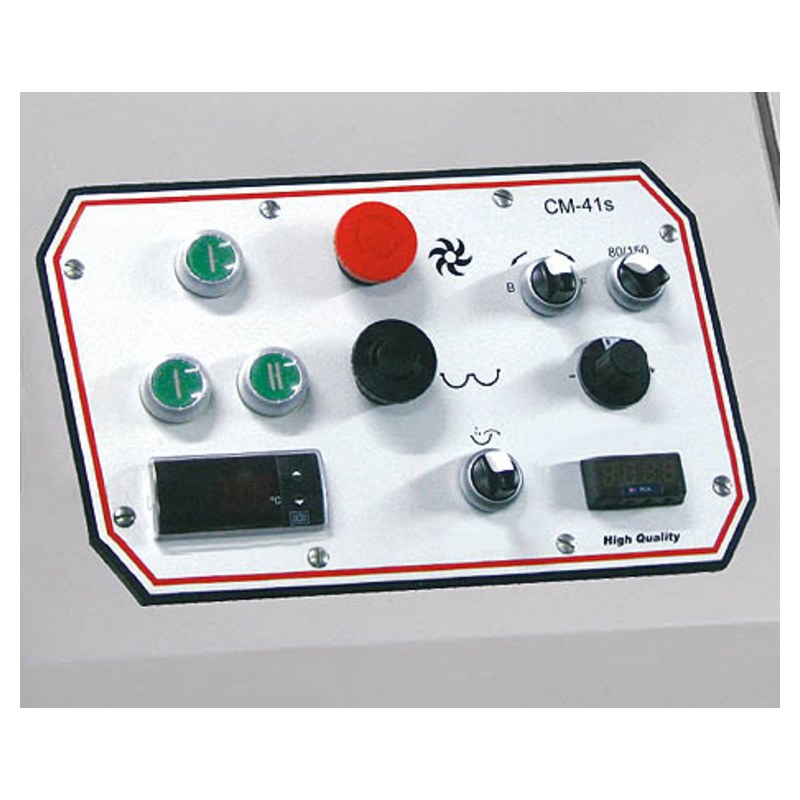

| Safety | Knife brake when the lid is lifted · emergency stop button · thermally protected motors |
| Options | 6 knives · additional 3-knife head |
